Removal

AUDIO / VIDEO: REAR DOOR SPEAKER: REMOVAL

REMOVAL

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG Disassembly
2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL Disassembly
3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly
4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP Disassembly
5. REMOVE REAR SPEAKER ASSEMBLY

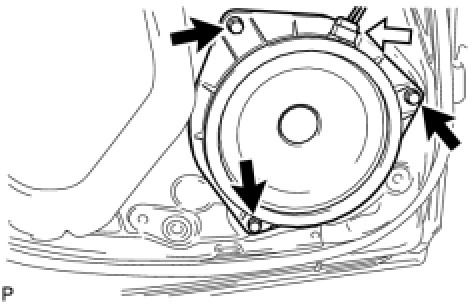

(a) Disconnect the connector.
(b) Remove the 3 bolts and the rear speaker assembly.
NOTE:
Do not touch the cone part of the speaker.

6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

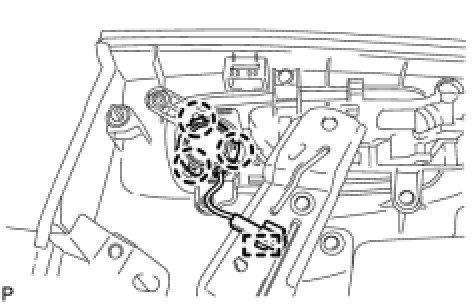

(a) Disengage the speaker connector clamp.
(b) Disengage the 3 claws and remove the rear No. 2 speaker assembly.
NOTE:
Do not touch the cone part of the speaker.

7. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)





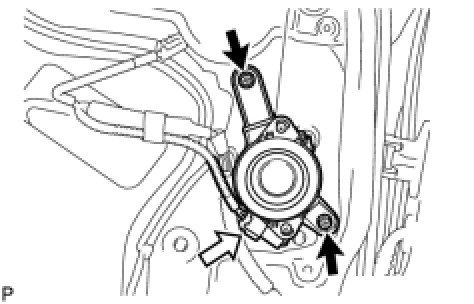

(a) Disconnect the connector.
(b) Remove the 2 bolts and the rear No. 3 speaker assembly.
NOTE:
Do not touch the cone part of the speaker.
