AUDIO / VIDEO: REAR DOOR SPEAKER: INSTALLATION

INSTALLATION

1. INSTALL REAR SPEAKER ASSEMBLY

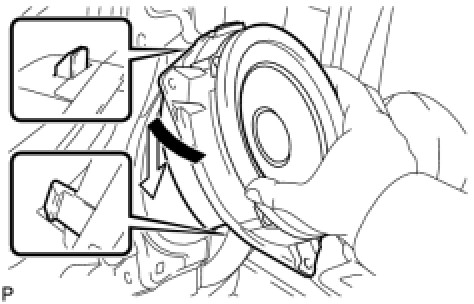

(a) Engage the 2 claws as shown in the illustration to temporarily install the rear speaker assembly.

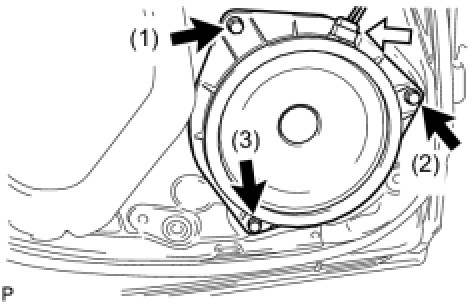

(b) Install the rear speaker assembly with the 3 bolts.
HINT: Install the bolts in the order shown in the illustration.

(c) Connect the connector.
2. INSTALL REAR NO. 2 SPEAKER ASSEMBLY





(a) Engage the 3 claws and install the rear No. 2 speaker assembly.
(b) Engage the speaker connector clamp.
3. INSTALL REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)

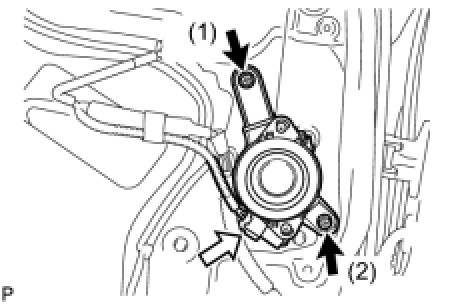

(a) Install the rear No. 3 speaker assembly with the 2 bolts.
HINT: Install the bolts in the order shown in the illustration.

(b) Connect the connector.
4. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP Reassembly
5. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY Reassembly
6. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL Reassembly
7. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG Reassembly
