Removal








AUDIO / VIDEO: INSTRUMENT PANEL SPEAKER: REMOVAL

REMOVAL

1. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY Removal
2. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY

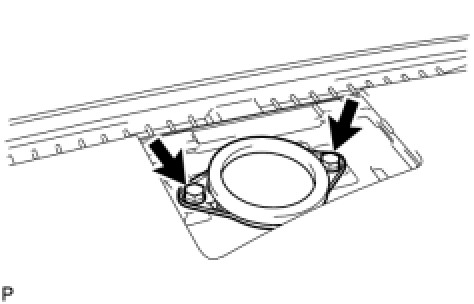

(a) Remove the 2 bolts.
(b) Lift the front stereo component speaker assembly and disconnect the connector to remove the speaker assembly.
NOTE:
Do not touch the cone part of the speaker.
