AUDIO / VIDEO: FRONT DOOR SPEAKER: INSTALLATION

INSTALLATION

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

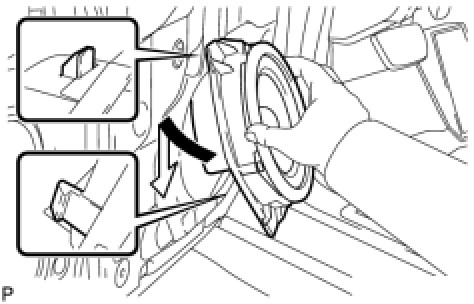

(a) Engage the 2 claws as shown in the illustration to temporarily install the front No. 1 speaker assembly.

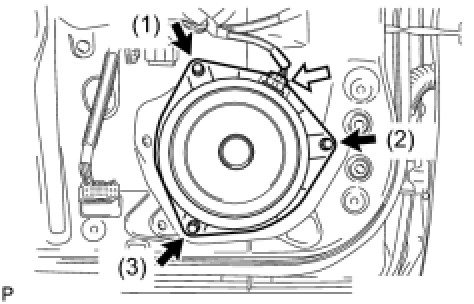

(b) Install the front No. 1 speaker assembly with the 3 bolts.
HINT: Install the bolts in the order shown in the illustration.

(c) Connect the connector.
2. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY





(a) Install the front No. 2 speaker assembly to the cover.





(b) Engage the 3 claws and install the cover.





(c) Install the front No. 2 speaker assembly with cover with the 3 screws.
(d) Engage the 2 clamps.
3. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY

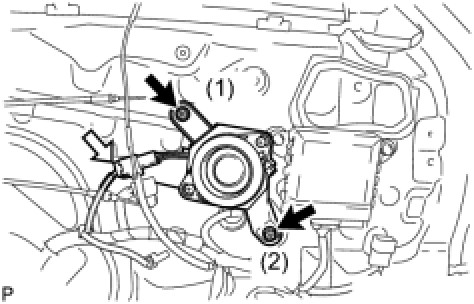

(a) Install the front No. 3 speaker assembly with the 2 bolts.
HINT: Install the bolts in the order shown in the illustration.

(b) Connect the connector.
4. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP Reassembly
5. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly
6. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL Reassembly
7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG Reassembly
