Map Disc cannot be Inserted

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Map Disc cannot be Inserted

Map Disc cannot be Inserted

INSPECTION PROCEDURE

PROCEDURE

1. CHECK MAP DISC

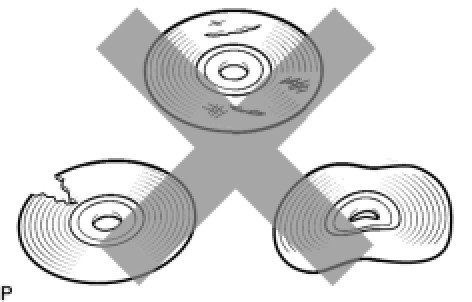

(a) Check that the map disc is not deformed or cracked.
OK:
No deformations or cracks on the map disc.
NG -- REPLACE MAP DISC
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
