Cannot Call in a Certain Place








NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Cannot Call in a Certain Place

Cannot Call in a Certain Place

INSPECTION PROCEDURE

PROCEDURE

1. CHECK SURROUNDING CONDITIONS
(a) Check if the cellular phone can make calls in a certain place.
OK:
The cellular phone can make calls.
NG -- END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)
OK -- Continue to next step.

2. CHECK RECEPTION

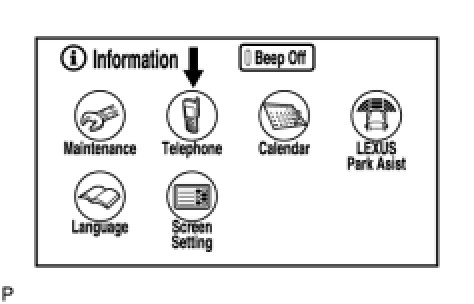

(a) Enter the "Information" screen by pressing the "INFO" switch.
(b) Select "Telephone".

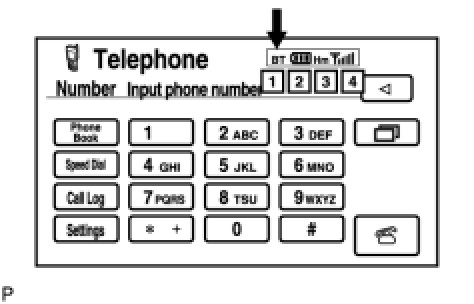

(c) Check the Bluetooth connection indicator (BT indicator).

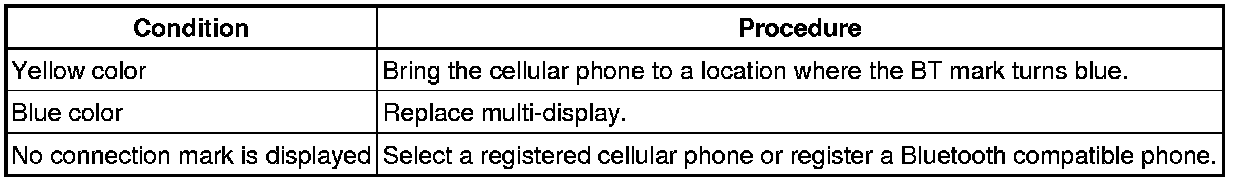

Result:






NEXT -- END
