Multi-Display Power Source Circuit

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Multi-display Power Source Circuit

Multi-display Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the multi-display.

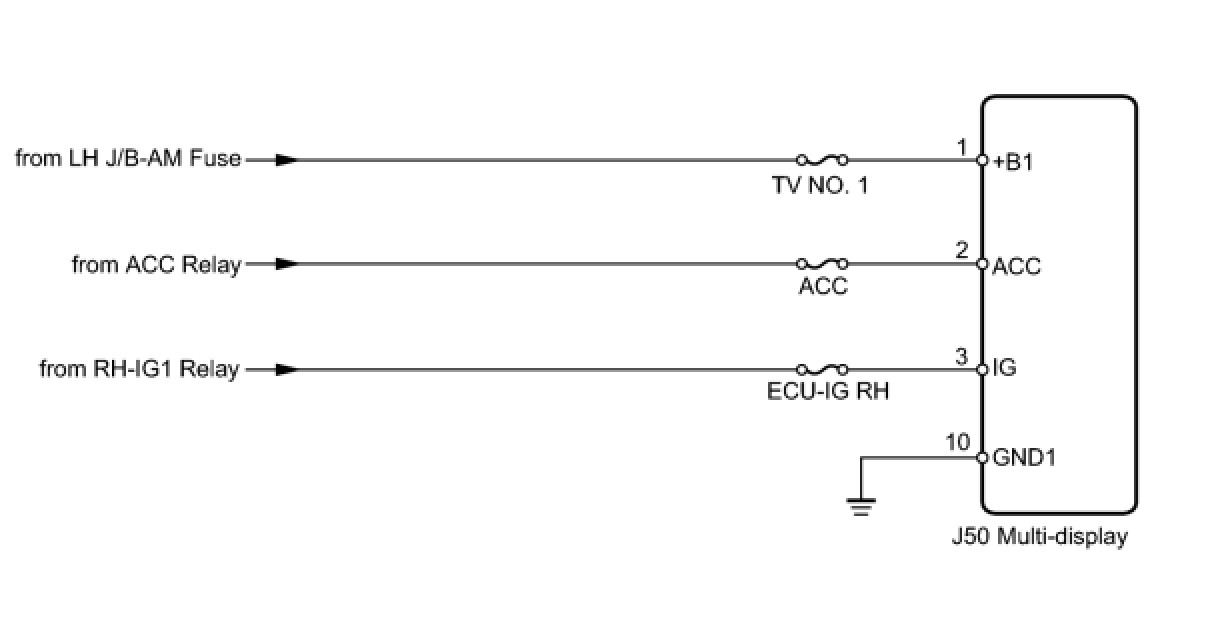

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT MULTI-DISPLAY

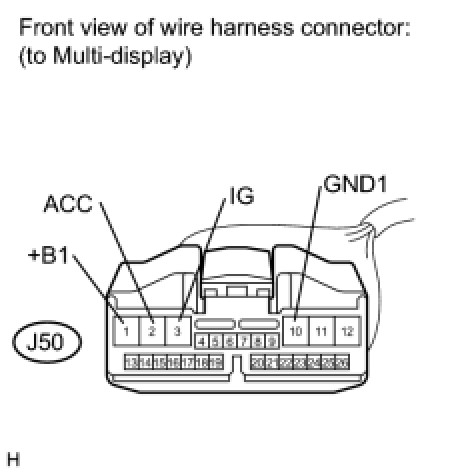

(a) Disconnect the multi-display connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

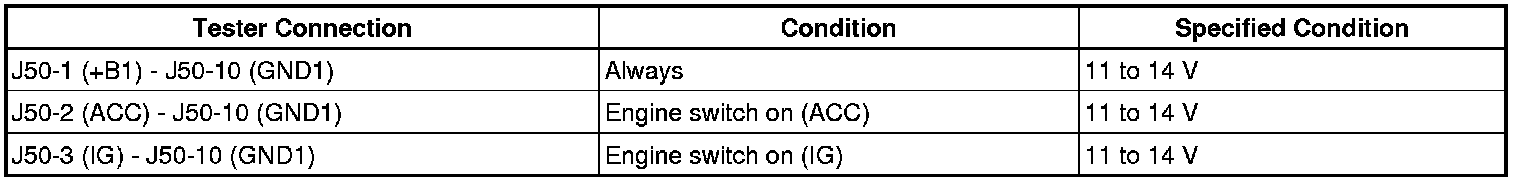

(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
