AUDIO / VIDEO: STEREO JACK ADAPTER ASSEMBLY: INSTALLATION

INSTALLATION

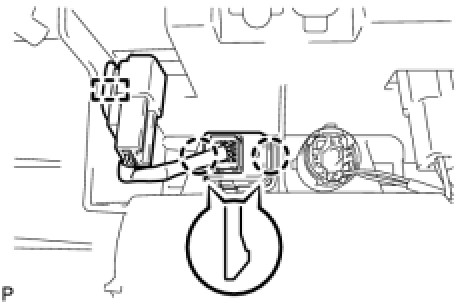

1. INSTALL AUDIO TERMINAL





(a) Engage the 2 claws and install the audio terminal.
(b) Connect the connector clamp.
2. INSTALL CONSOLE BOX Installation
3. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation
4. INSTALL REAR ASH RECEPTACLE ASSEMBLY Installation
5. INSTALL FRONT ASH RECEPTACLE ASSEMBLY Installation
6. INSTALL CONSOLE PANEL SUB-ASSEMBLY Installation
7. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH Installation
8. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH Installation
9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
