Intuitive Parking Assist System








PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: TERMINALS OF ECU

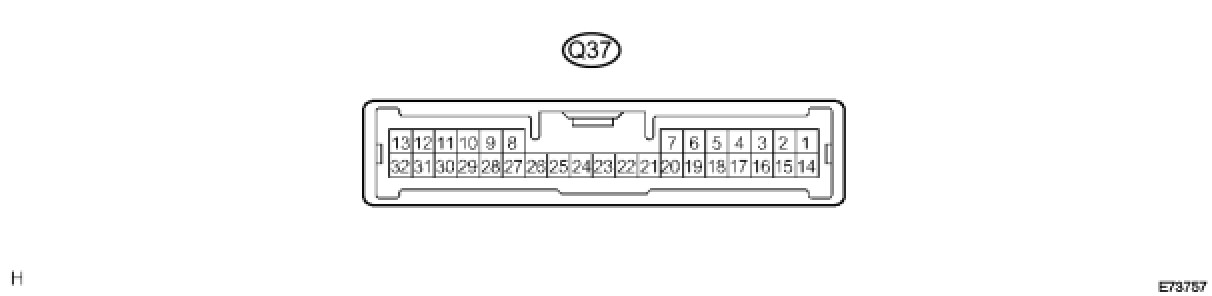

TERMINALS OF ECU

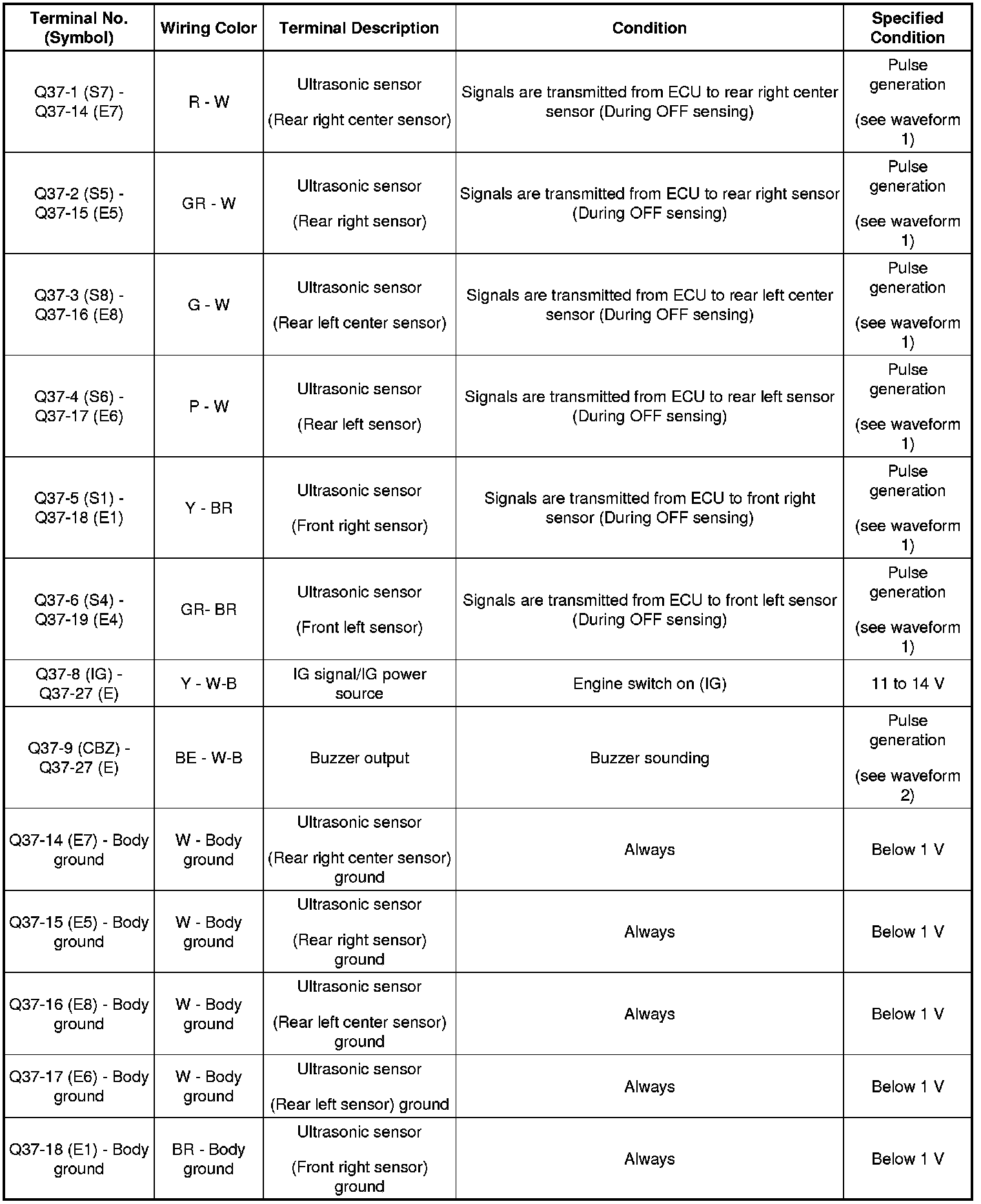

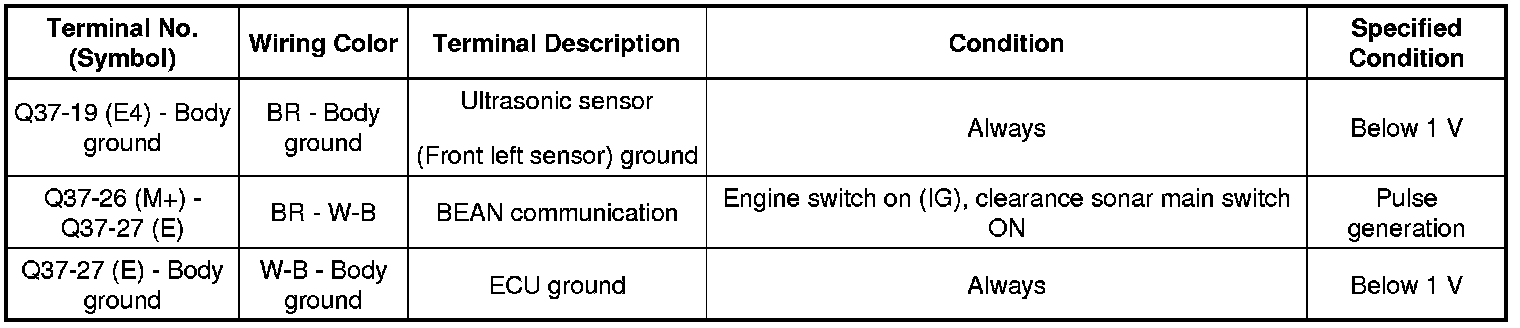

1. CLEARANCE WARNING ECU













(a) Reference

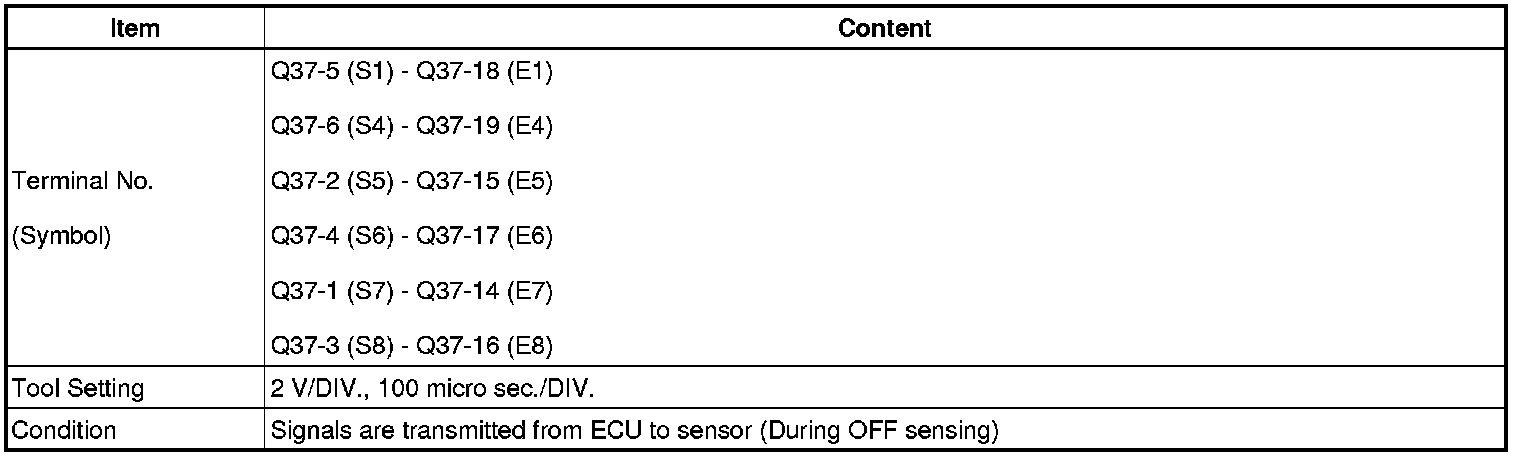

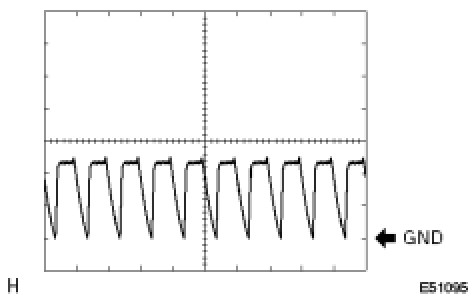

(1) Waveform 1

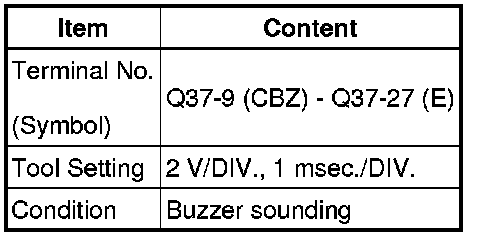

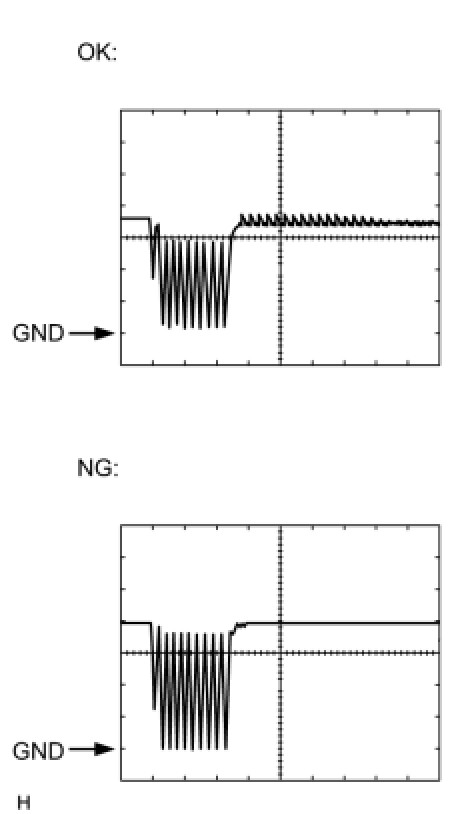

(2) Waveform 2
