Ultrasonic Sensor (for Rear Side)

PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear Side): INSPECTION

INSPECTION

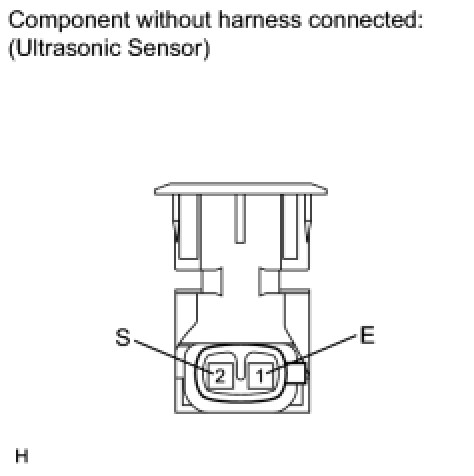

1. INSPECT ULTRASONIC SENSOR





(a) Measure the resistance according to the value(s) in the table.
Standard Resistance:





NOTE:
Set the tester to the 100 kOhms range before performing the measurement.
If the resistance is not as specified, replace the ultrasonic sensor.
