Removal

PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear Side): REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT TRIM COVER
2. REMOVE DECK SIDE TRIM BOX LH
3. REMOVE DECK SIDE TRIM BOX RH
4. REMOVE ROPE HOOK ASSEMBLY Removal
5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER Removal
6. REMOVE NO. 2 ROOM LIGHT ASSEMBLY Removal
7. REMOVE ROPE HOOK Removal
8. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK Removal
9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal
10. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal
11. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER Removal
12. REMOVE NO. 1 REAR BUMPER PLATE Removal
13. REMOVE REAR BUMPER ASSEMBLY Removal
14. REMOVE NO. 2 ULTRASONIC SENSOR
(a) Disconnect the sensor connector.

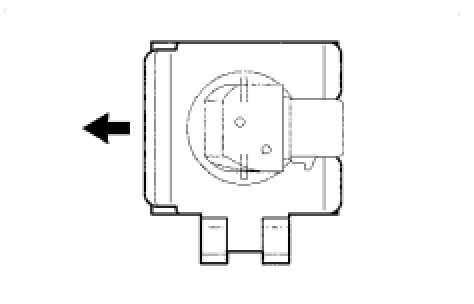

(b) Remove the sensor retainer as shown in the illustration.
(c) Remove the No. 2 ultrasonic sensor from the rear bumper.
15. REMOVE NO. 1 ULTRASONIC SENSOR
(a) Disconnect the sensor connector.

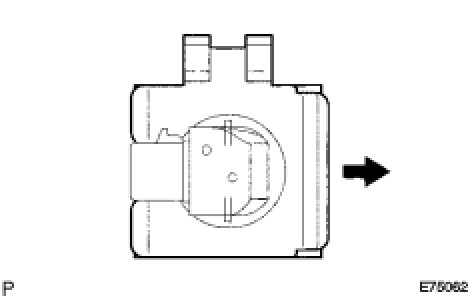

(b) Remove the sensor retainer as shown in the illustration.
(c) Remove the No. 1 ultrasonic sensor from the rear bumper.
