Antenna - Keyless Entry: Testing and Inspection

THEFT DETERRENT / KEYLESS ENTRY: ENTRY LOCK AND UNLOCK SWITCH: INSPECTION

INSPECTION

1. INSPECT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH

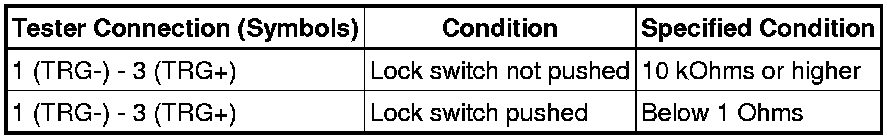

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not specified, replace the front door outside handle assembly LH.
2. INSPECT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH





(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not specified, replace the front door outside handle assembly RH.
