Antenna, Radio: Testing and Inspection

AUDIO / VIDEO: WINDOW GLASS ANTENNA WIRE: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT WINDOW GLASS ANTENNA WIRE





(a) Check for continuity of the antenna.

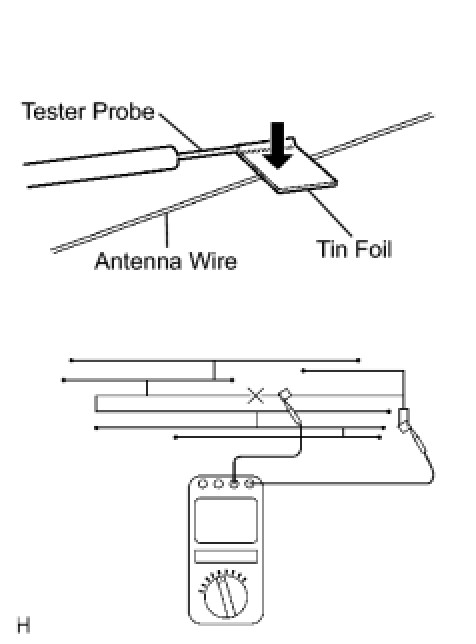

HINT: Check for continuity at the center of each antenna wire as shown in the illustration.
- When cleaning the glass, wipe it in the direction of the wire with a soft, dry cloth. Take care not to damage the wire. Do not use detergents or glass cleaners with abrasive ingredients.
- When measuring resistance, wrap a piece of tin foil around the tip of the negative probe and press the foil against the wire with your finger, as shown in the illustration.

OK:
There is continuity in the antenna.
If the result is not as specified, repair the window glass antenna wire.
