Antenna, Radio: Service and Repair

AUDIO / VIDEO: WINDOW GLASS ANTENNA WIRE: REPAIR

REPAIR

1. REPAIR WINDOW GLASS ANTENNA WIRE





(a) Clean the broken wire tips with a grease, wax and silicone remover.

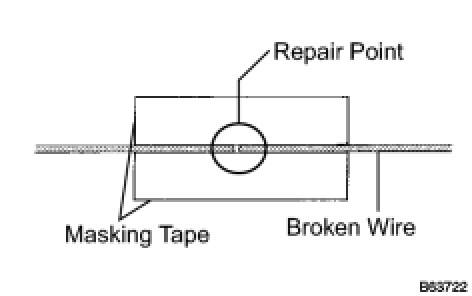

(b) Place masking tape along both sides of the wire to be repaired.
(c) Thoroughly mix the repair agent (DuPont paste No. 4817 or equivalent).

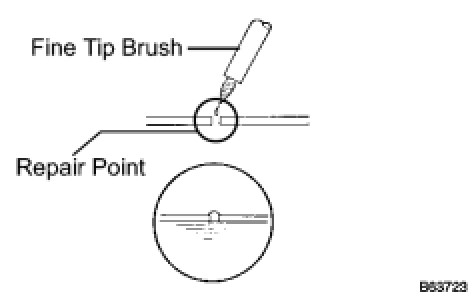

(d) Using a fine tip brush, apply a small amount of the repair agent to the wire.
(e) After a few minutes, remove the masking tape.
