Audio and Visual System

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: 63-47: High Temperature

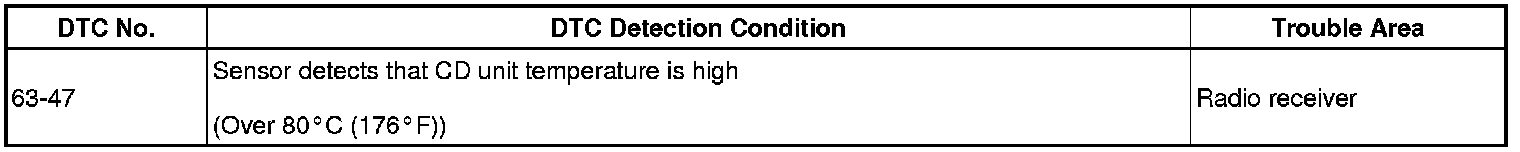

DTC 63-47 - High Temperature

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK RADIO RECEIVER
(a) Park the vehicle in a cool place.
(b) Check that the temperature of the radio receiver becomes sufficiently low, then start the engine.
(c) Clear the DTCs and recheck for DTCs.
(d) Check if DTC 63-47 is output.
OK:
DTC 63-47 is not output.
NG -- REPLACE RADIO RECEIVER
OK -- END
