Audio and Visual System

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: 63-44: CD Abnormal

DTC 63-44 - CD Abnormal

DTC 63-48 - Excess Current

DTC 63-50 - Tray Insertion / Ejection Error

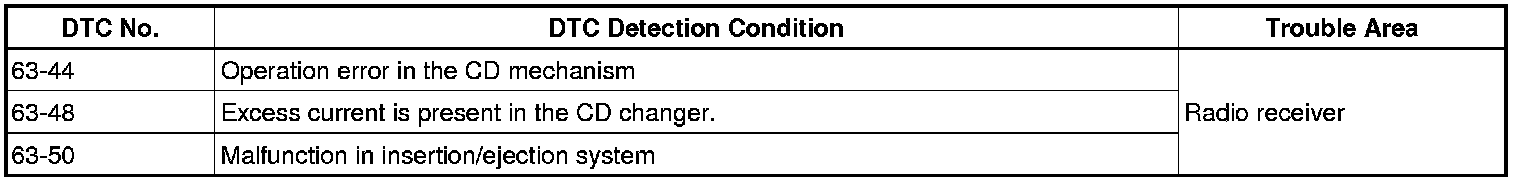

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CLEAR DTC
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.

2. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble occurs again.
HINT: If DTCs are detected frequently, replace the radio receiver.

OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER
OK -- END
