DTC 45-50

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 45-44: DVD Malfunction

DTC 45-44 - DVD Malfunction

DTC 45-48 - Excess Current

DTC 45-50 - Tray Insertion / Ejection Error

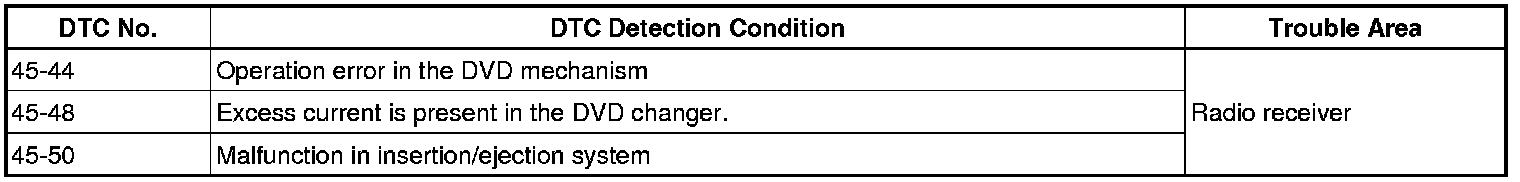

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CLEAR DTC
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.

2. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble occurs again.
HINT: If DTCs are detected frequently, replace the radio receiver.

OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER
OK -- END
