Pre-Collision System

PRE-COLLISION: PRE-COLLISION SYSTEM

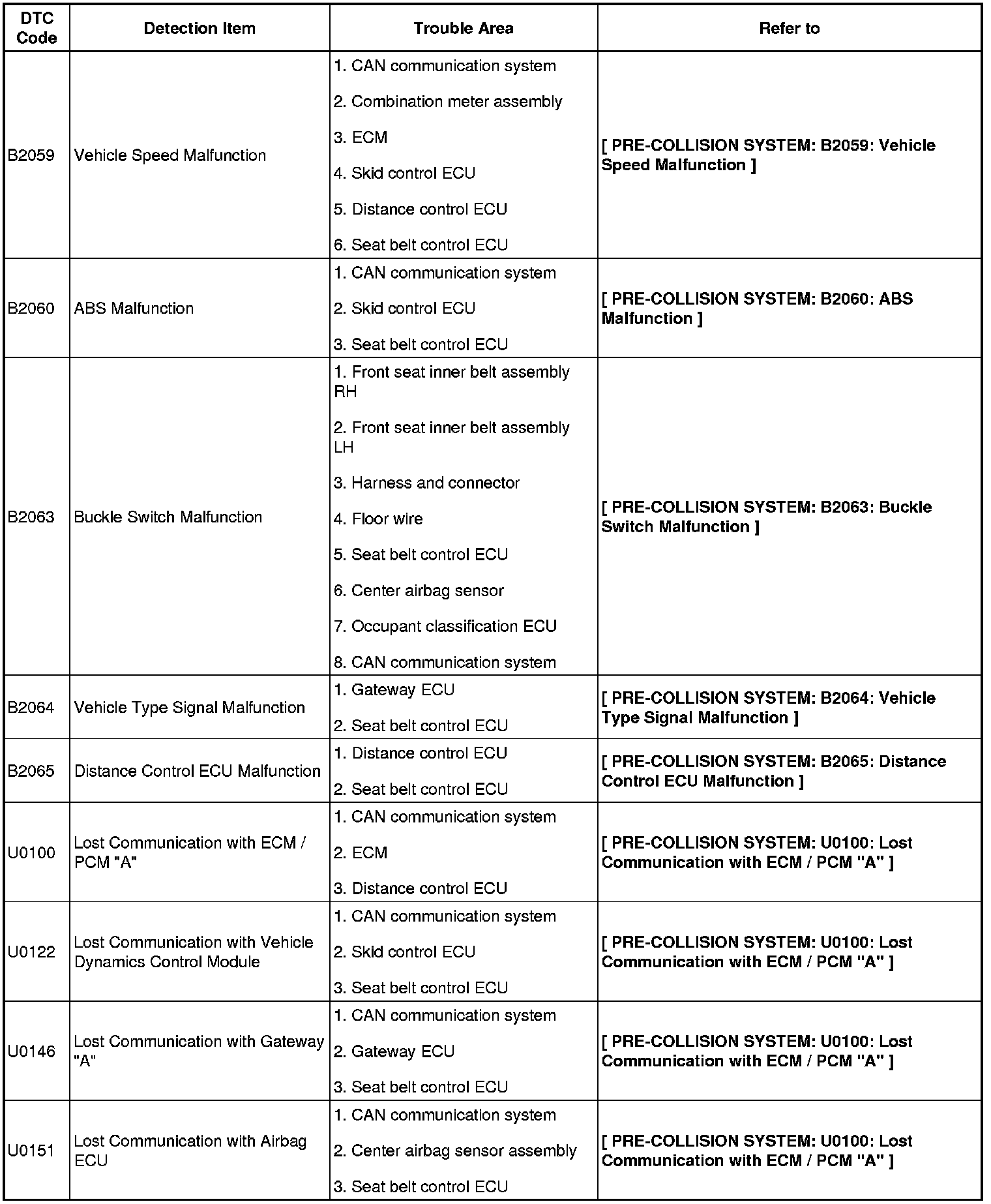

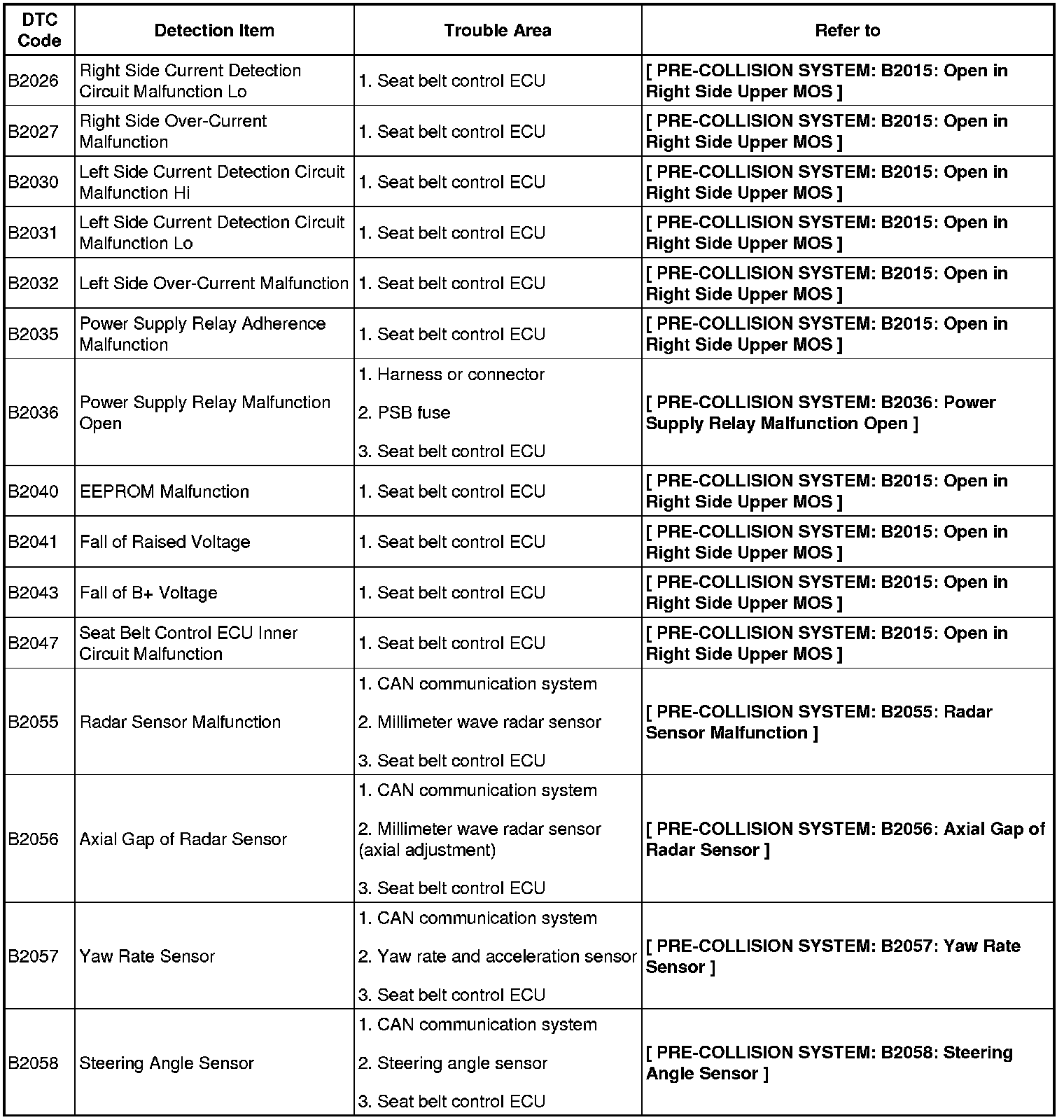

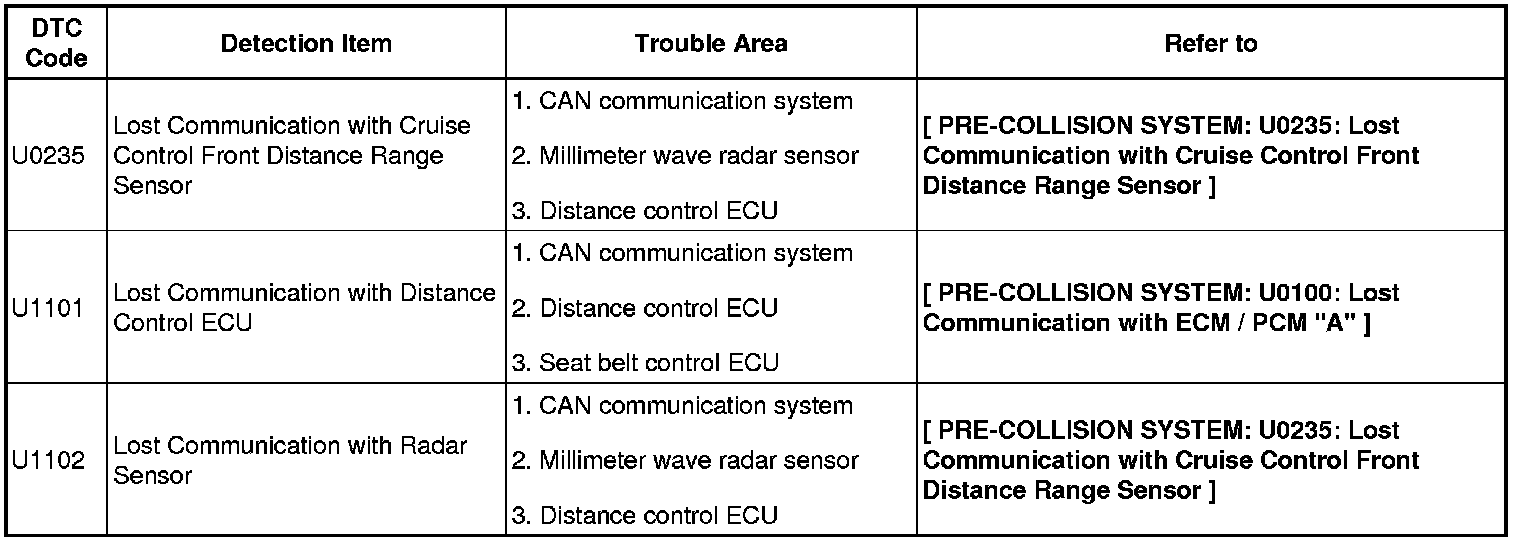

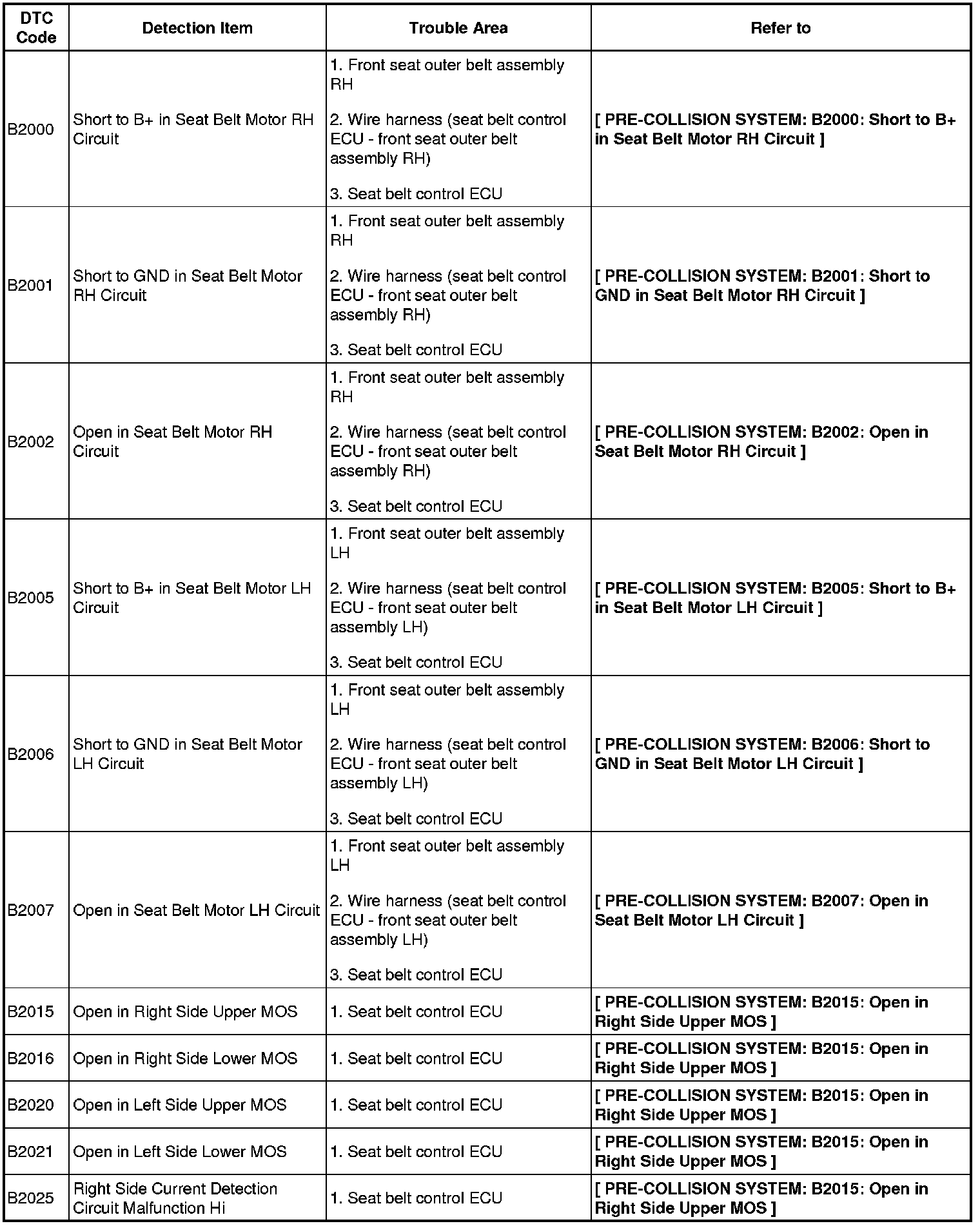

DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code in the table below and proceed to the appropriate procedure.

Pre-Collision System
