DTC P0351: Ignition Coil "A" Primary / Secondary Circuit; DTC P0352: Ignition Coil "B" Primary / Secondary Circuit; DTC P0353: Ignition Coil "C" Primary / Secondary Circuit; DTC P0354: Ignition Coil "D" Primary / Secondary Circuit; DTC P0355: Ignition Coil "E" Primary / Secondary Circuit; DTC P0356: Ignition Coil "F" Primary / Secondary Circuit: Wiring Diagram

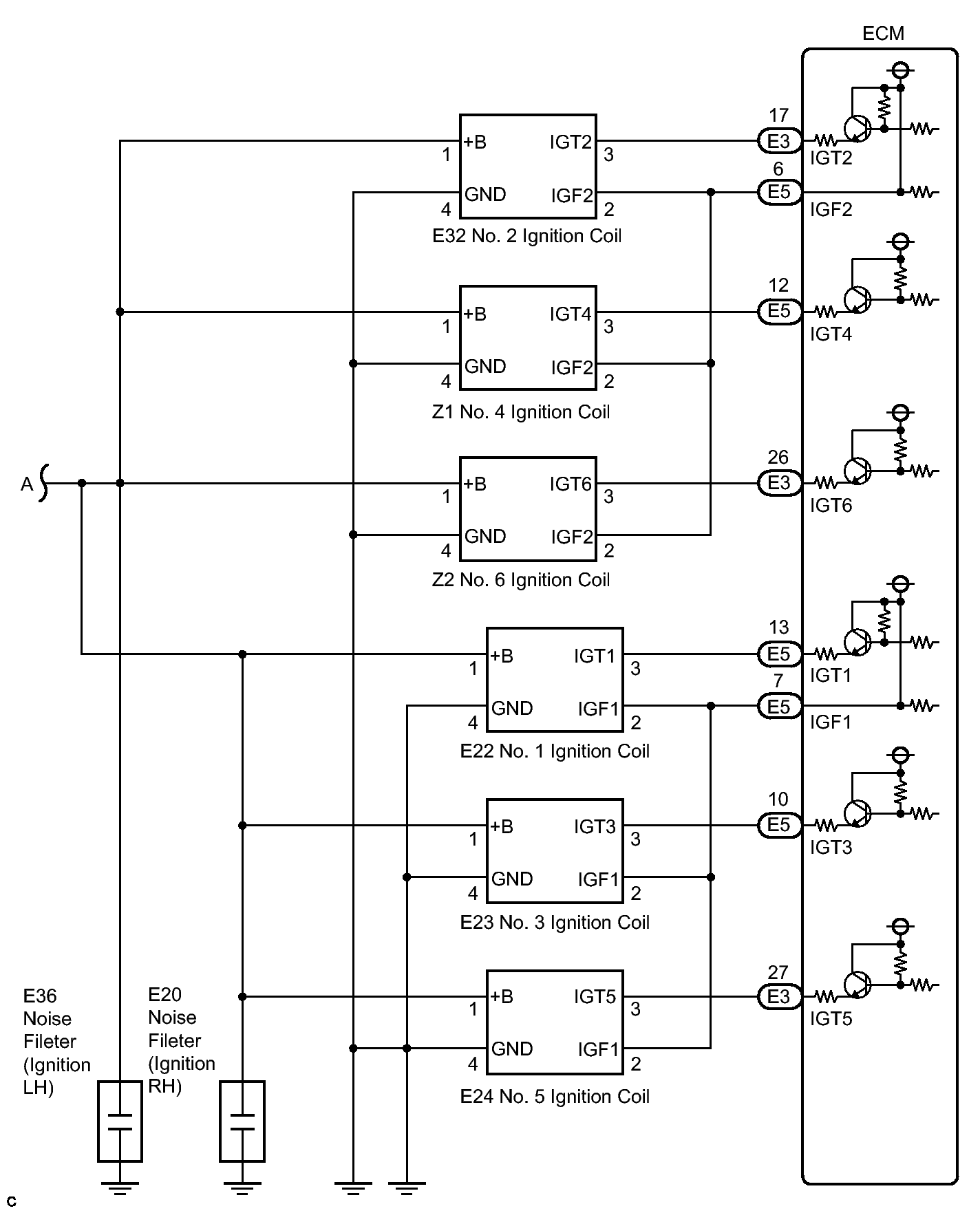

Fig 1: Ignition Coil - Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

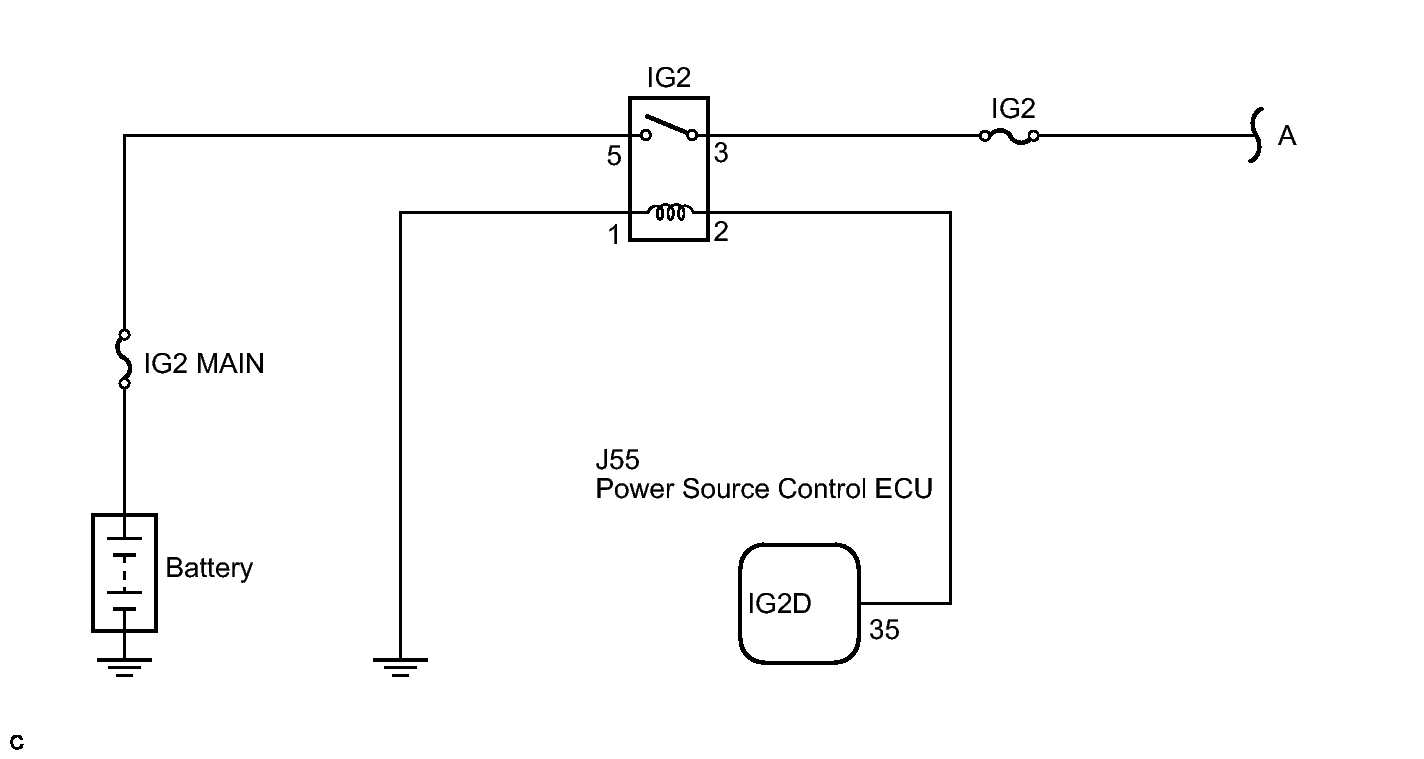

Fig 2: Ignition Coil - Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
