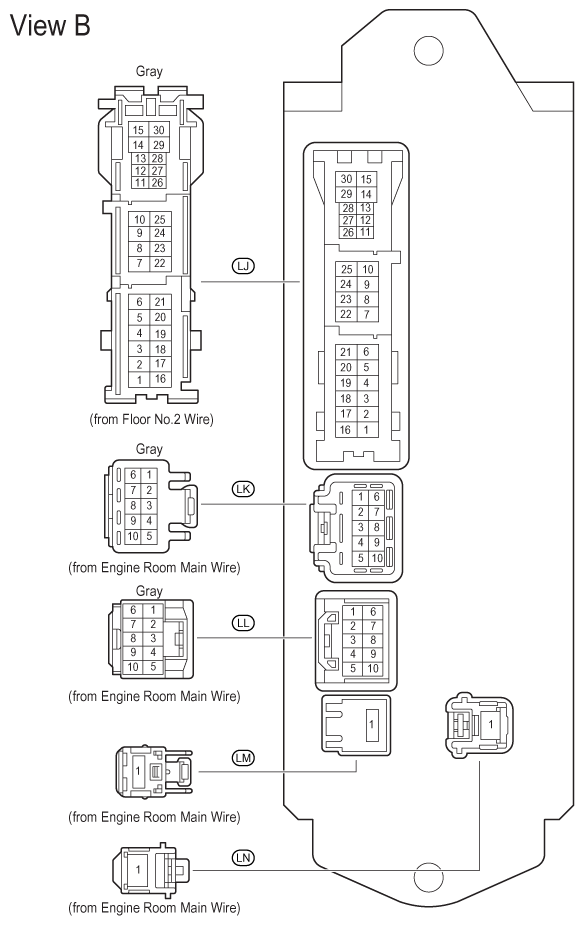

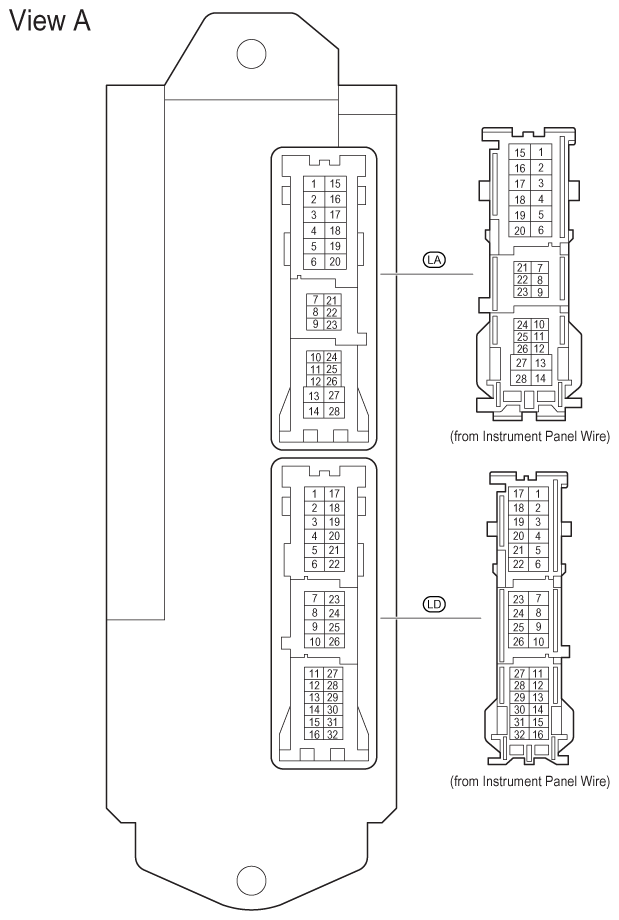

Cowl Side Junction Block LH

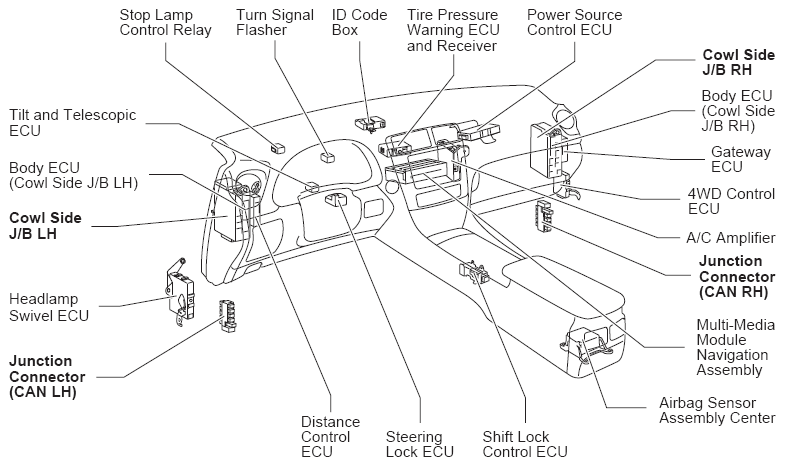

Cowl Side Left (See Figure)
Cowl Side J/B LH Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | A/C | Air Conditioning |
| Climate Control Seat and Seat Heater (w/ Climate Control Seat) | ||
| Mirror Heater and Rear Window Defogger | ||
| 7.5A | H-LP LVL | Adaptive Front-Lighting System |
| 7.5A | PANEL | Climate Control Seat and Seat Heater (w/ Climate Control Seat) |
| Illumination | ||
| Seat Heater (w/o Climate Control Seat) | ||
| 7.5A | SECURITY | Smart Access System with Push-Button Start |
| 10A | ECU-IG LH | Air Conditioning |
| Automatic Glare-Resistant EC Mirror and Compass | ||
| Climate Control Seat and Seat Heater (w/ Climate Control Seat) | ||
| Combination Meter | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| EPS | ||
| Front Wiper and Washer | ||
| Mirror Heater and Rear Window Defogger | ||
| Shift Lock | ||
| Sliding Roof | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| 10A | FUEL OPN | Fuel Lid Opener |
| 10A | LH-IG | 4WD |
| Air Conditioning | ||
| Audio System, LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Back-Up Light | ||
| Charging | ||
| Cooling Fan | ||
| Cruise Control (2GR-FSE) | ||
| Cruise Control (4GR-FSE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electric Tension Reducer | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Front Wiper and Washer | ||
| Headlight Cleaner | ||
| Interior Light | ||
| Mirror Heater and Rear Window Defogger | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat w/ Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/ Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Rear Sunshade | ||
| Remote Control Mirror (w/ Seat Position Memory) | ||
| Stop Light | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| 10A | TAIL | Taillight |
| 10A | TV NO. 1 | Audio System, LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| 15A | FR S/HTR LH | Climate Control Seat and Seat Heater (w/ Climate Control Seat) |
| Seat Heater (w/o Climate Control Seat) | ||
| 15A | MIR HTR | Mirror Heater and Rear Window Defogger |
| 20A | FR DOOR LH | Interior Light |
| Power Seat (Driver's Seat w/ Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Remote Control Mirror (w/ Seat Position Memory) | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 20A | RR DOOR LH | Power Window |
| 25A | S/ROOF | Sliding Roof |
| 30A | FR P/SEAT LH | Power Seat (Driver's Seat w/ Seat Position Memory) |
| Power Seat (Driver's Seat w/o Seat Position Memory) | ||
| 30A | FR WIP | Front Wiper and Washer |
| 30A | PSB | Pre-Collision System |
