DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0339: Crankshaft Position Sensor "A" Circuit Intermittent: Wiring Diagram

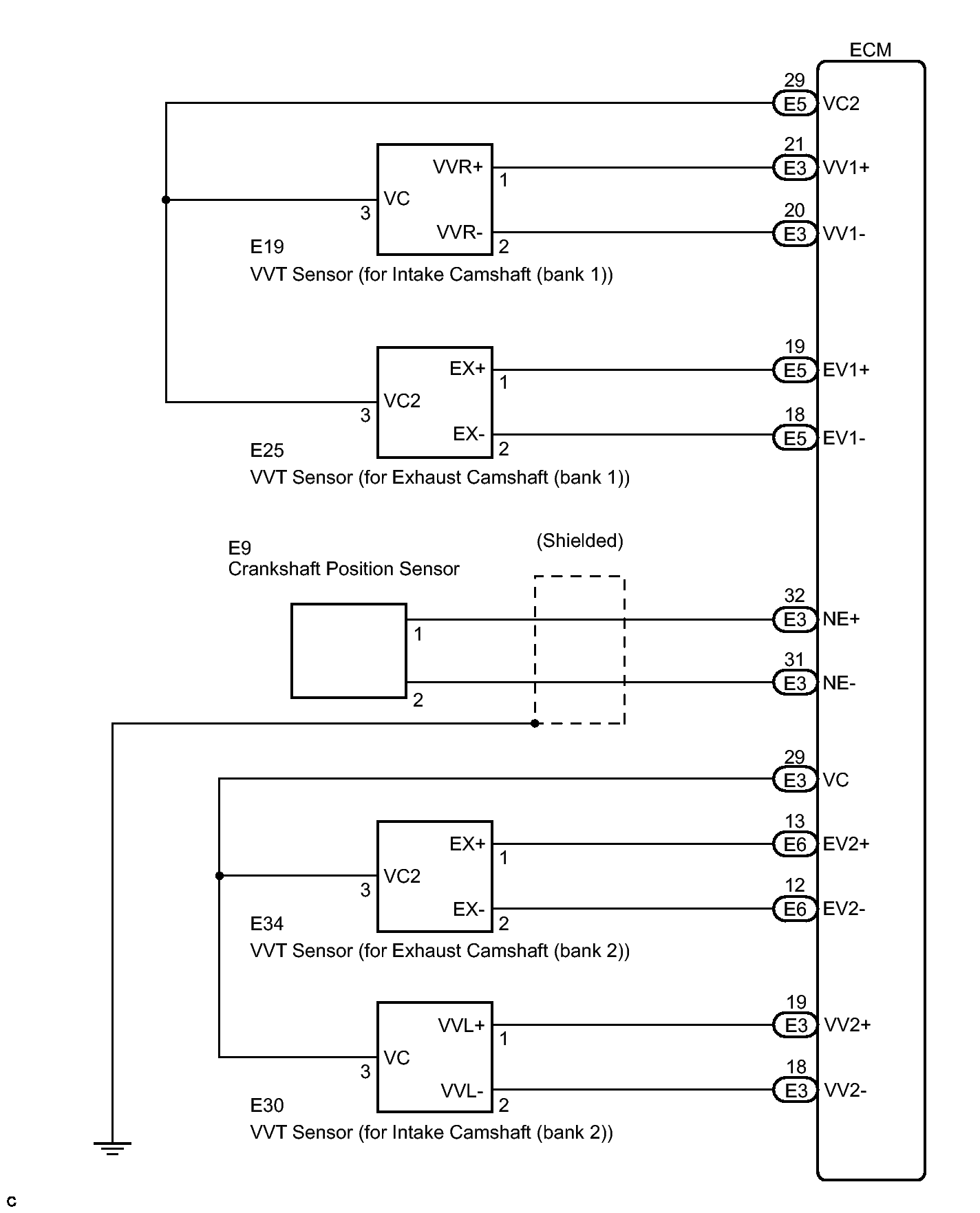

Fig 1: VVT Sensors & Crankshaft Position Sensor - Wiring Diagram
GTY145806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
