DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0339: Crankshaft Position Sensor "A" Circuit Intermittent: Procedure

1. Disconnect the E9 crankshaft position (CKP) sensor connector.
   Fig 1: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	Cold	1630 to 2740 Ω
   1 - 2	Hot	2065 to 3225 Ω

   HINT:

   Terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).

3. Reconnect the CKP sensor connector.

NG → REPLACE CRANKSHAFT POSITION SENSOR

OK: Go to next step

1. Disconnect the E9 CKP sensor connector.

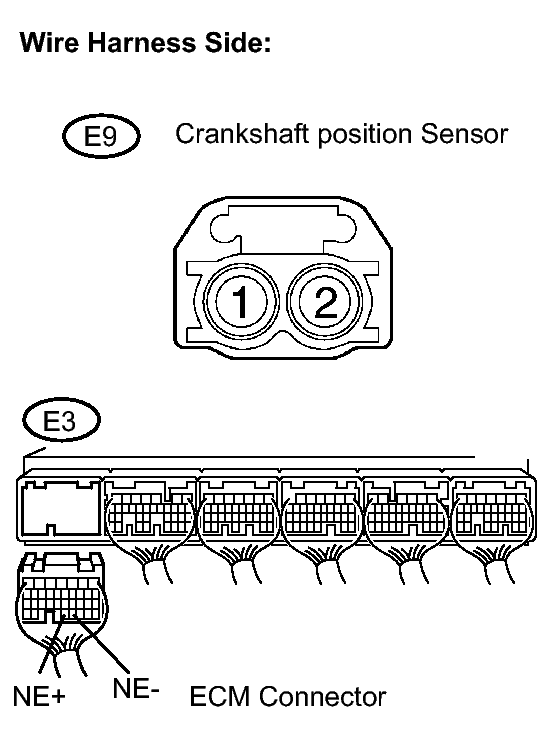

   Fig 2: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the E3 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance (Check for open)

   Tester Connection	Specified Condition
   E9-1 - NE+ (E3-32)	Below 1 Ω
   E9-2 - NE- (E3-31)	Below 1 Ω

   Standard resistance (Check for short)

   Tester Connection	Specified Condition
   E9-1 or NE+ (E3-32) - Body ground	10 kΩ or higher
   E9-2 or NE- (E3-31) - Body ground	10 kΩ or higher

4. Reconnect the ECM connector.
5. Reconnect the CKP sensor connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Check the CKP sensor installation.
   Fig 3: Checking CKP Sensor Installation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Sensor is installed correctly.

NG → REPAIR OR REPLACE CRANK POSITION SENSOR

OK: Go to next step

1. Check the teeth of the sensor plate.

   OK

   Sensor plate does not have any cracks or deformation.

NG → REPLACE CRANKSHAFT POSITION SENSOR PLATE

OK → REPLACE ECM
