DTC P0230: Fuel Pump Primary Circuit: Wiring Diagram

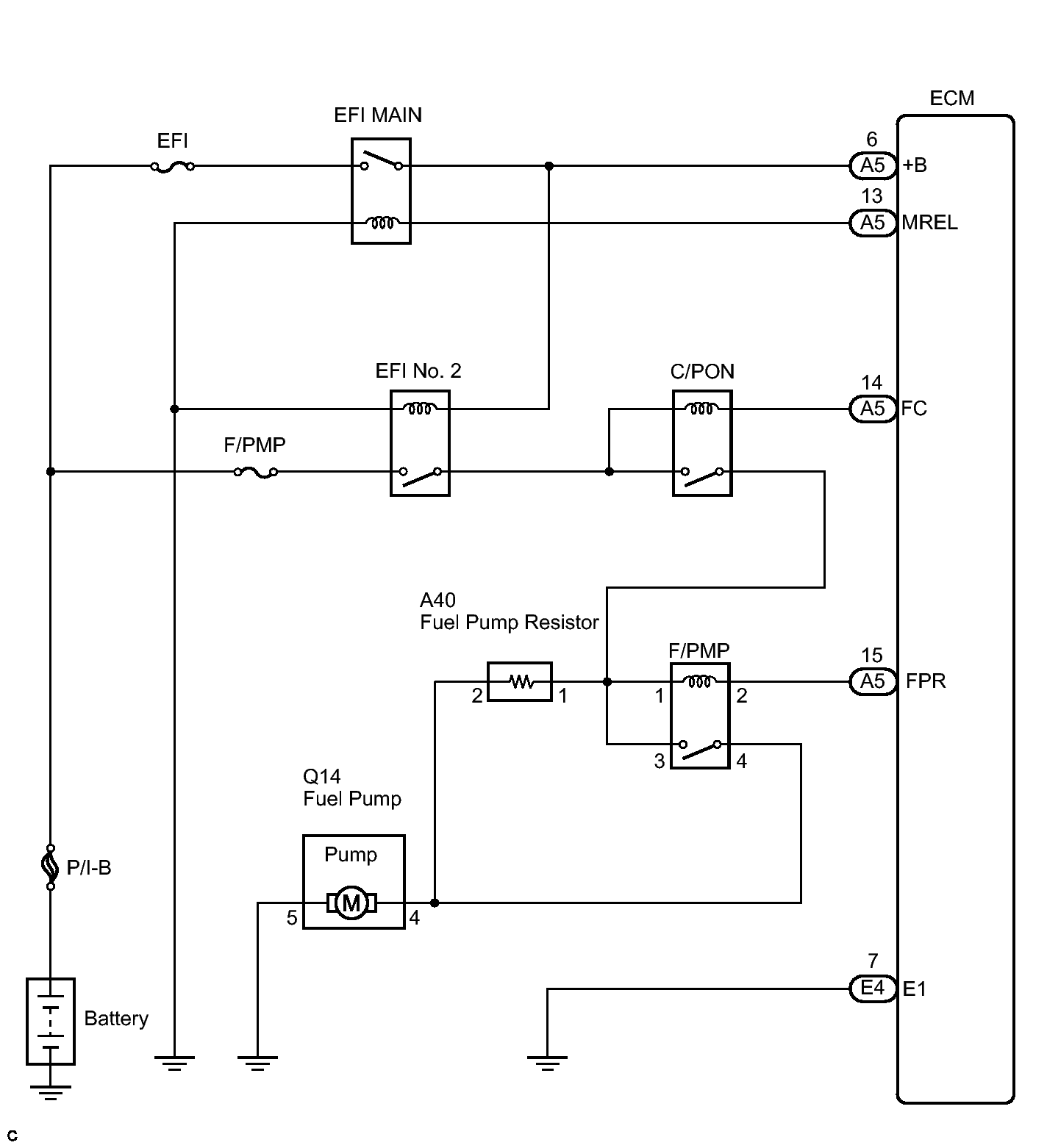

Fig 1: Fuel Pump Primary Circuit & Fuel Pump Relay Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This troubleshooting procedure is based on the premise that the engine is started. If the engine is not started, proceed to the problem symptoms table (Refer to PROBLEM SYMPTOMS TABLE ).
