Engine Rear Oil Seal: Components: Illustration

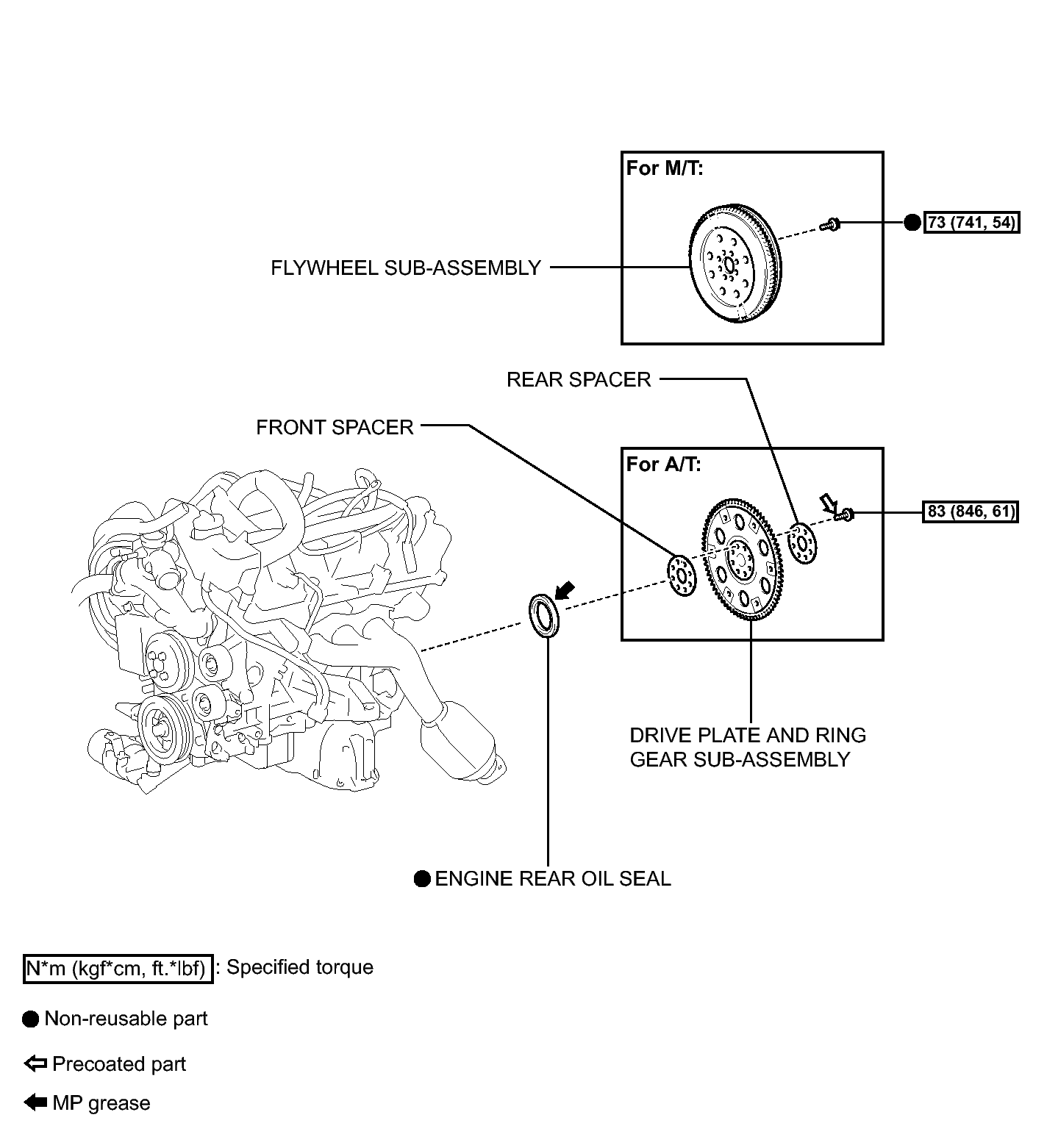

Fig 1: Identifying Engine Rear Oil Seal Replacement Components With Torque Specifications

GTY139292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
