Water Pump: Components: Illustration

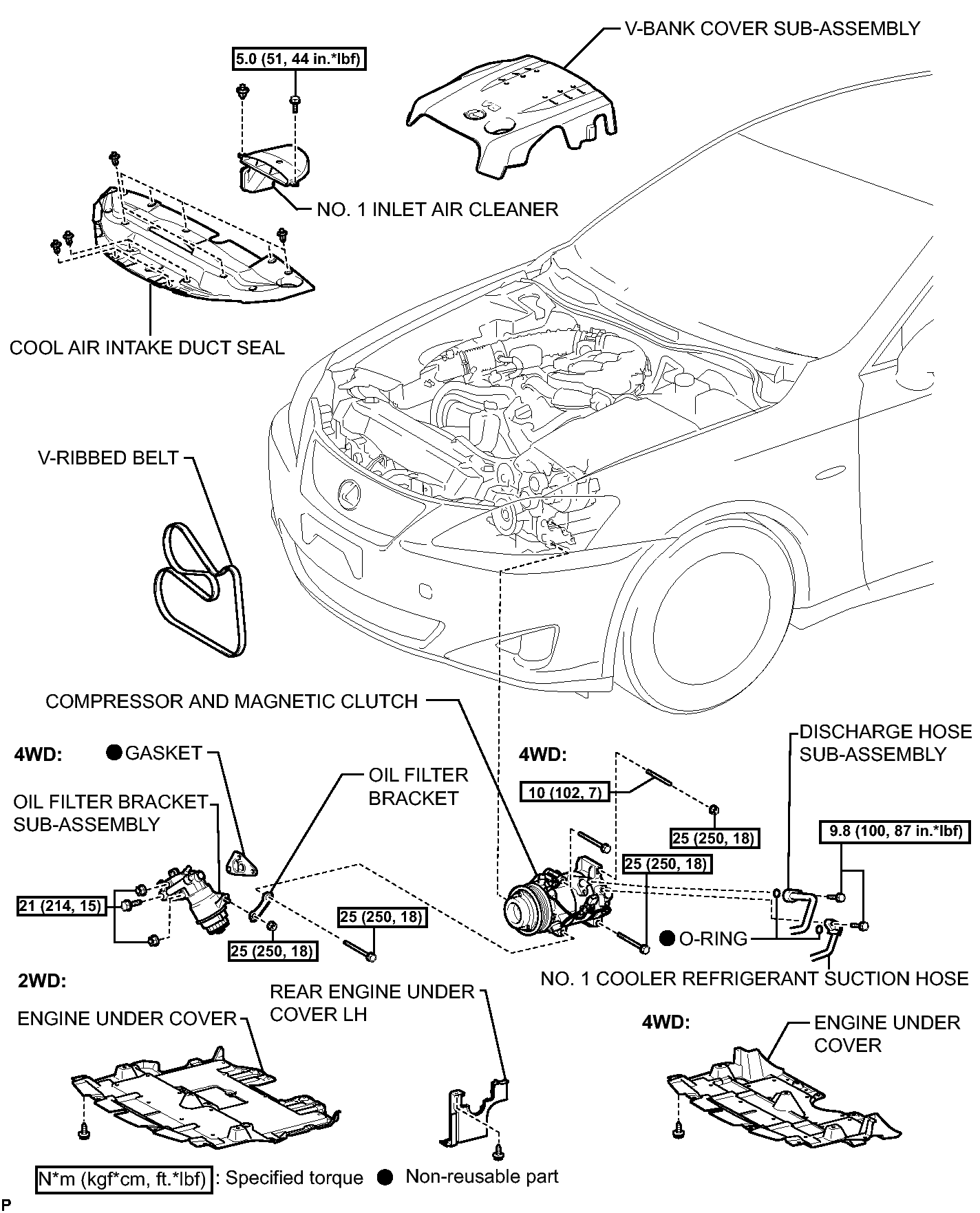

Fig 1: Exploded View Of Water Pump Replacement Components (1 Of 2) with Torque Specifications
GTY146365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

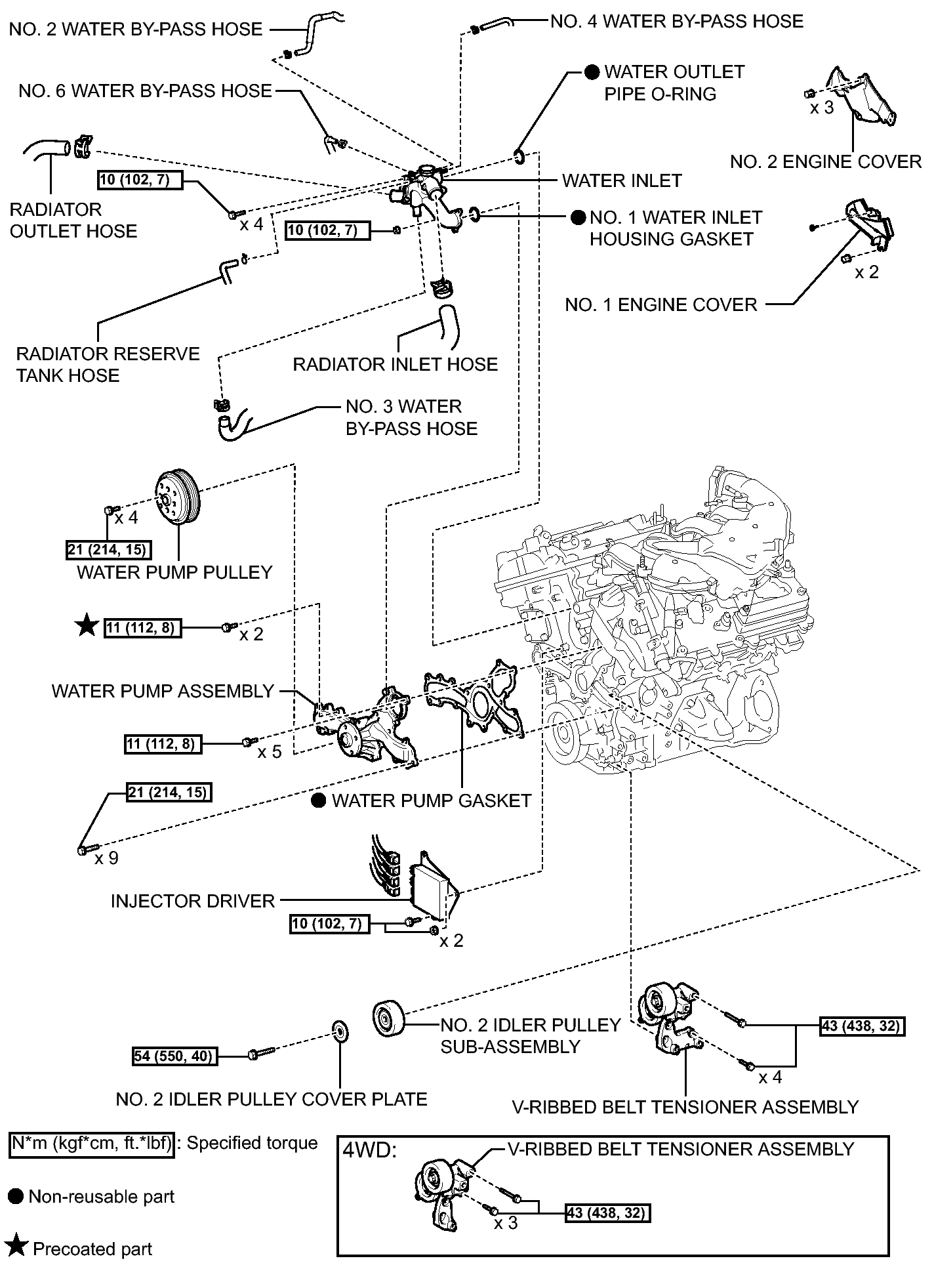

Fig 1: Exploded View Of Water Pump Replacement Components (2 Of 2) with Torque Specifications
GTY131402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
