Cooling (Service Information) (4GR-FSE): Thermostat: Components: Illustration

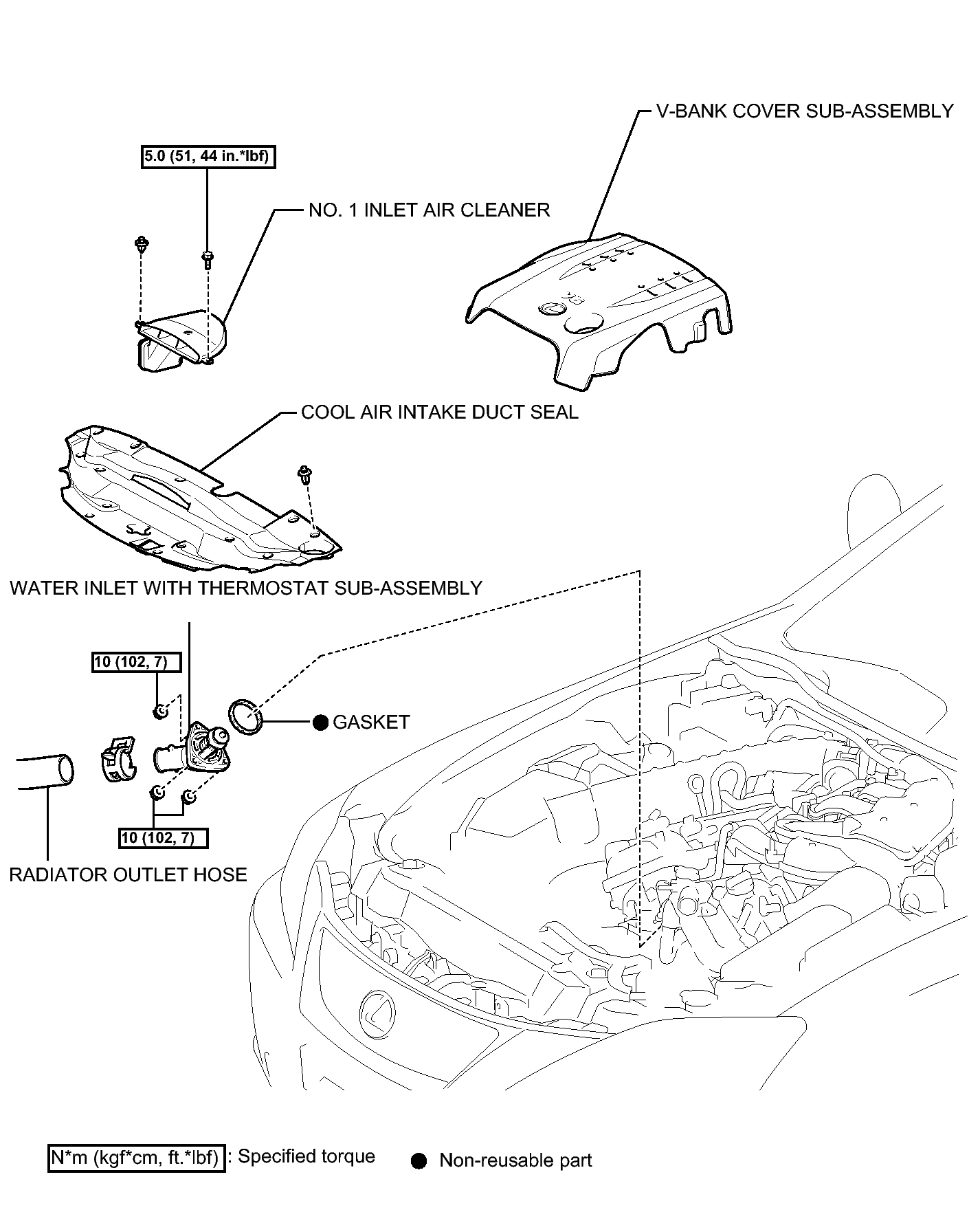

Fig 1: Identifying Thermostat Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
