Location of Ground Points

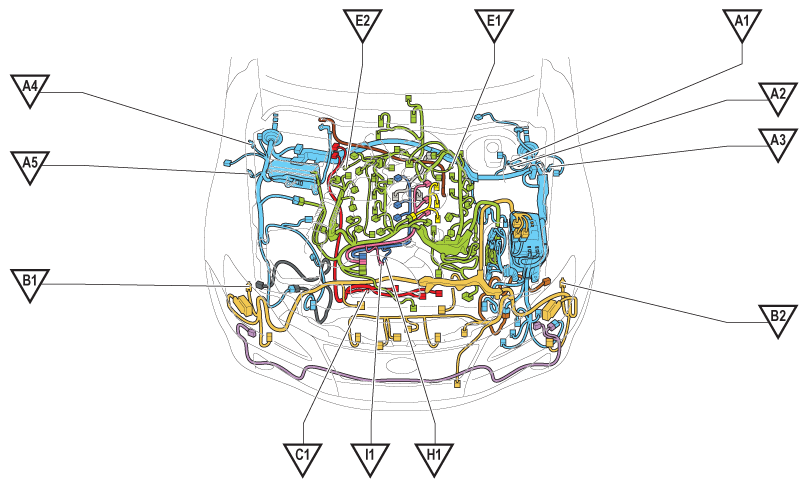

Fig 1: Locating Ground Points (2GR-FSE)
G07588733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

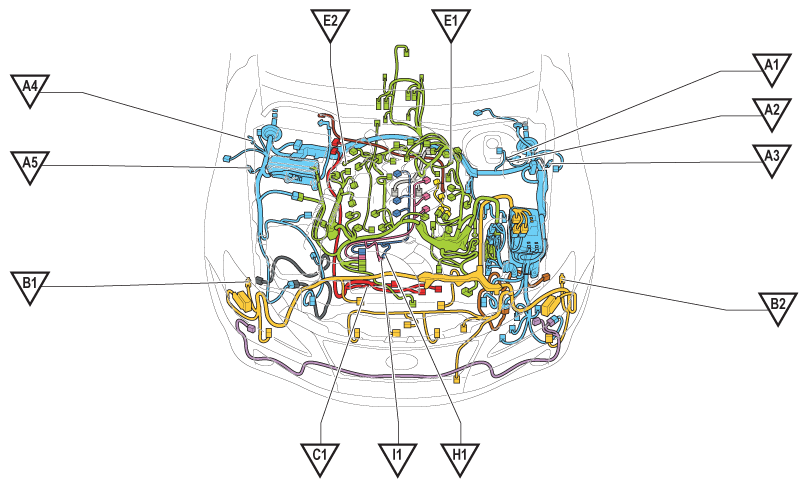

Fig 1: Locating Ground Points (4GR-FSE)
G07588735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

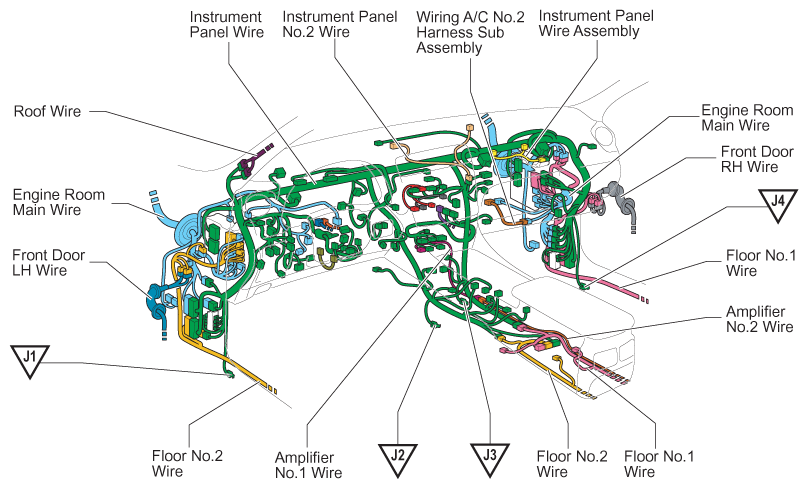

Fig 1: Locating Ground Points
G07588737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
