Parts Location: Illustration

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 3)
GTY121052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Parts Location (2 Of 3)
GTY141282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


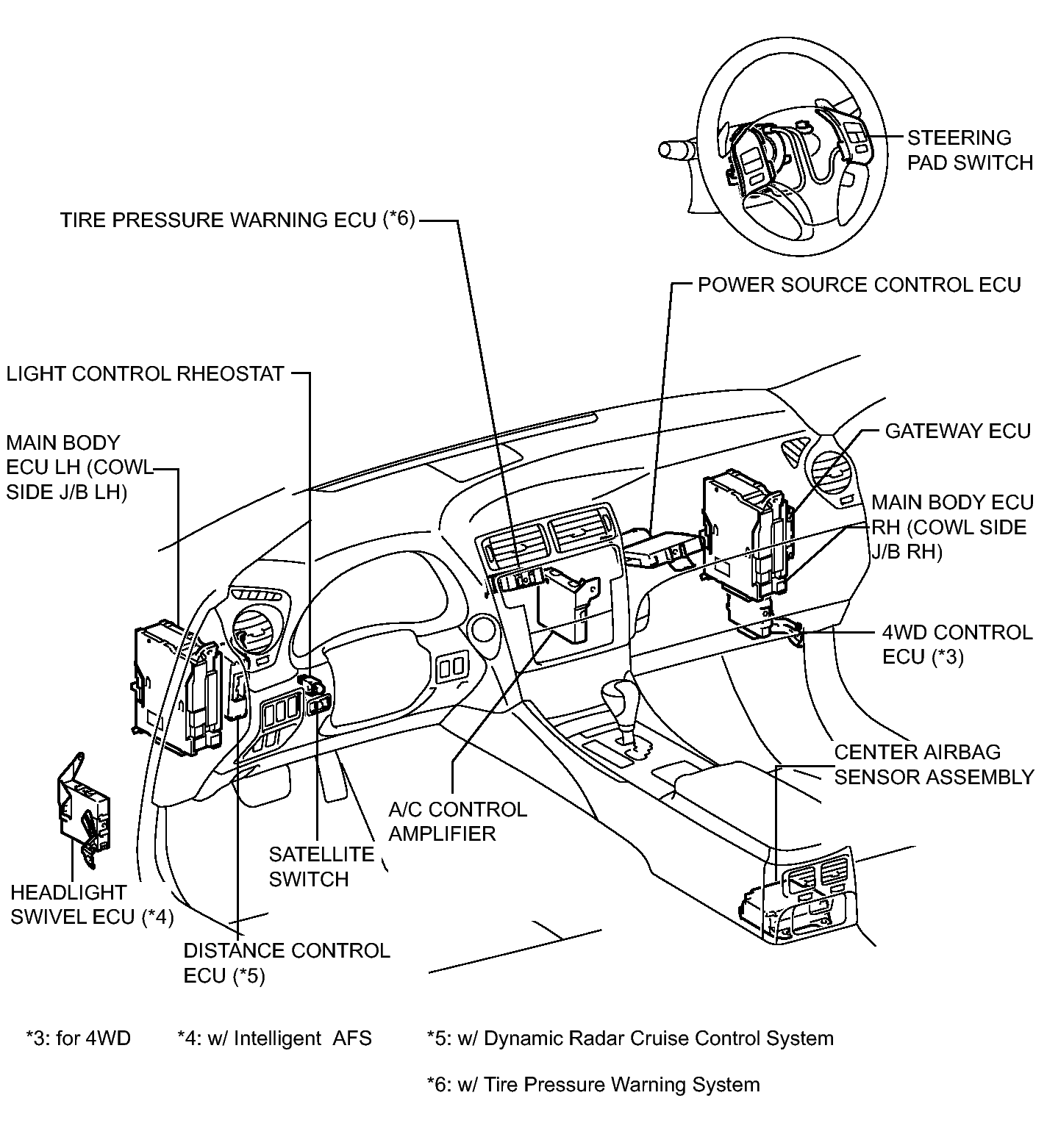

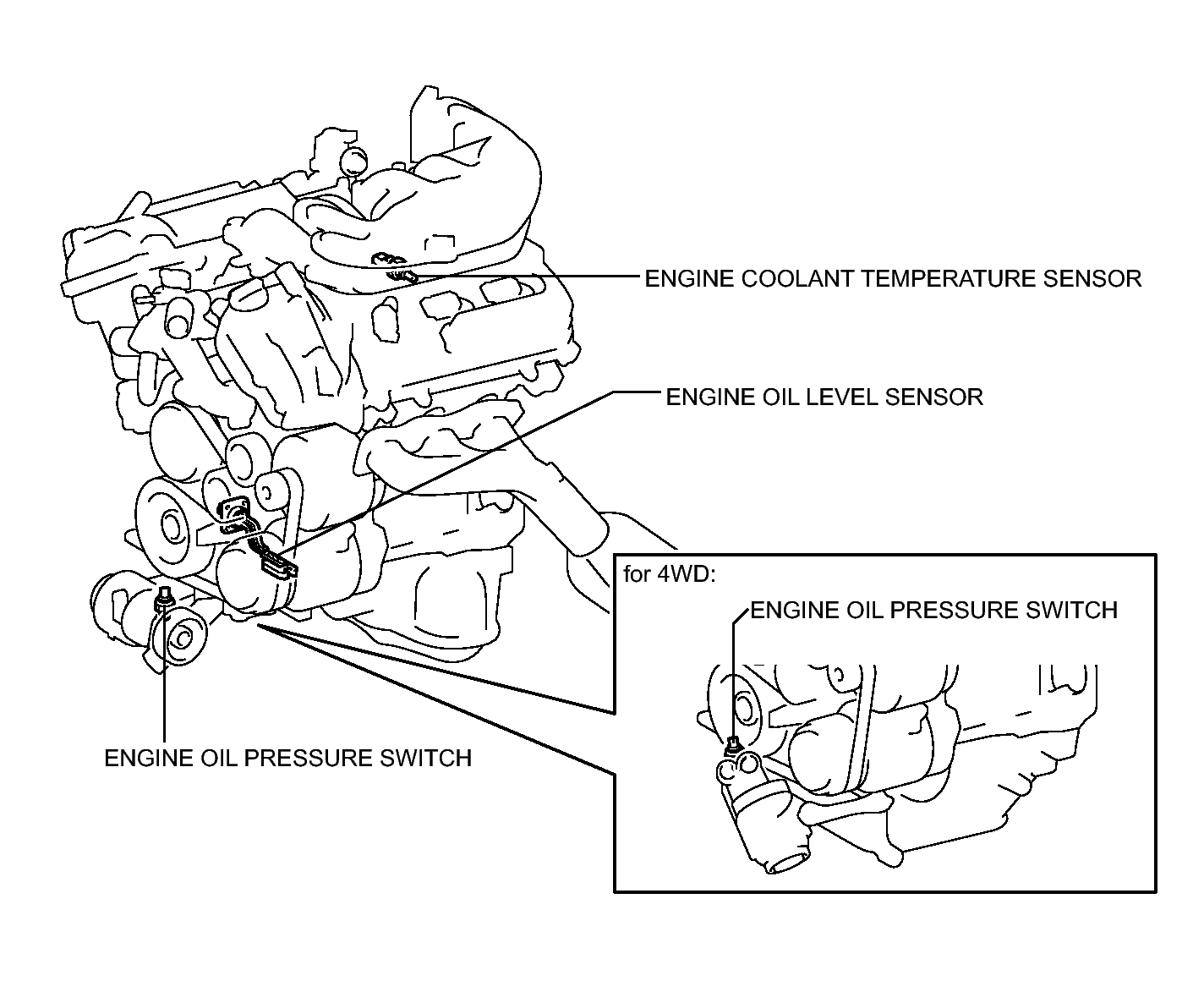

Fig 1: Identifying Meter / Gauge System Parts Location (3 Of 3)
GTY131220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
