Vehicle Dynamics Integrated Management

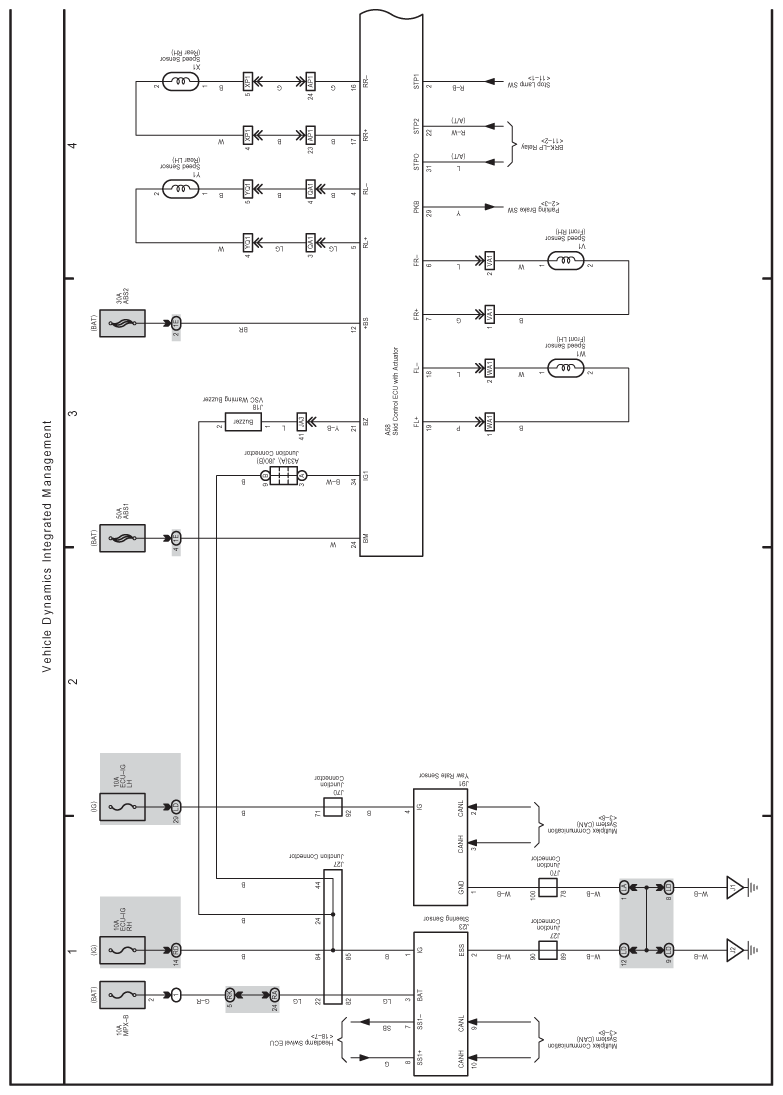

Fig 1: Vehicle Dynamics Integrated Management Electrical Wiring Diagram (1 Of 2)
G07589191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

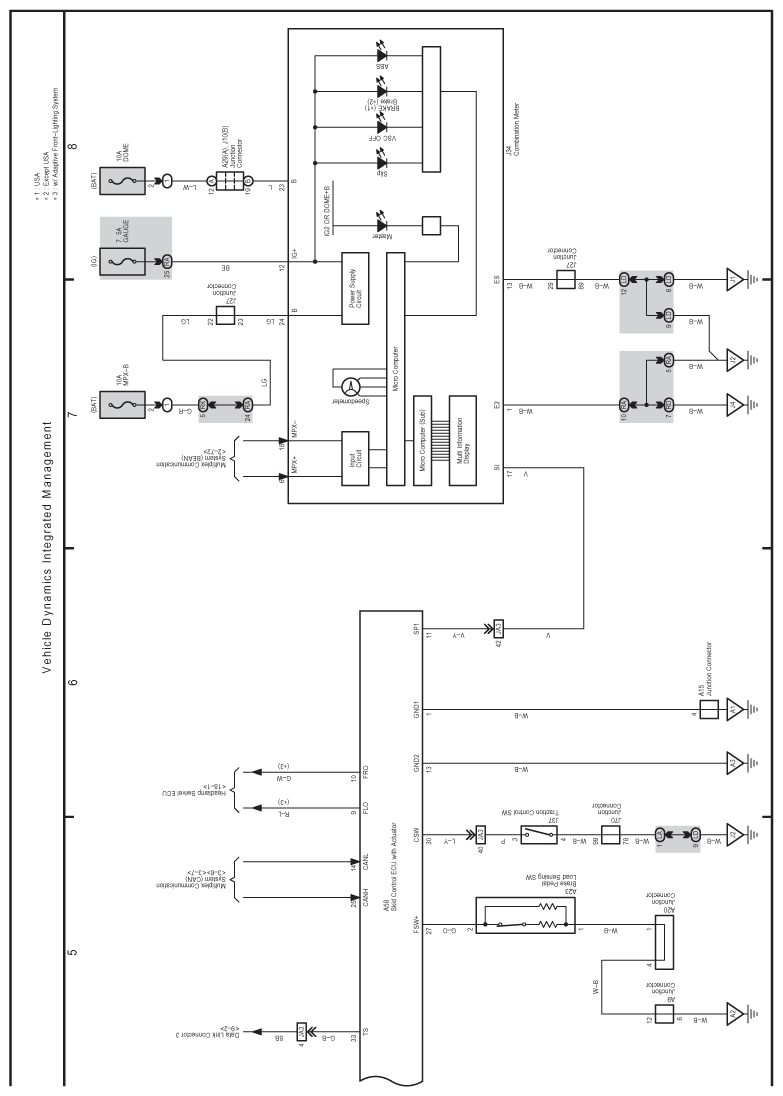

Fig 2: Vehicle Dynamics Integrated Management Electrical Wiring Diagram (2 Of 2)
G07589192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
