Seat Heater (w/o Climate Control Seat)

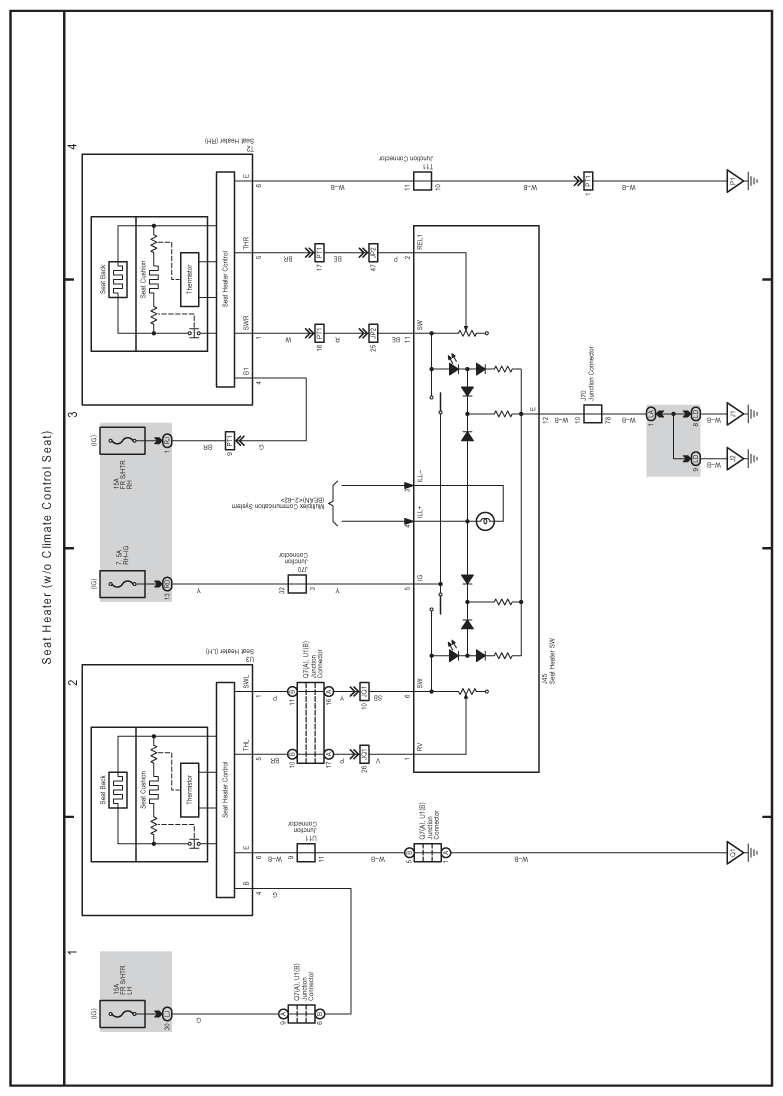

Fig 1: Seat Heater (W/O Climate Control Seat) Electrical Wiring Diagram

G07589209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
