Parking Assist (Intuitive Parking Assist)

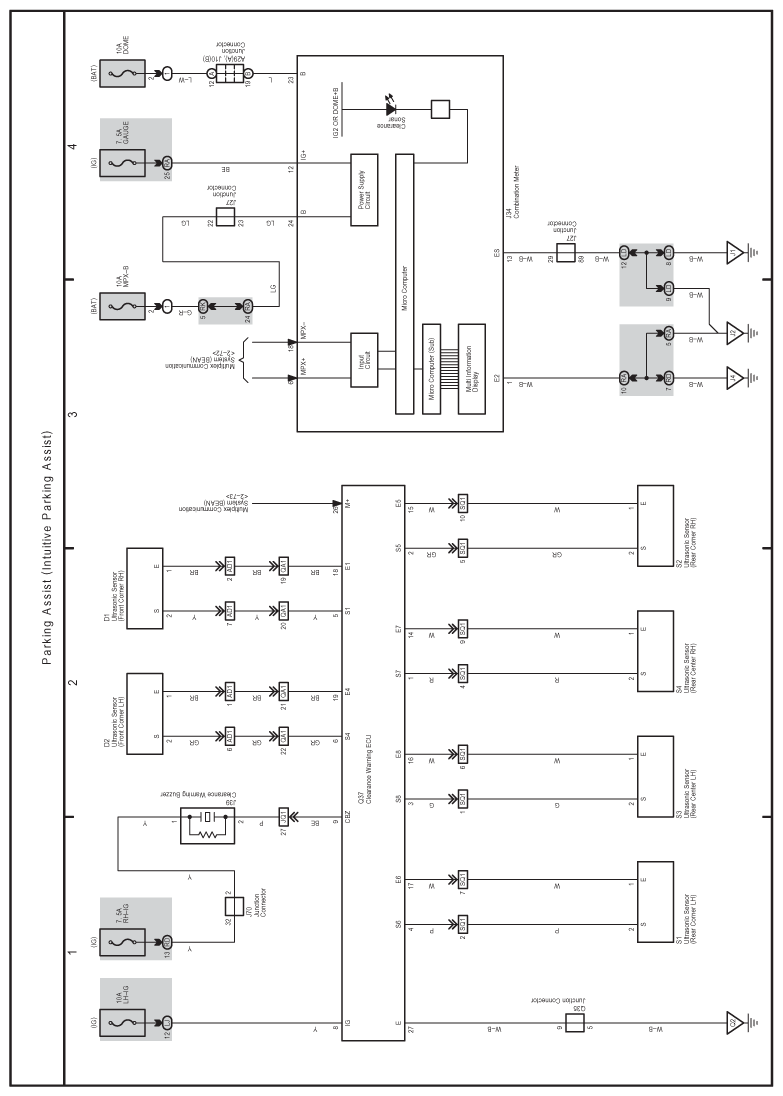

Fig 1: Parking Assist (Intuitive Parking Assist) Electrical Wiring Diagram

G07589211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
