Cruise Control (2GR-FSE), Dynamic Radar Cruise Control (2GR-FSE), Electronically Controlled Transmission and A/T Indicator (2GR-FSE), Engine Control (2GR-FSE)

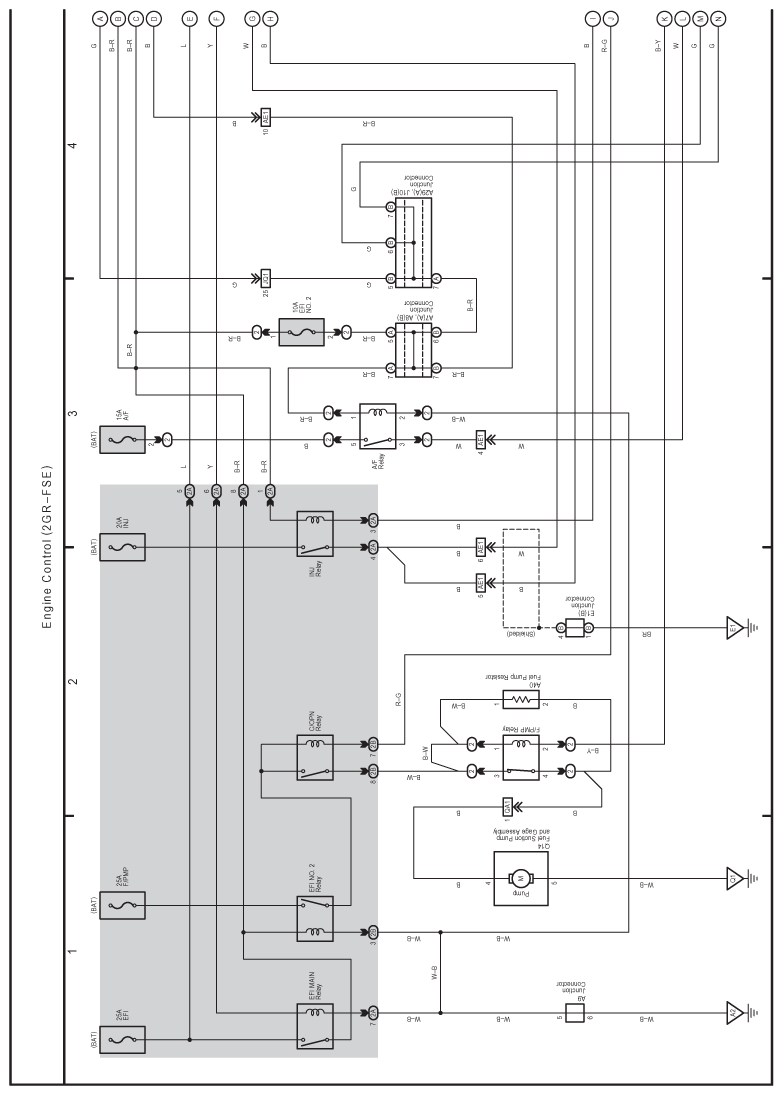

Fig 1: Engine Control (2GR-FSE) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

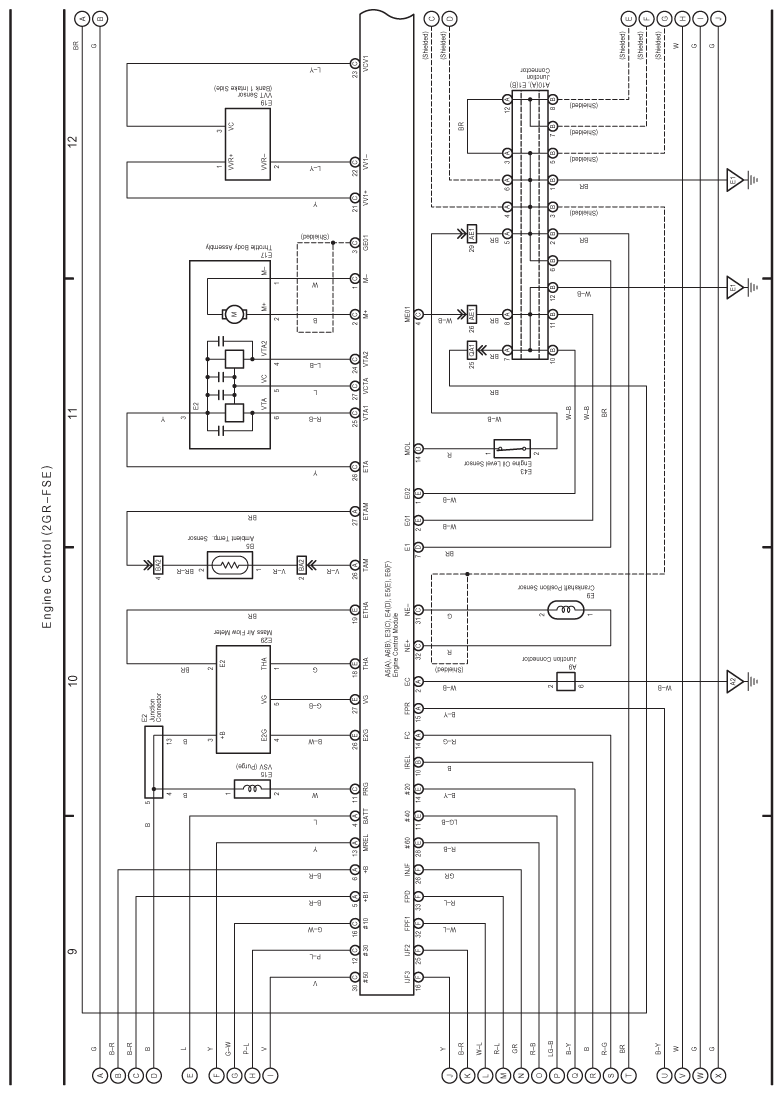

Fig 2: Engine Control (2GR-FSE) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

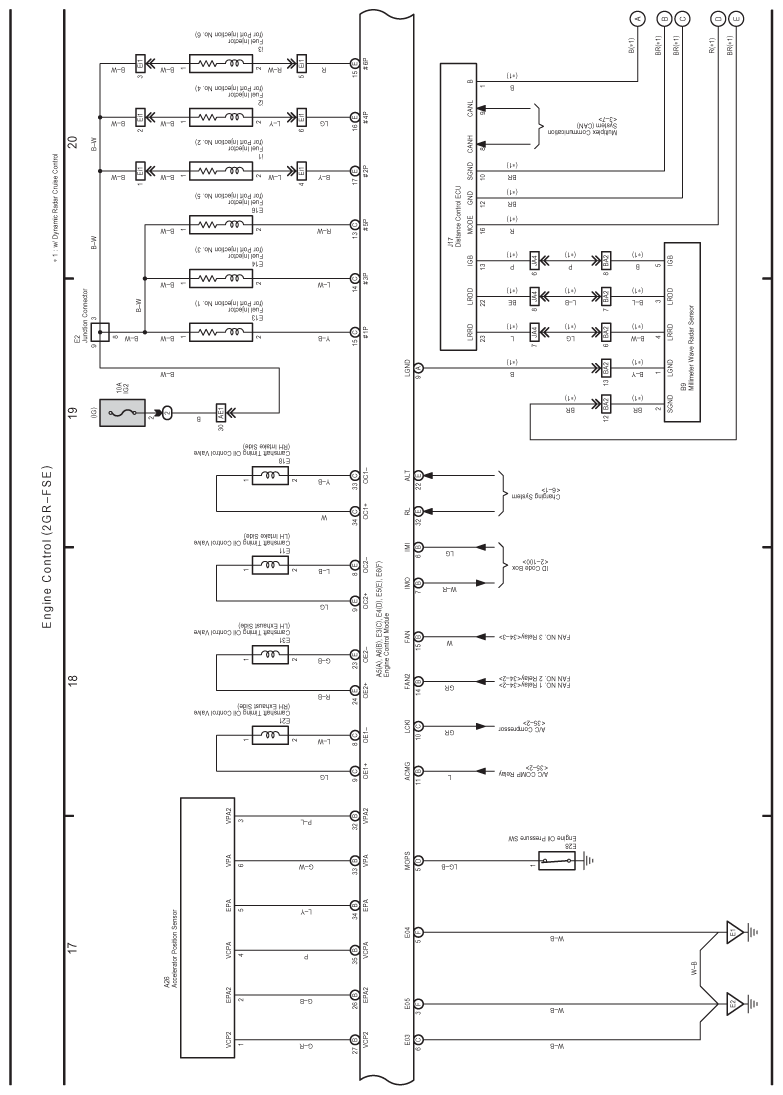

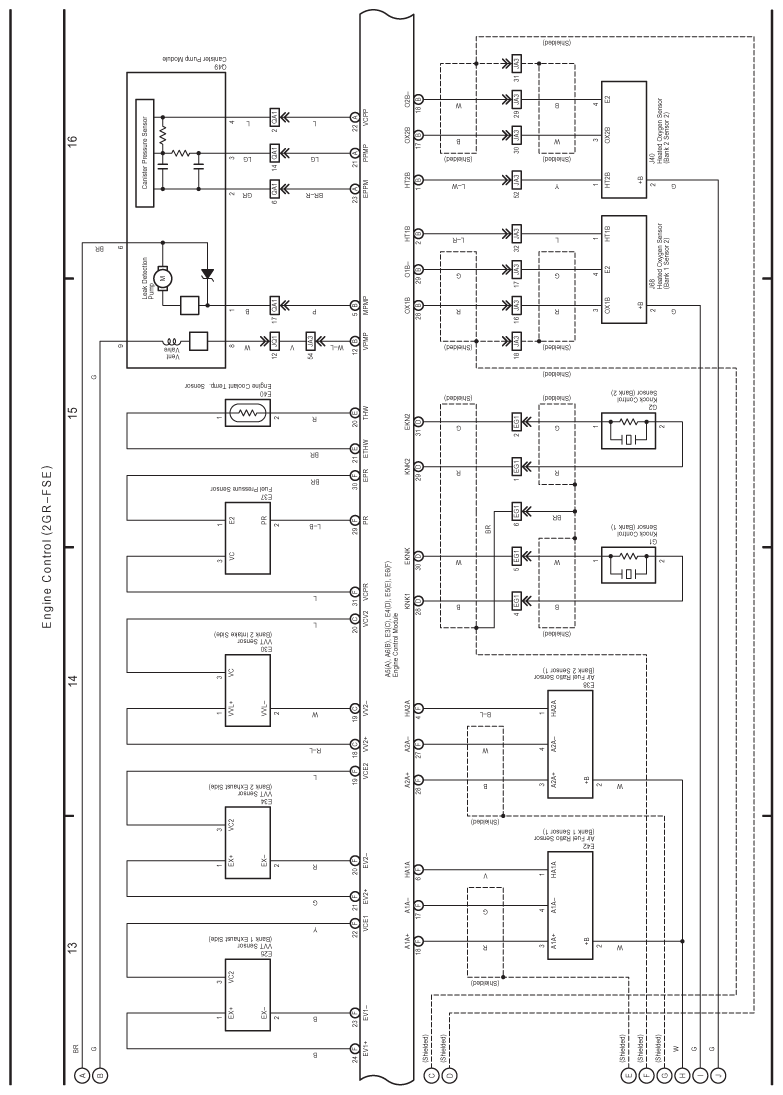

Fig 3: Engine Control (2GR-FSE) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

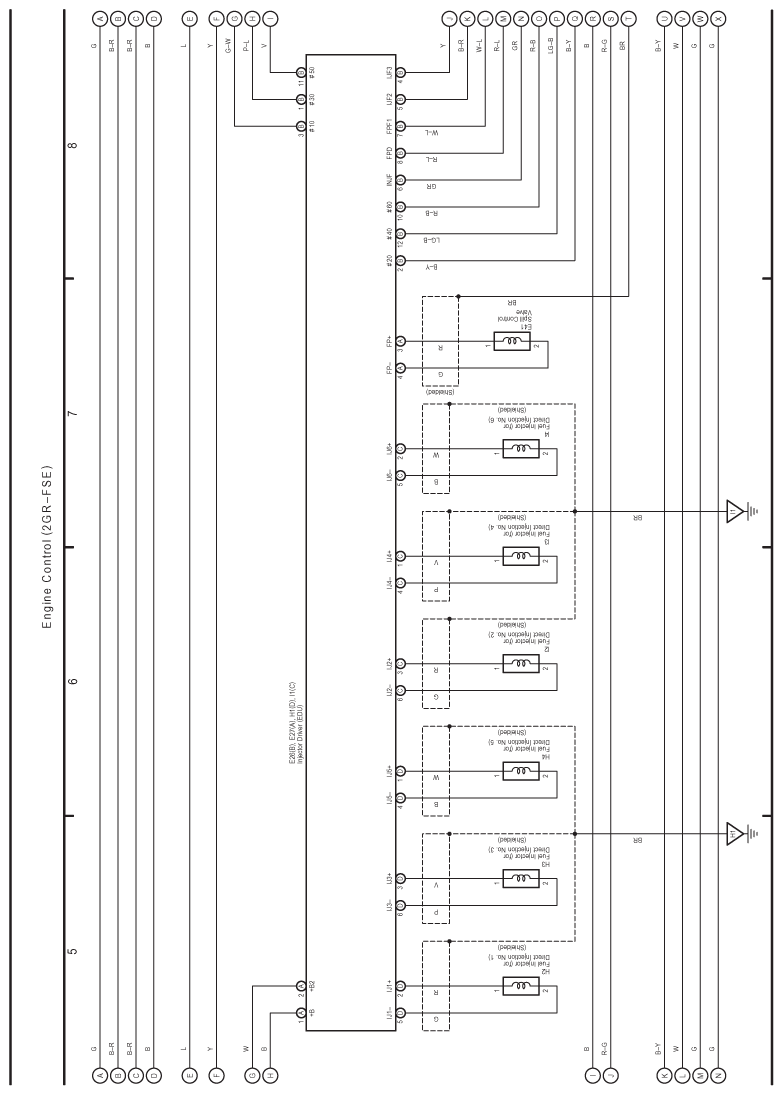

Fig 4: Engine Control (2GR-FSE) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Control (2GR-FSE) Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

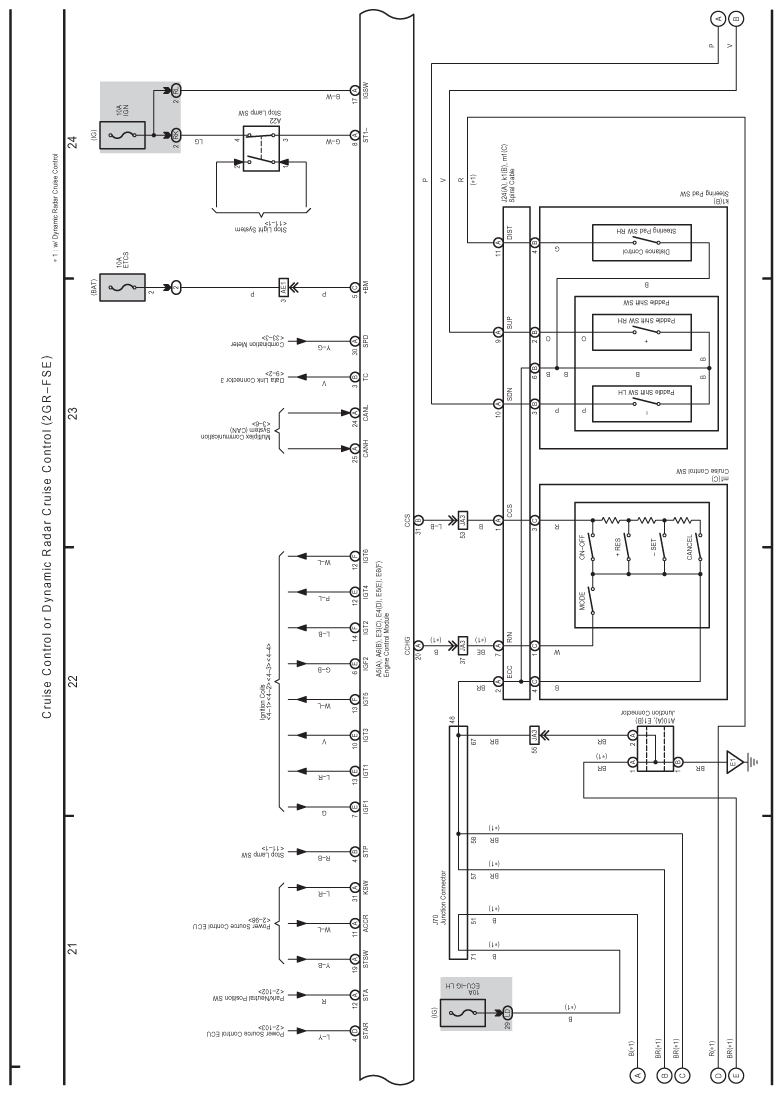

Fig 6: Cruise Controller Dynamic Radar Cruise Control (2GR-FSE) Electrical Wiring Diagram

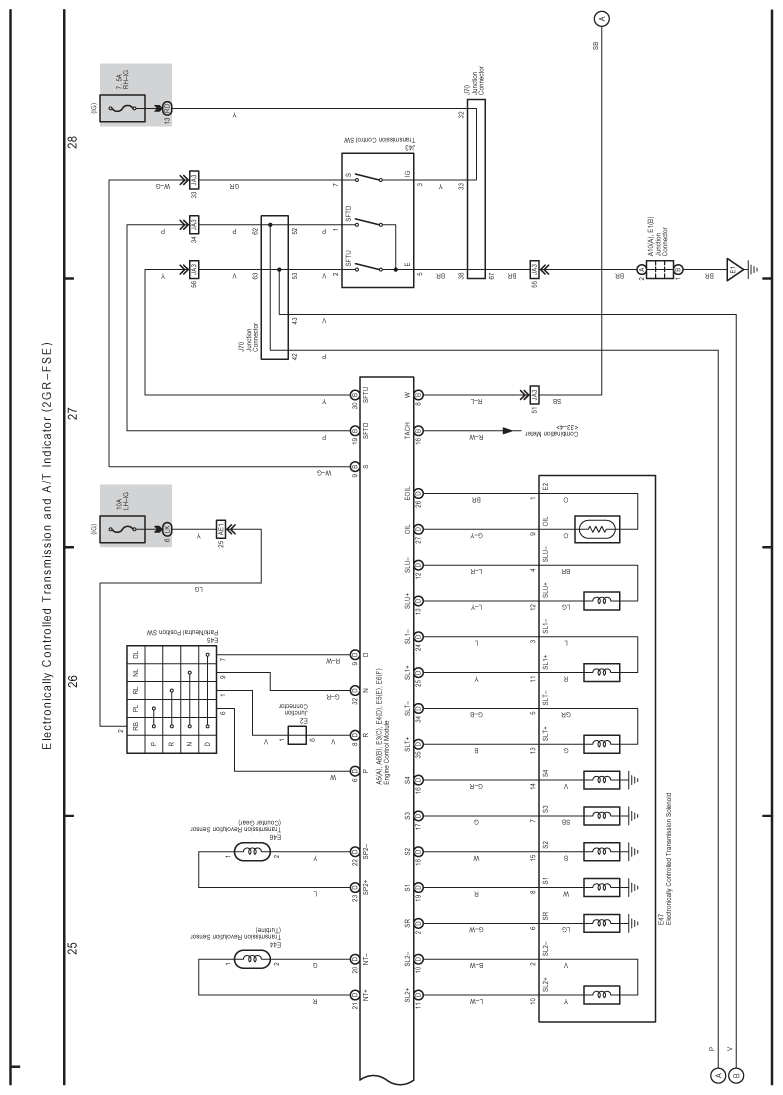

Fig 7: Electronically Controlled Transmission And A/T Indicator (2GR-FSE) Electrical Wiring Diagram (1 Of 2)

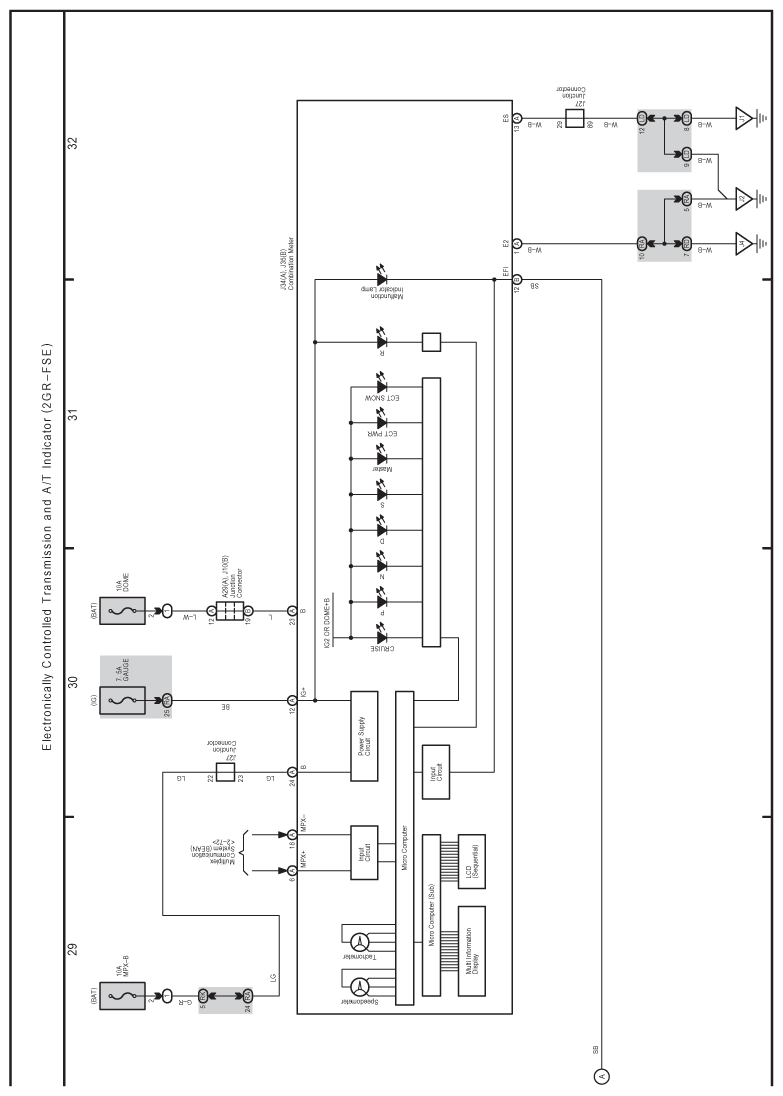

Fig 8: Electronically Controlled Transmission And A/T Indicator (2GR-FSE) Electrical Wiring Diagram (2 Of 2)
