Cigarette Lighter, Electric Tension Reducer, Power Outlet

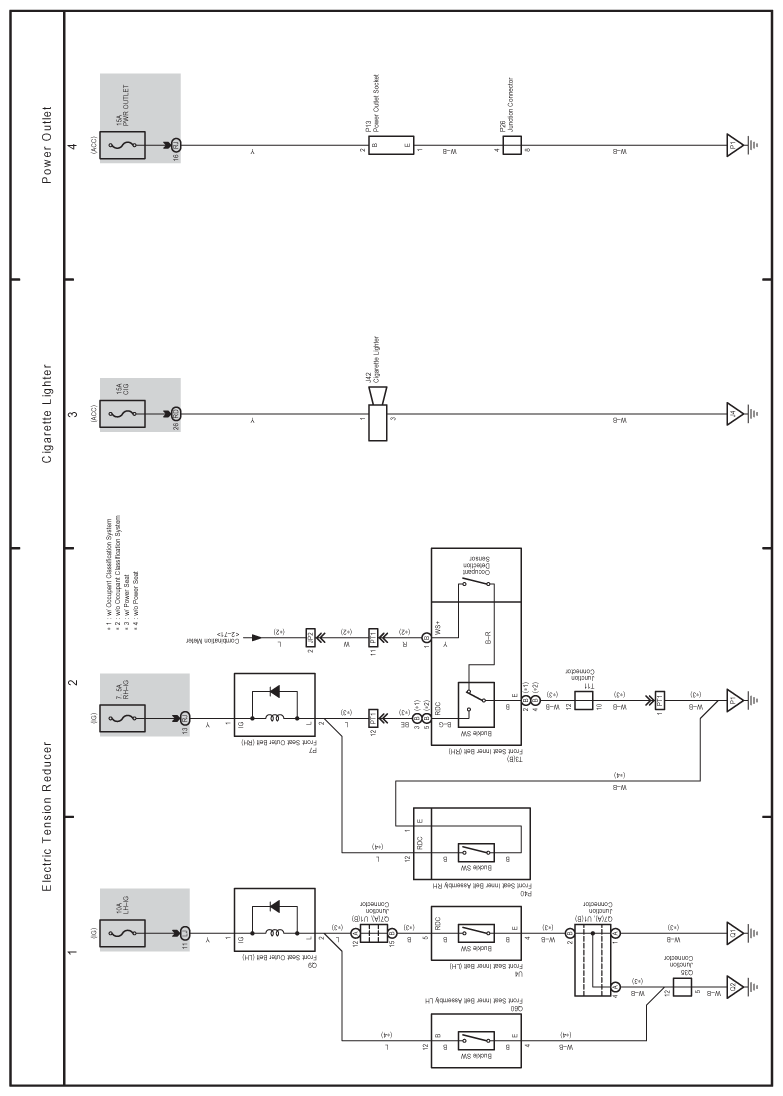

Fig 1: Electric Tension Reducer Electrical Wiring Diagram

G07589202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
