Adaptive Front-Lighting System

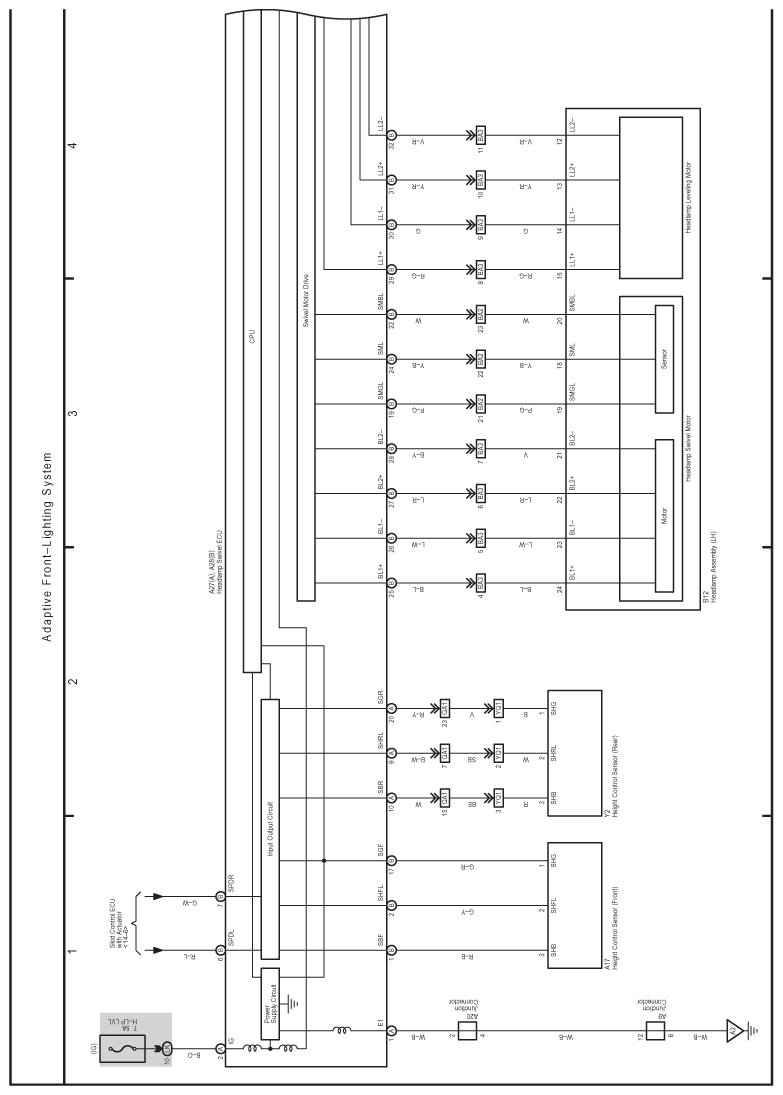

Fig 1: Adaptive Front-lighting System Electrical Wiring Diagram (1 Of 2)
G07589196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Adaptive Front-lighting System Electrical Wiring Diagram (2 Of 2)
G07589197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
