Position of Parts in Engine Compartment

[2GR-FSE]

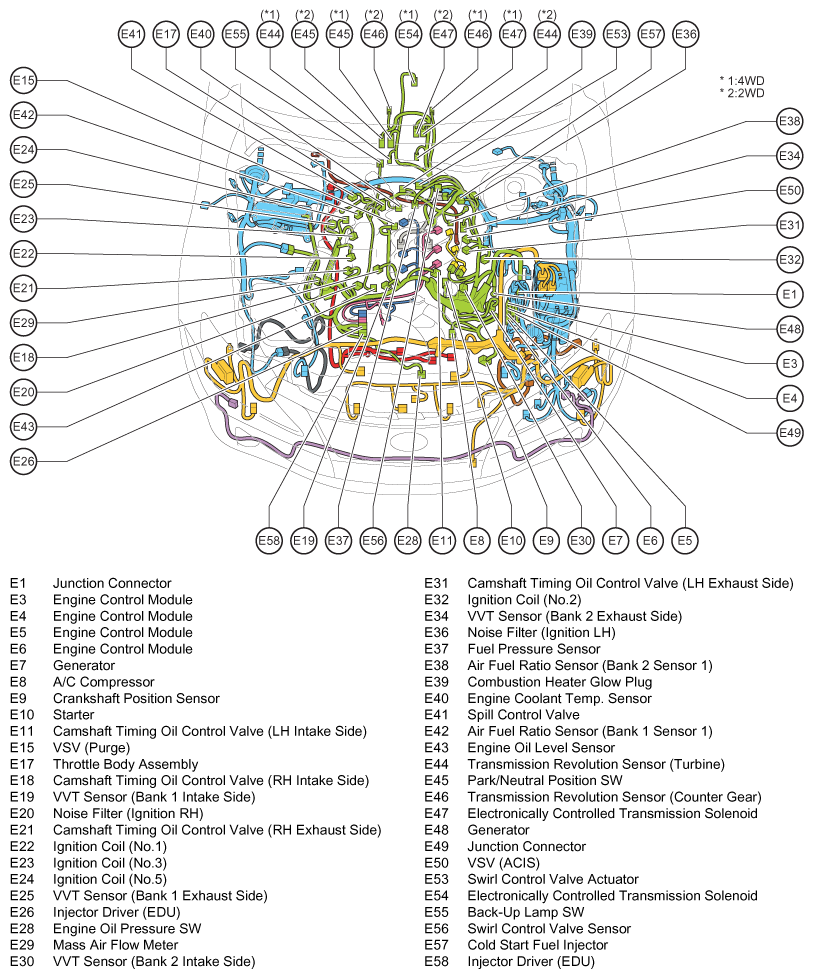

Fig 1: Engine Compartment Parts - 2GR-FSE (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

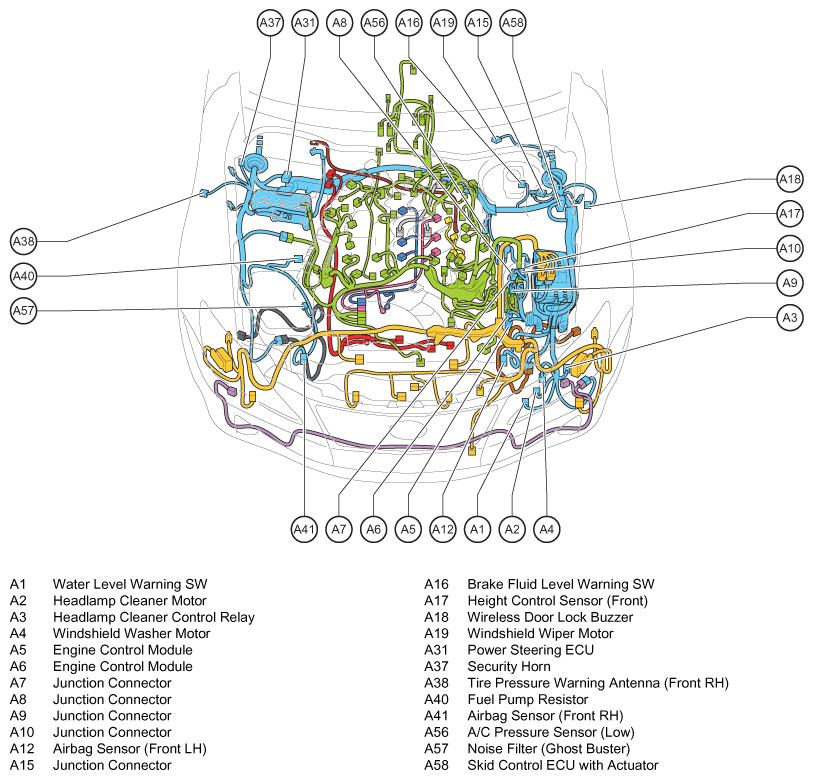

Fig 2: Engine Compartment Parts - 2GR-FSE (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

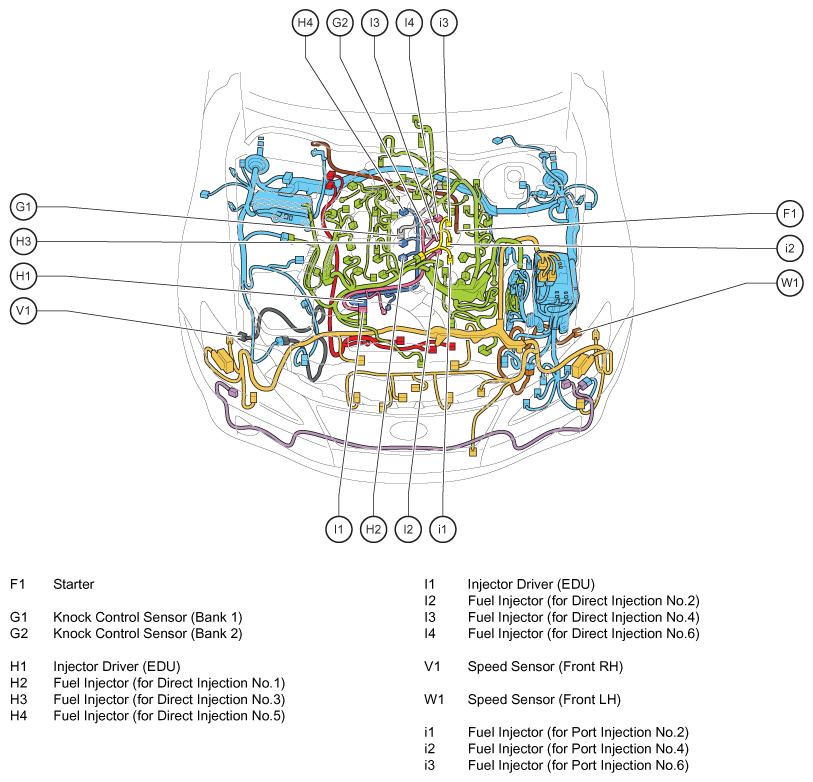

Fig 3: Engine Compartment Parts - 2GR-FSE (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

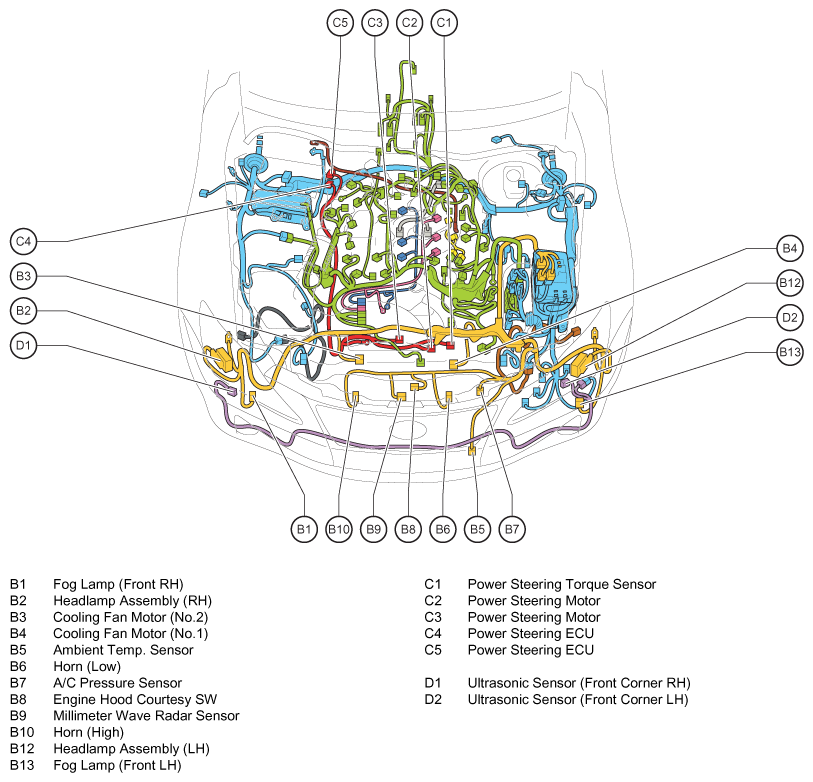

Fig 4: Engine Compartment Parts - 2GR-FSE (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[4GR-FSE]

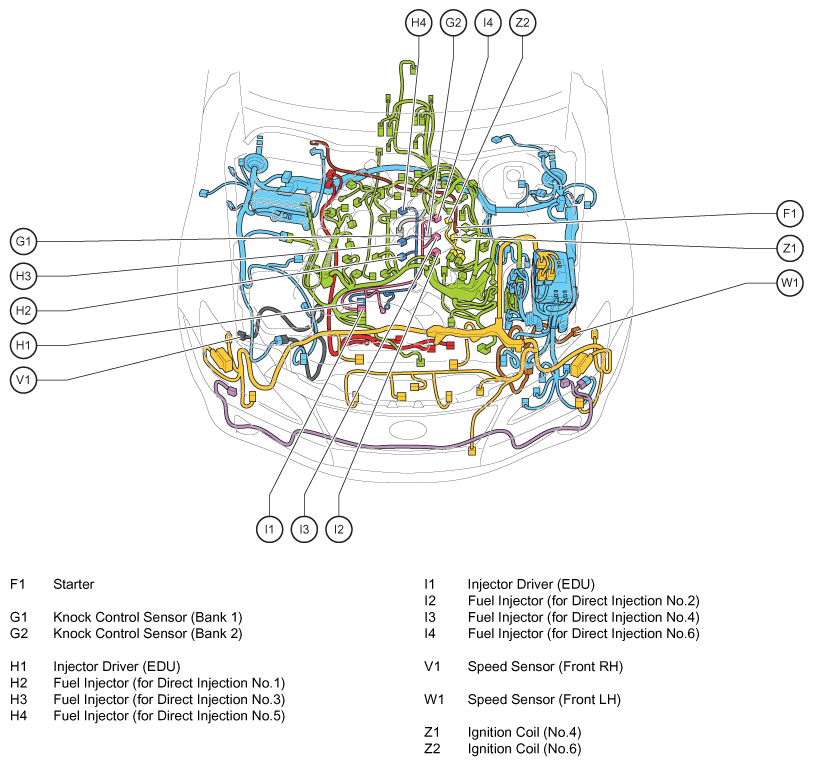

Fig 5: Engine Compartment Parts - 4GR-FSE (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

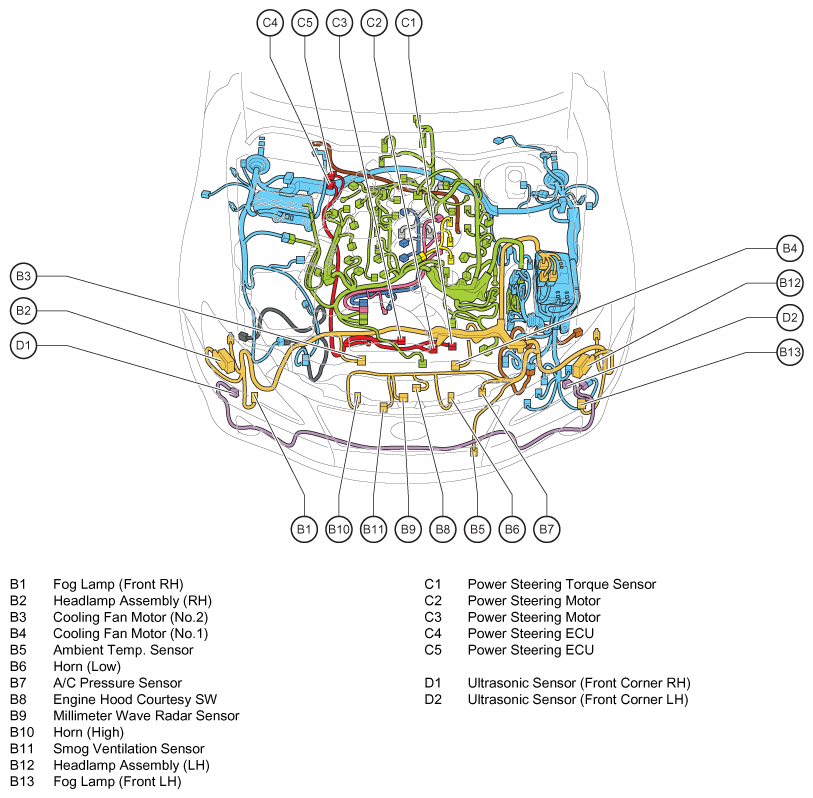

Fig 6: Engine Compartment Parts - 4GR-FSE (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

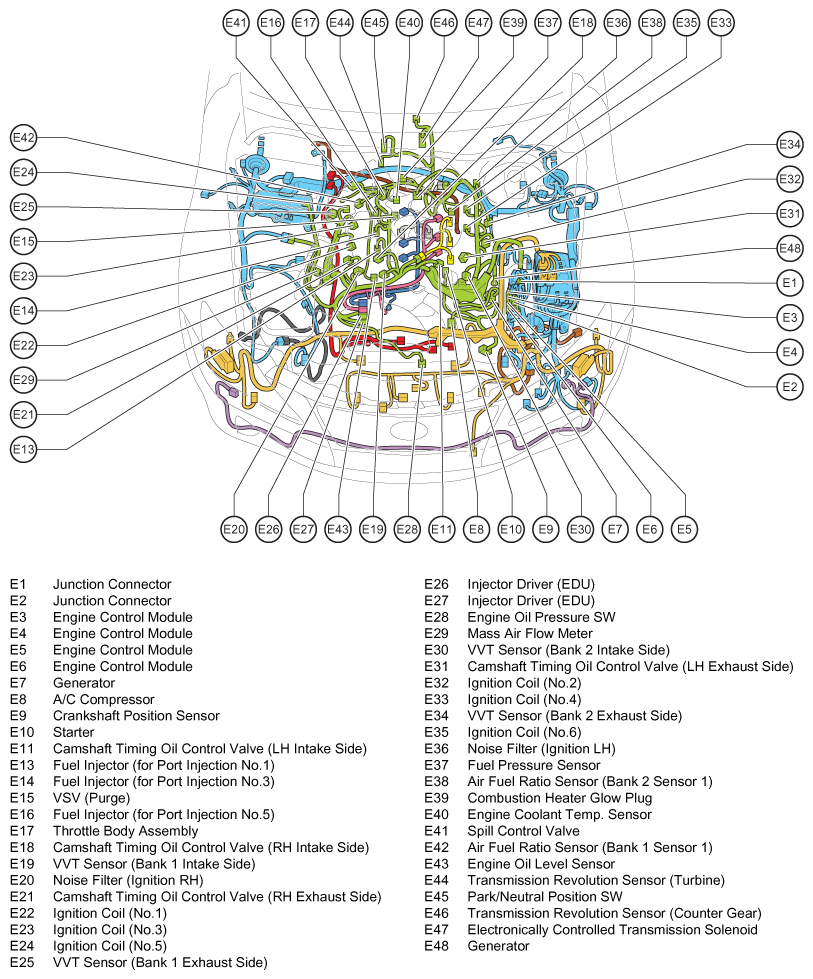

Fig 7: Engine Compartment Parts - 4GR-FSE (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

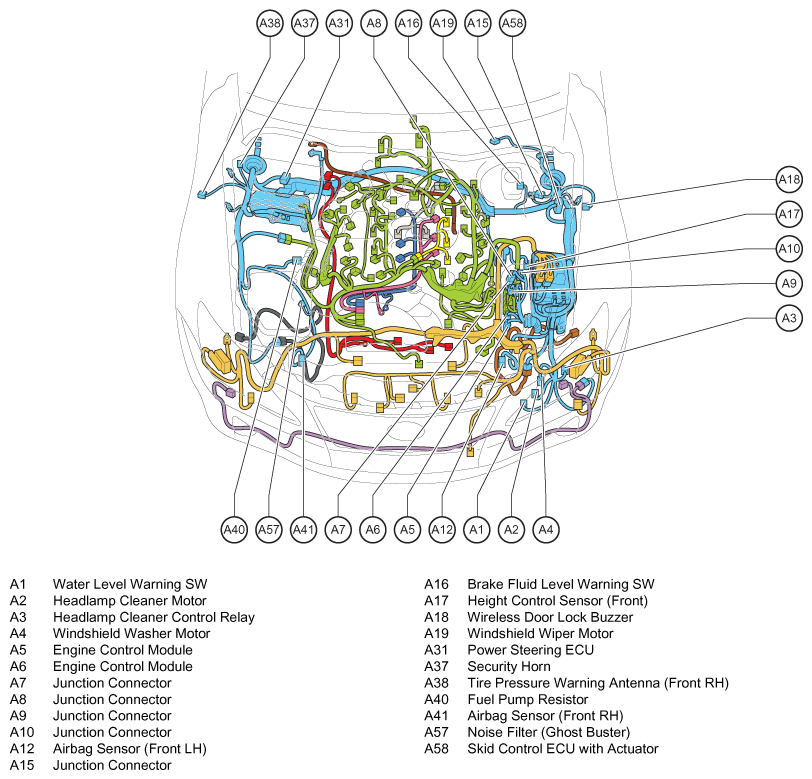

Fig 8: Engine Compartment Parts - 4GR-FSE (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
