Position of Parts in Body

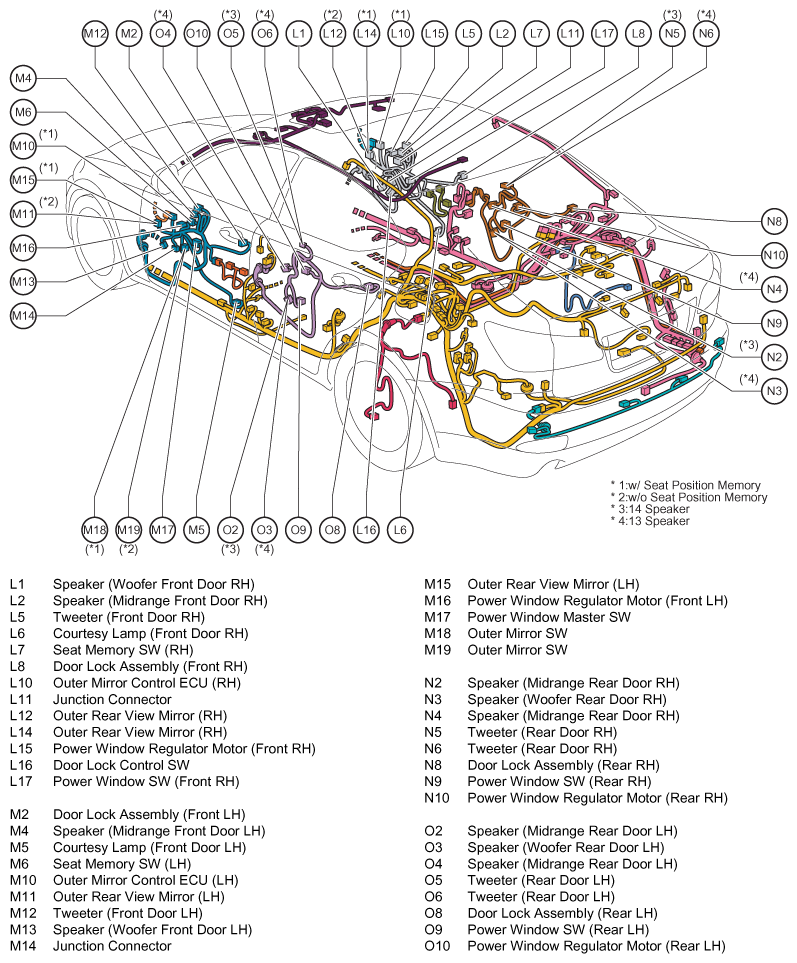

Fig 1: Body Parts (1 Of 4)
G07588727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

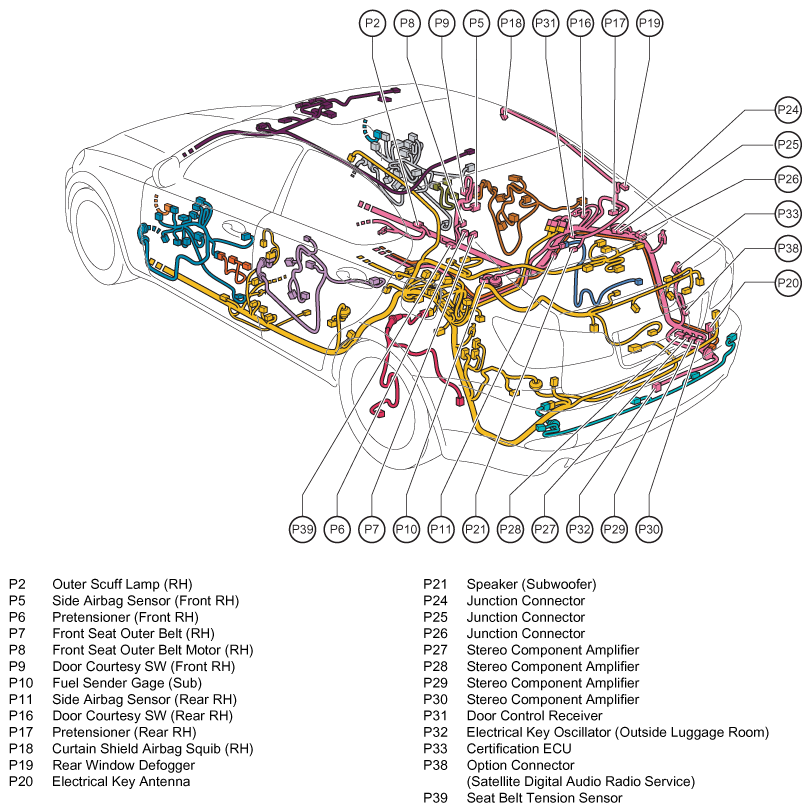

Fig 2: Body Parts (2 Of 4)
G07588728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

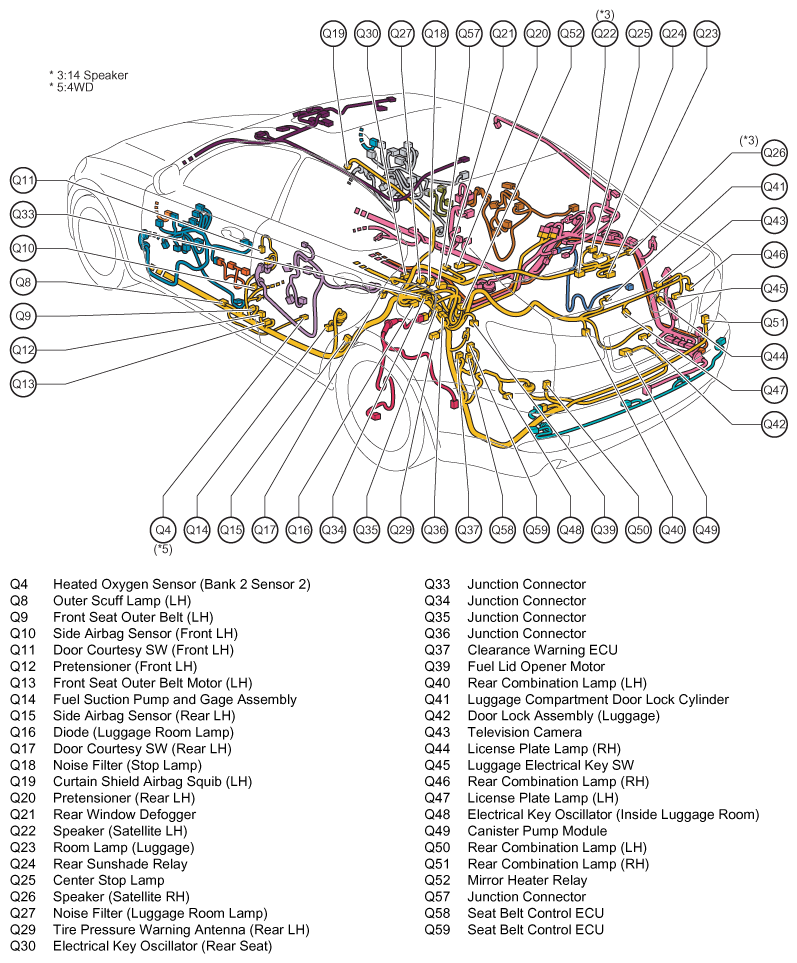

Fig 3: Body Parts (3 Of 4)
G07588729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

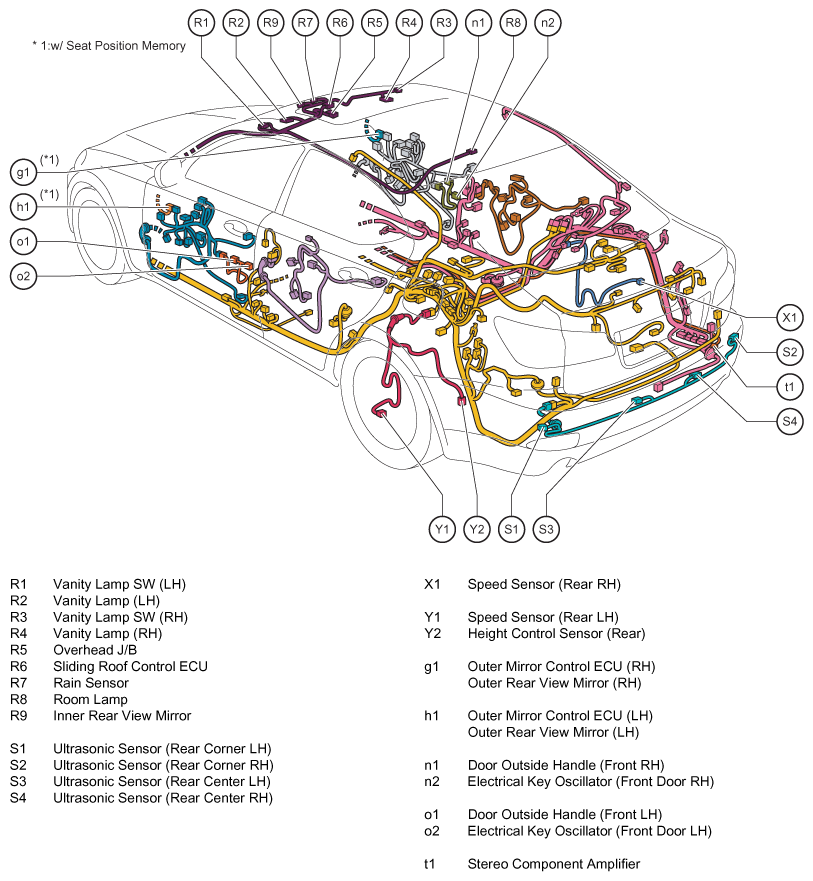

Fig 4: Body Parts (4 Of 4)
G07588730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
