FRONT PROPELLER SHAFT ASSEMBLY (for 4WD): Components: Illustration

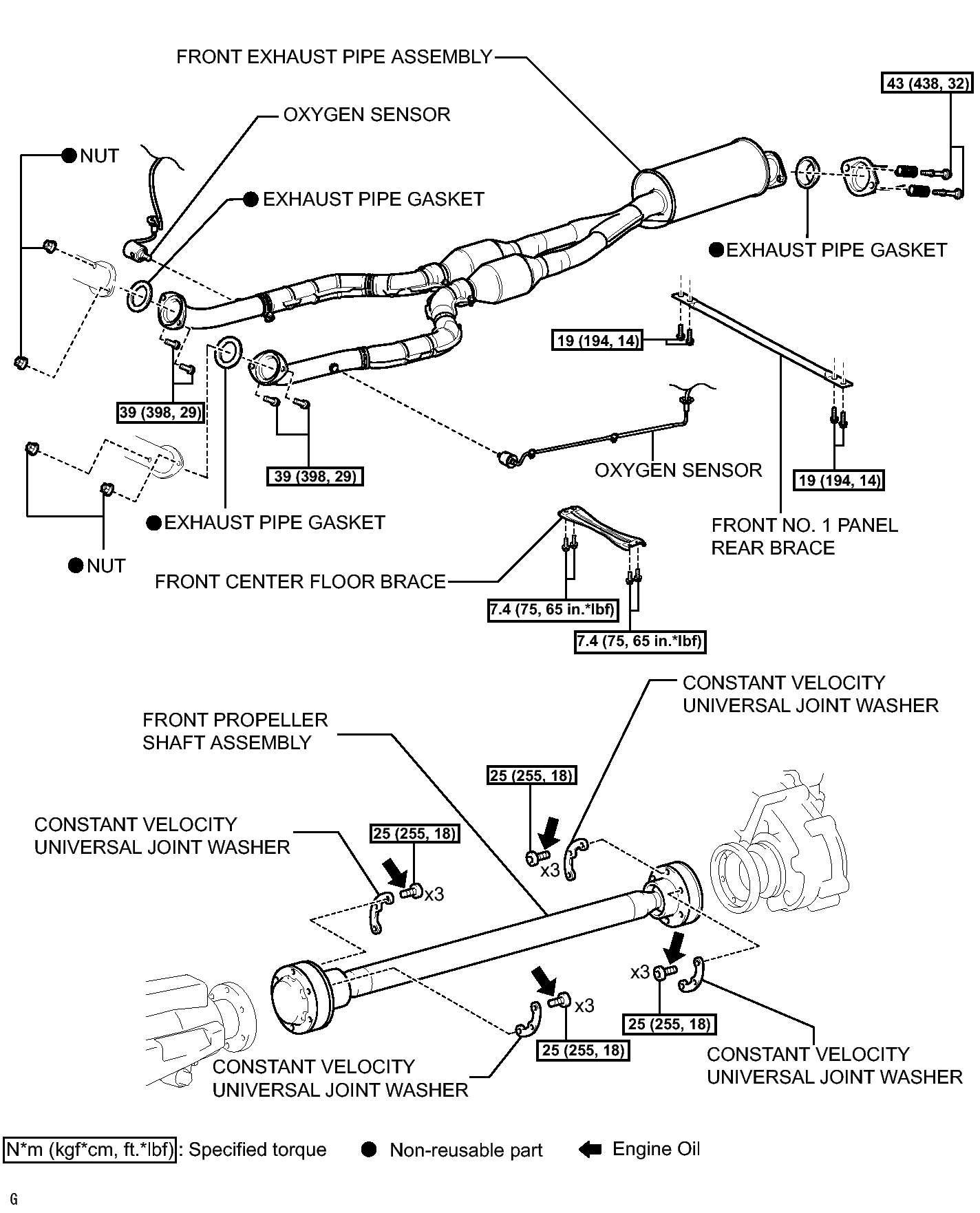

Fig 1: Identifying Front Propeller Shaft Assembly (For 4WD) Replacement Components With Torque Specifications
GTY112978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
