REAR DIFFERENTIAL CARRIER ASSEMBLY (for 4GR-FSE): Components: Illustration

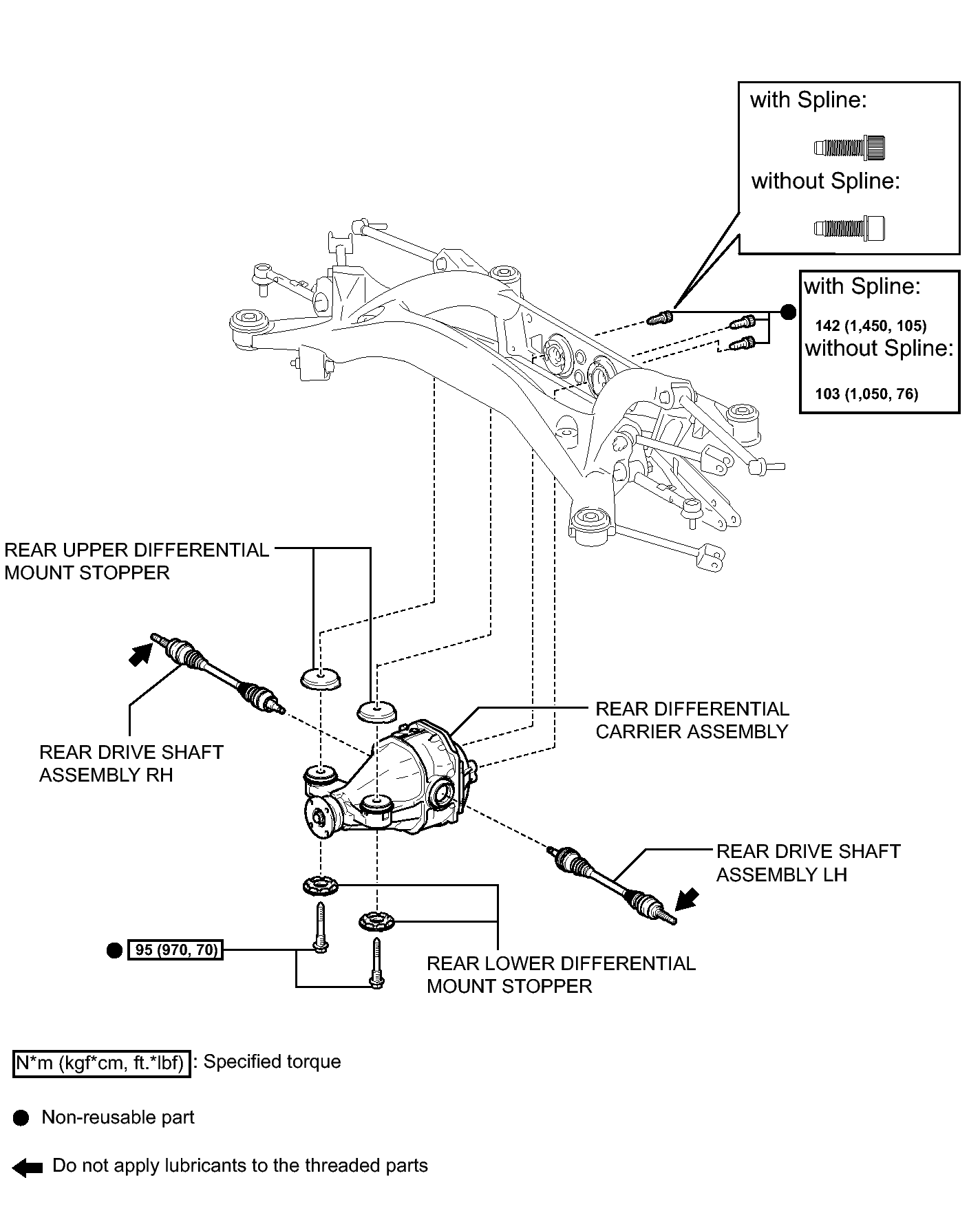

Fig 1: Identifying Rear Differential Carrier Assembly (For 4GR-FSE) Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Differential Carrier Assembly (For 4GR-FSE) Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

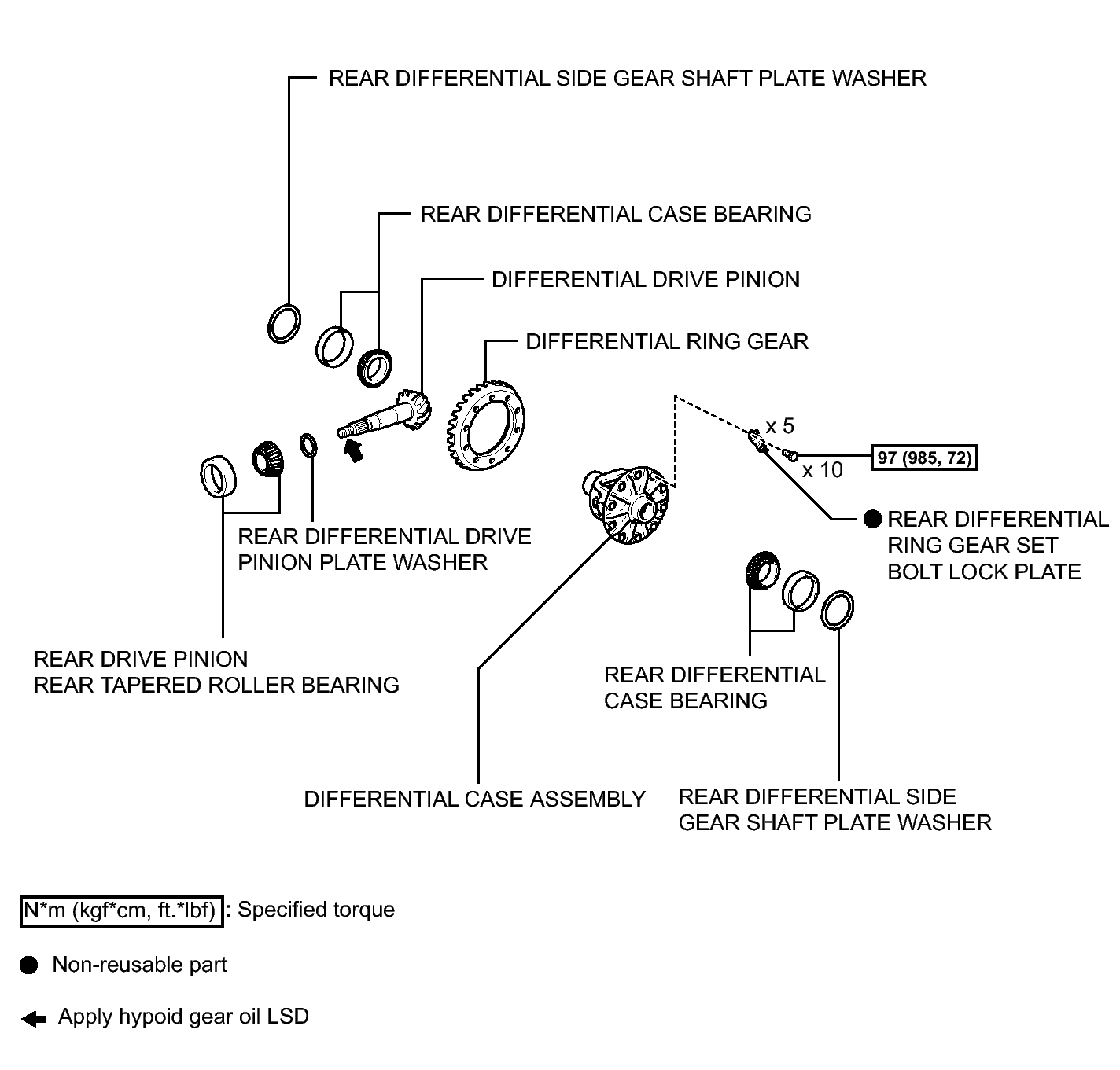

Fig 1: Identifying Rear Differential Carrier Assembly (For 4GR-FSE) Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

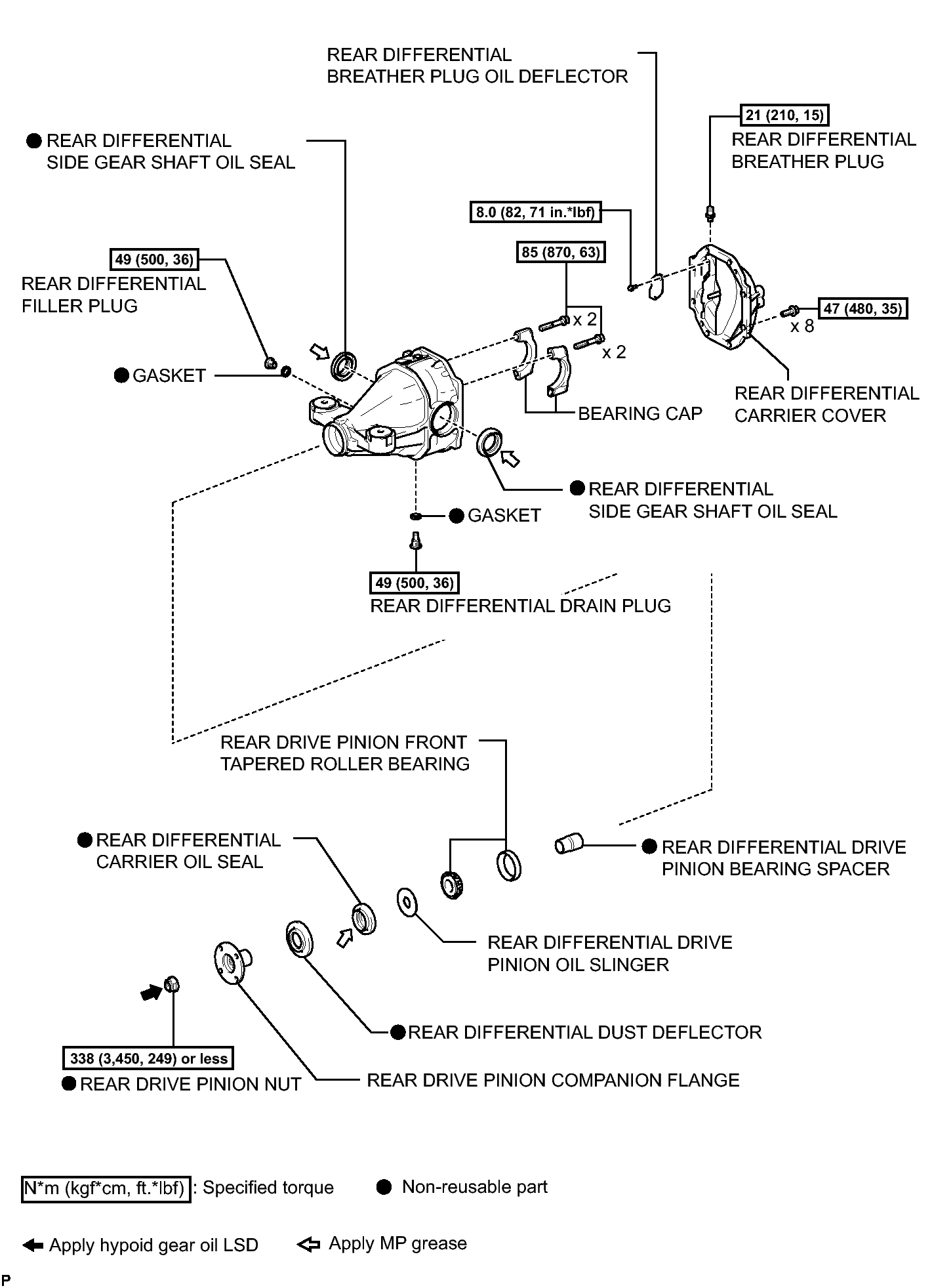

Fig 1: Identifying Rear Differential Carrier Assembly (For 4GR-FSE) Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Differential Carrier Assembly (For 4GR-FSE) Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
