Parking Brake Cable: Components: Illustration

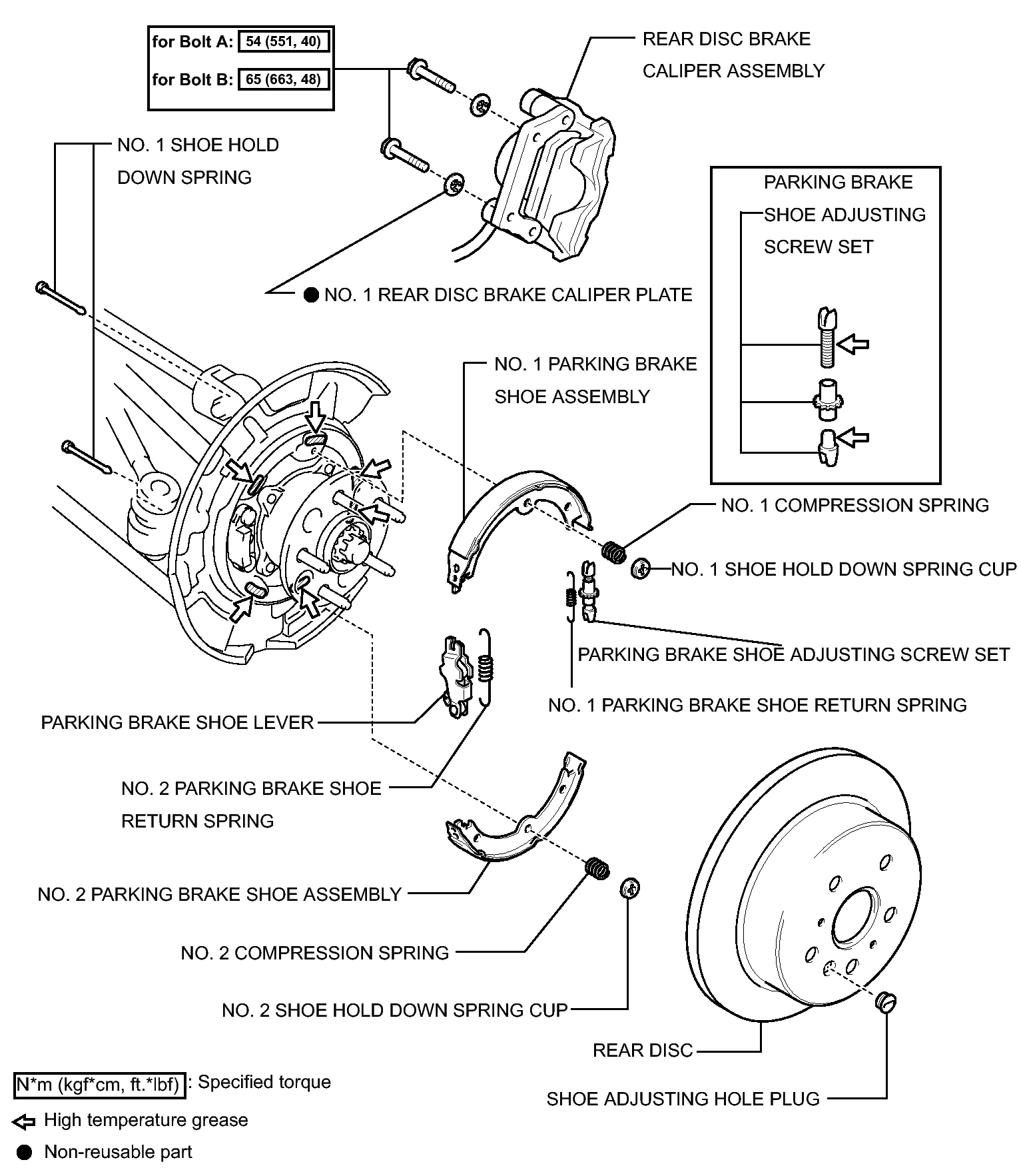

Fig 1: Parking Brake Cable Replacement Components (1 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Cable Replacement Components (2 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Cable Replacement Components (3 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Cable Replacement Components (9 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Cable Replacement Components (10 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Cable Replacement Components (11 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (12 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (13 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
