Parking Brake Assembly: Components: Illustration

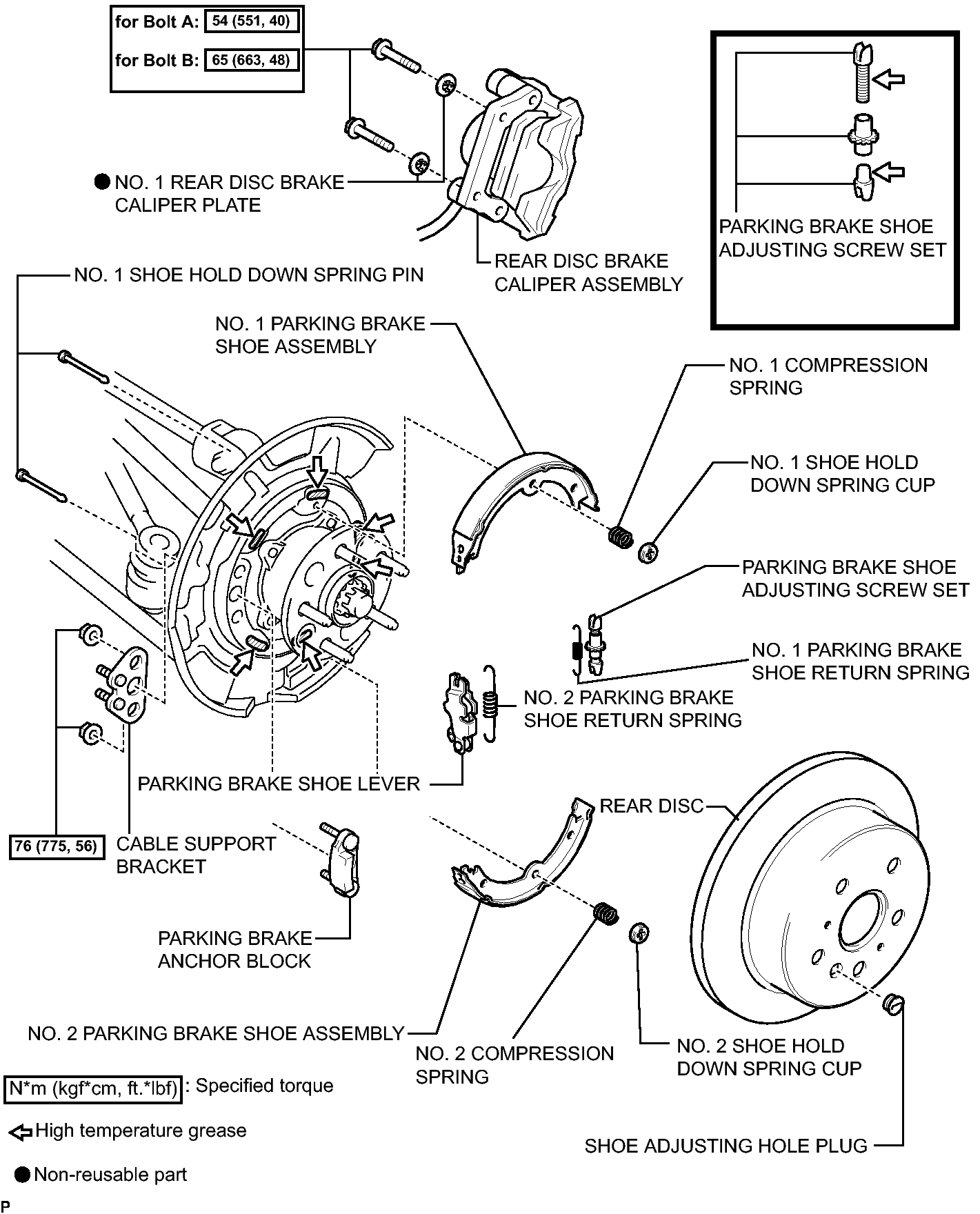

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications

GTY138434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
