Stop Light Switch: Components: Illustration

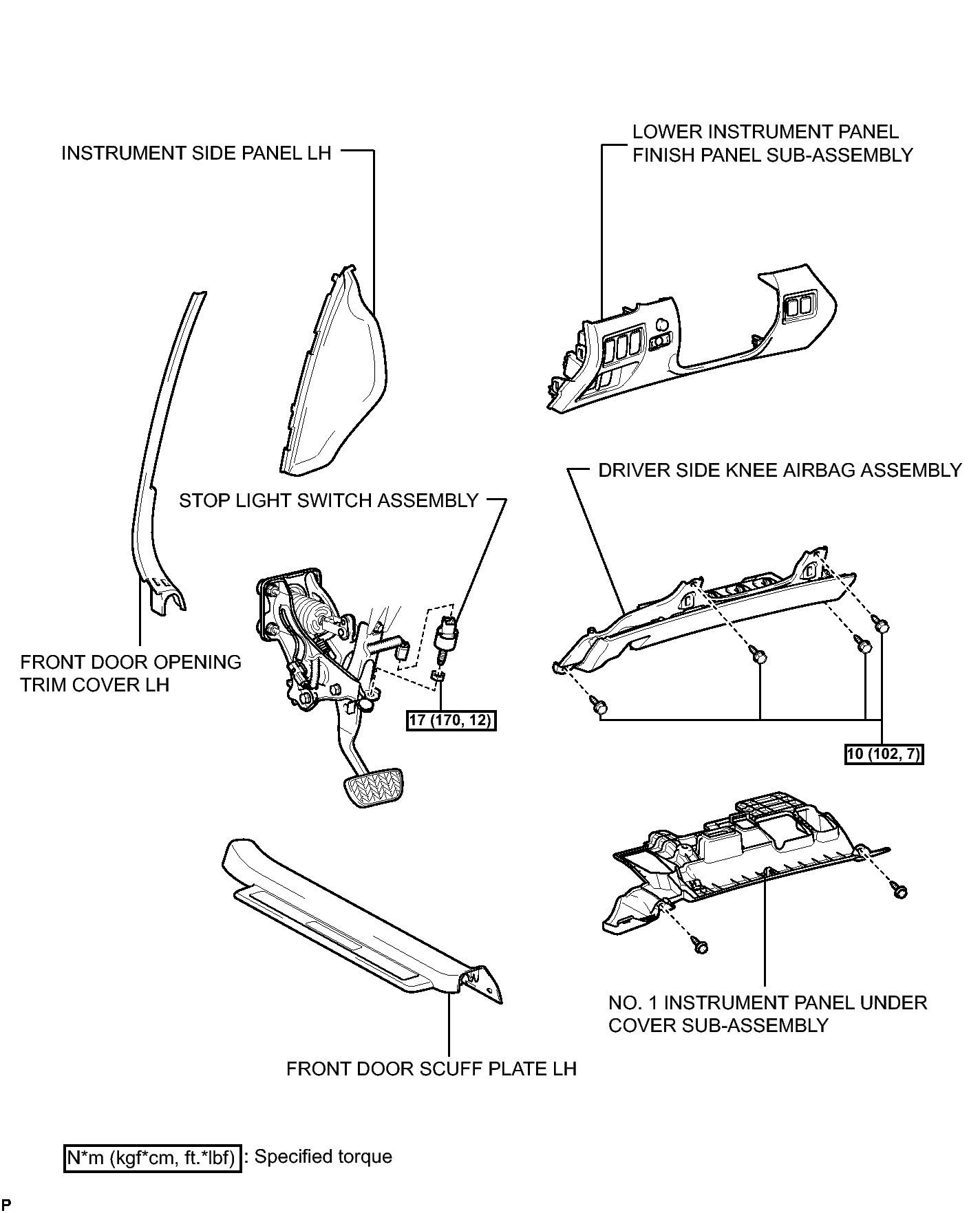

Fig 1: Identifying Stop Light Switch Replacement Components With Torque Specification

GTY113748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
