Wiper and Washer Switch Circuit: Wiring Diagram

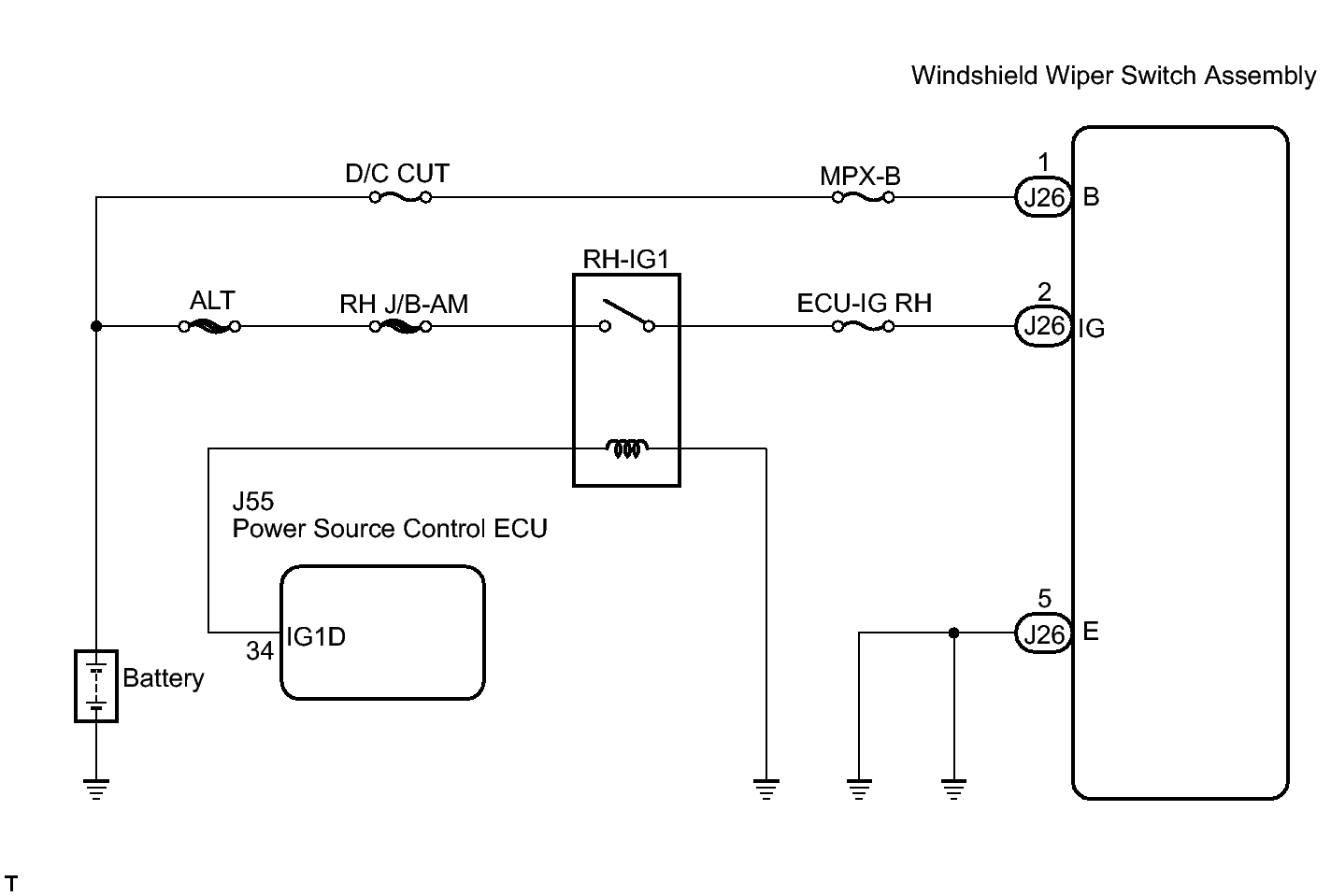

Fig 1: Wiper And Washer Switch - Wiring Diagram

GTY151003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
