Headlight Cleaner Motor and Relay Circuit: Wiring Diagram

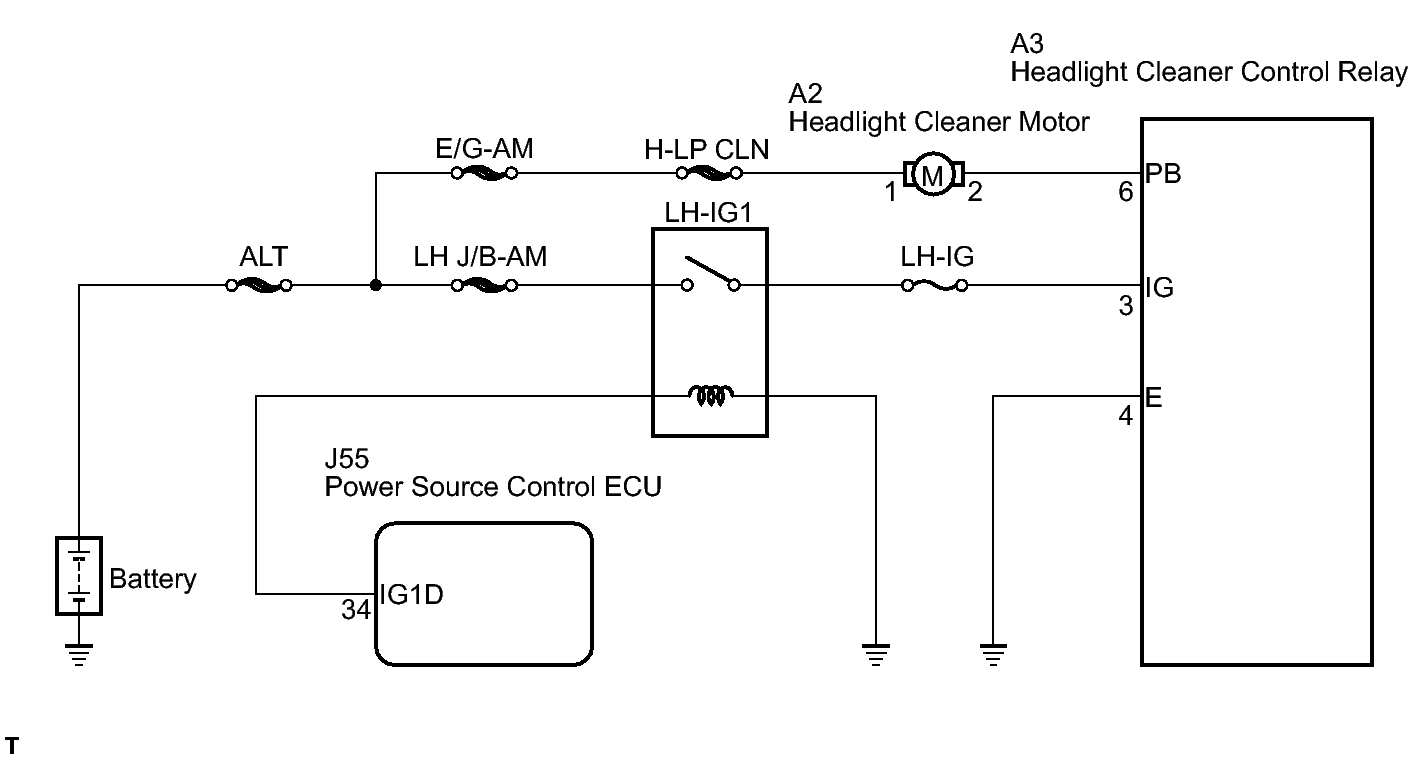

Fig 1: Identifying Headlight Cleaner Motor & Relay Wiring Diagram

GTY135910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
