Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

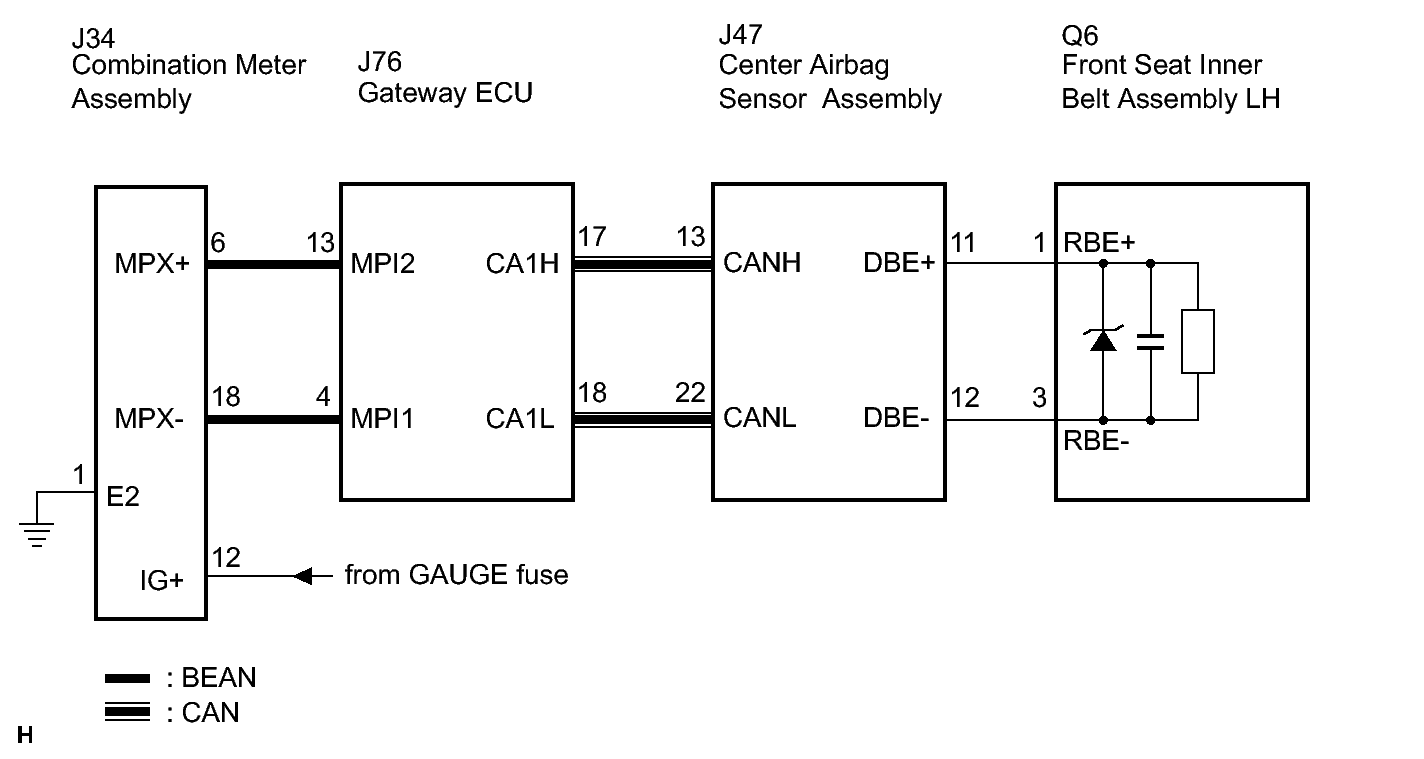

Fig 1: Driver Side Seat Belt Warning Light Wiring Diagram

GTY129482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
