Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

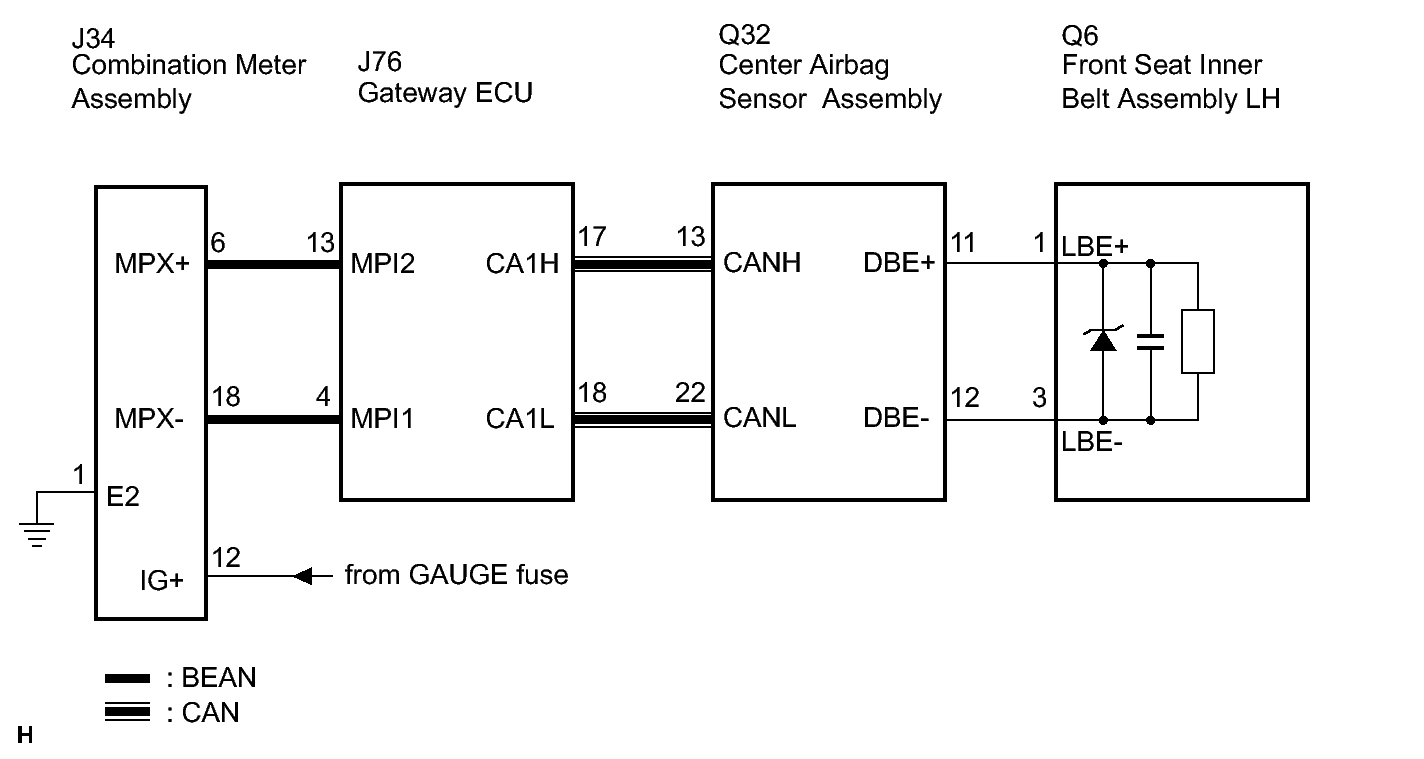

Fig 1: Center Airbag Sensor Assembly & Front Seat Inner Belt - Wiring Diagram

GTY129483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
