Parts Location: Illustration

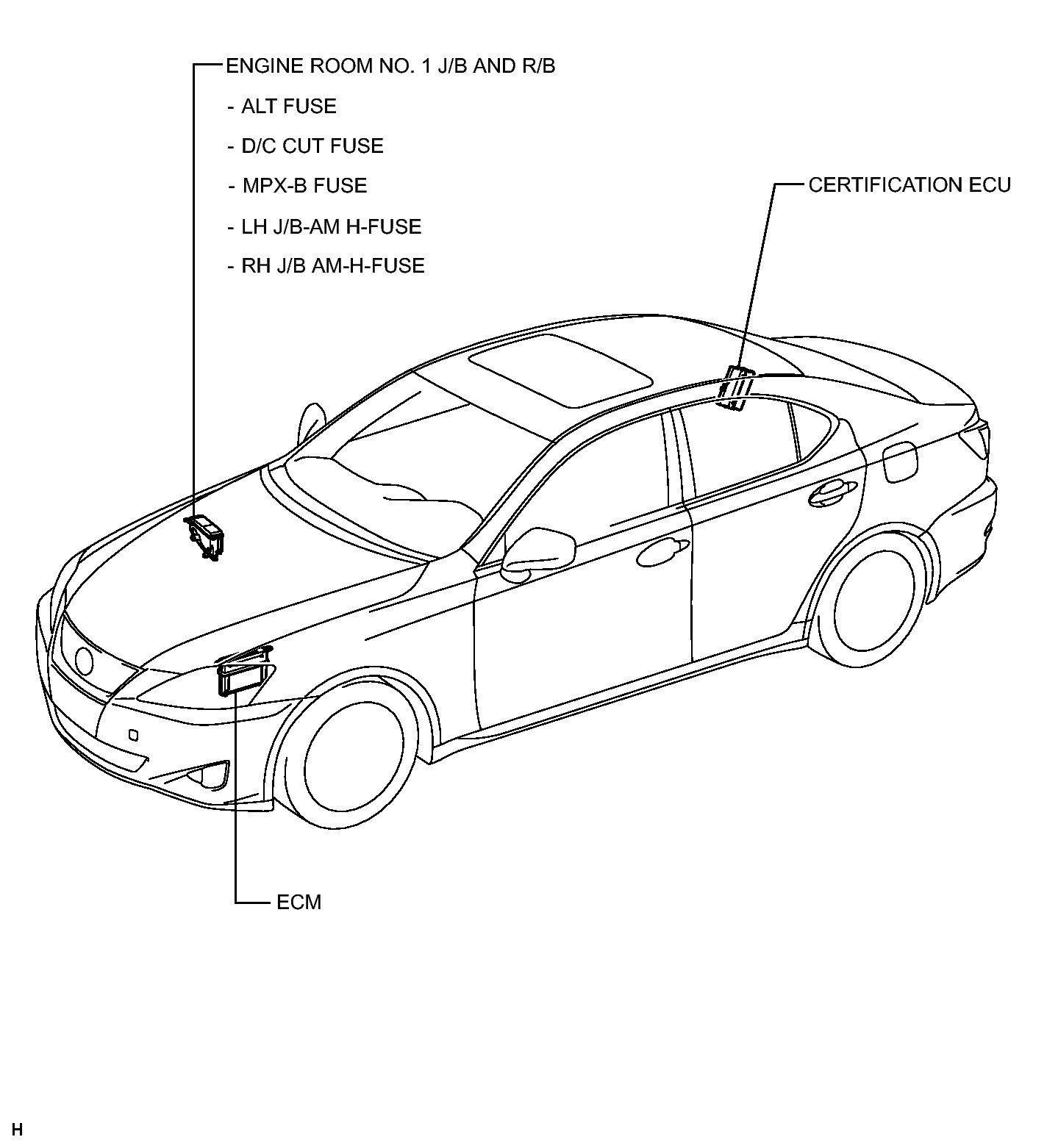

Fig 1: Identifying Front Power Seat Control System (W/ Seat Position Memory System) Components (1 Of 4)
GTY119165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

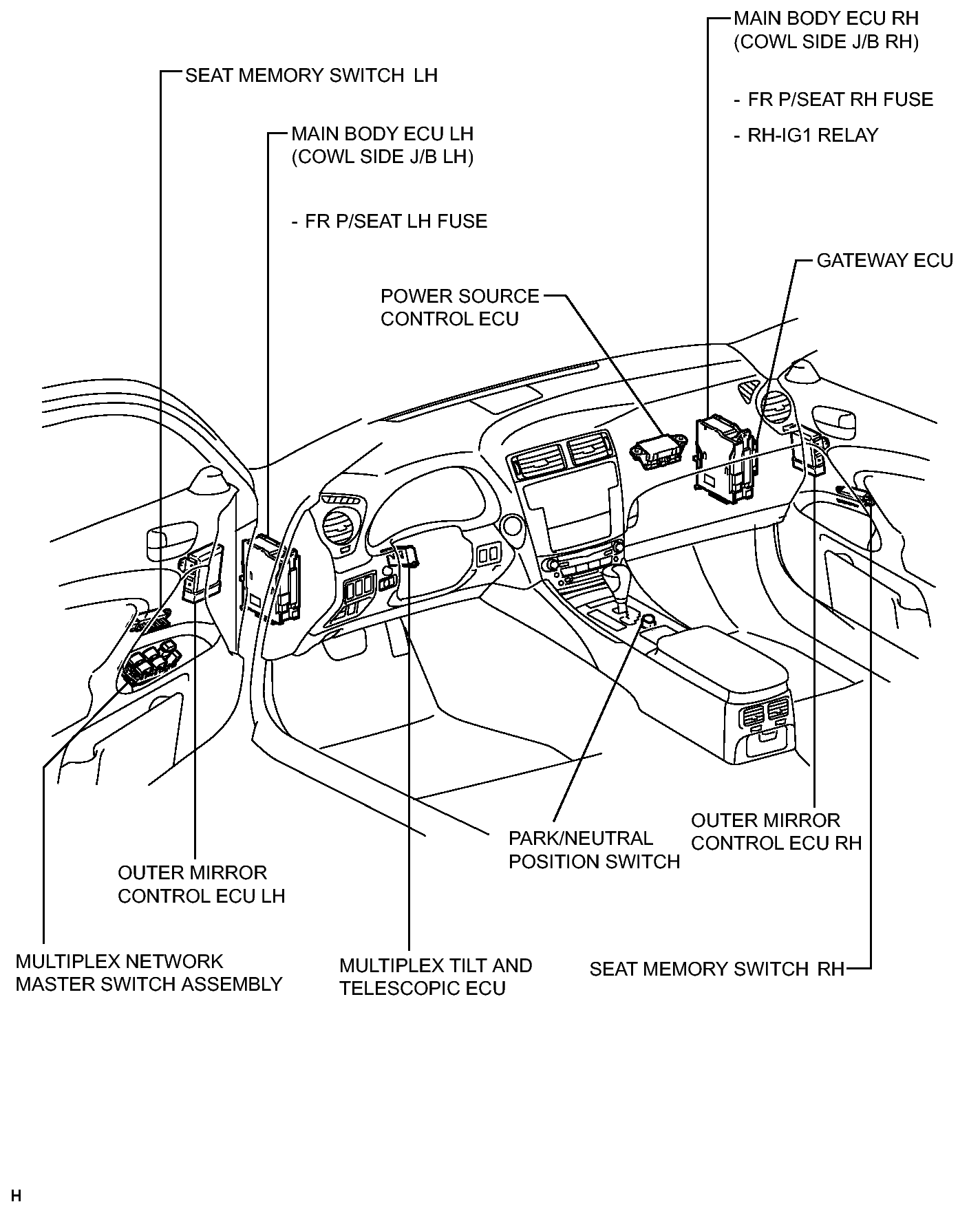

Fig 1: Identifying Front Power Seat Control System (W/ Seat Position Memory System) Components (2 Of 4)
GTY119166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

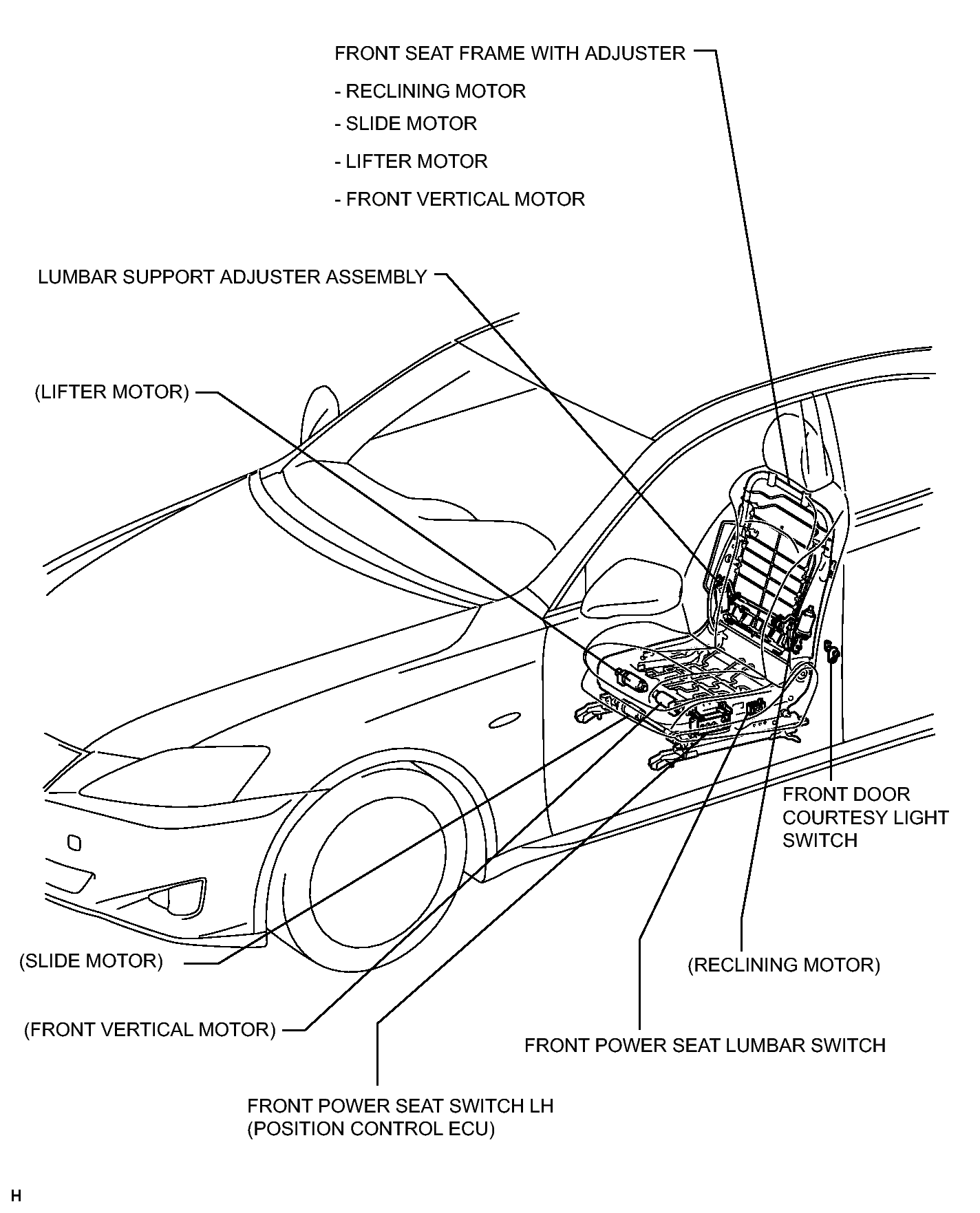

Fig 1: Identifying Front Power Seat Control System (W/ Seat Position Memory System) Components (3 Of 4)
GTY118812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

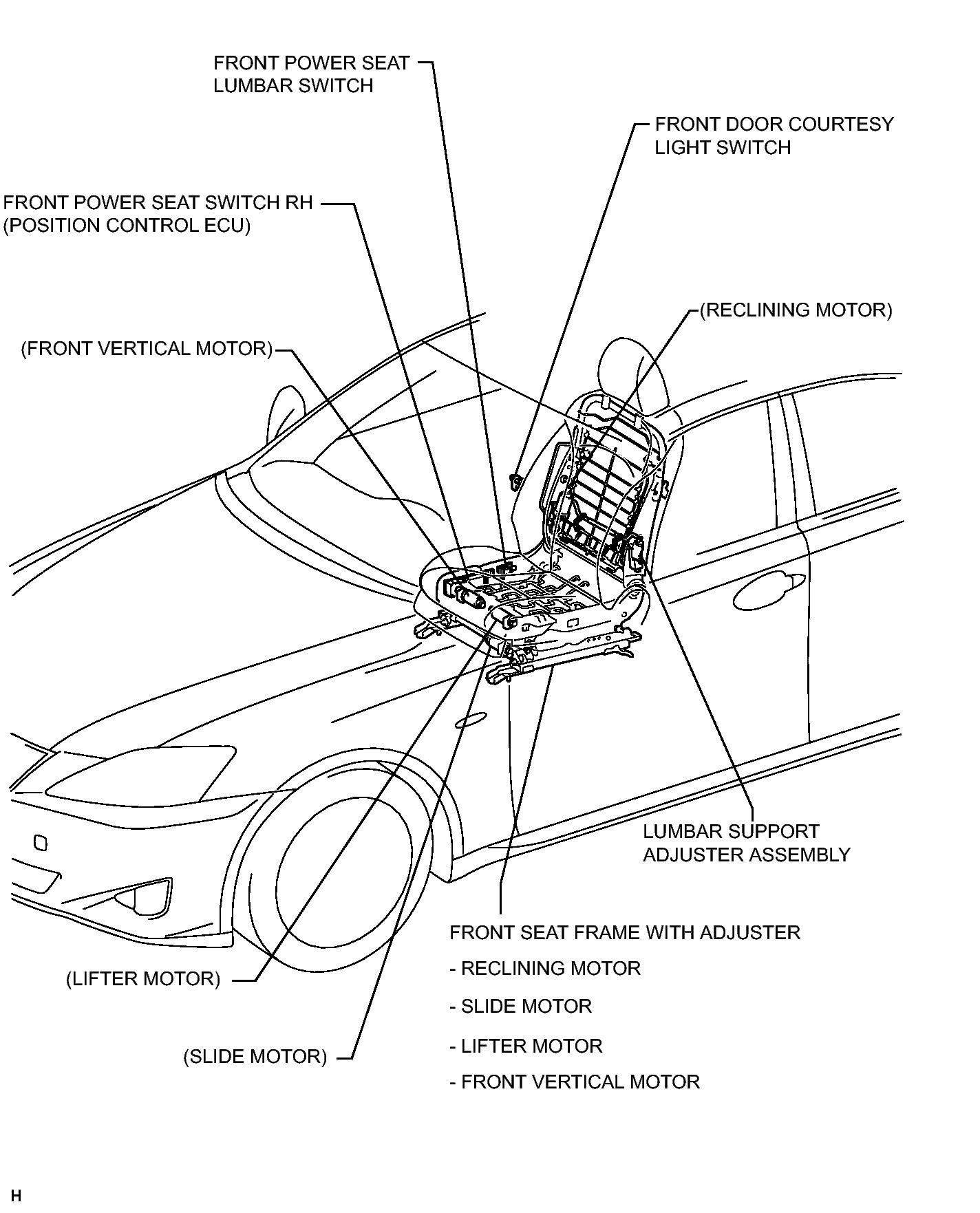

Fig 1: Identifying Front Power Seat Control System (W/ Seat Position Memory System) Components (4 Of 4)
GTY118813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
