AFS Ecu: Removal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)  . Refer to REMOVAL - Step 50
  2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)  . Refer to REMOVAL - Step 52
  3. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 27
  4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 29
  5. REMOVE HEADLIGHT SWIVEL ECU ASSEMBLY
    1. Disengage the 2 clips and disconnect the connector holder.

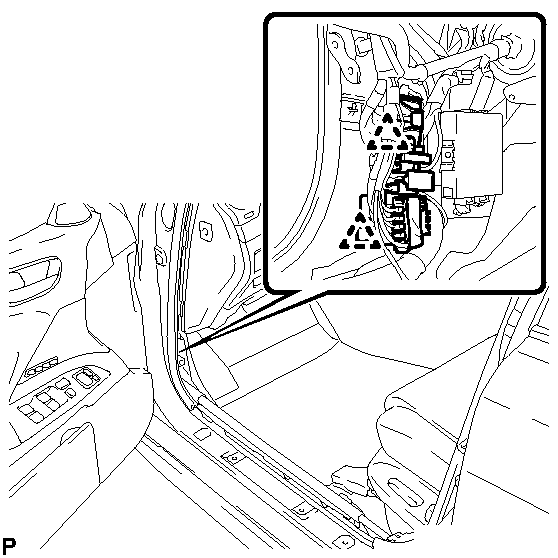

      Fig 1: Identifying Connector Holder With Clips
      GTY151211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and nut.

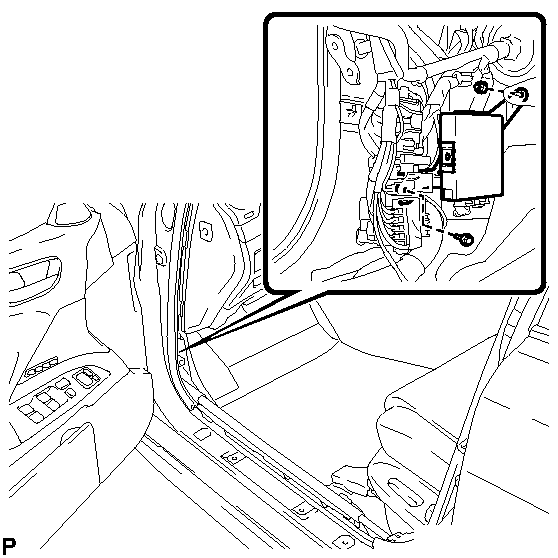

      Fig 2: Identifying Bolt And Nut
      GTY137374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connectors.

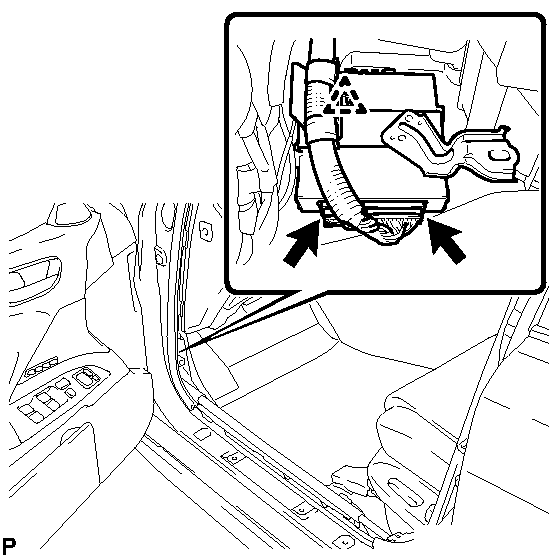

      Fig 3: Identifying Headlight Swivel ECU Assembly , Clamp, & Connector
      GTY137508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the clamp and remove the headlight swivel ECU assembly.
