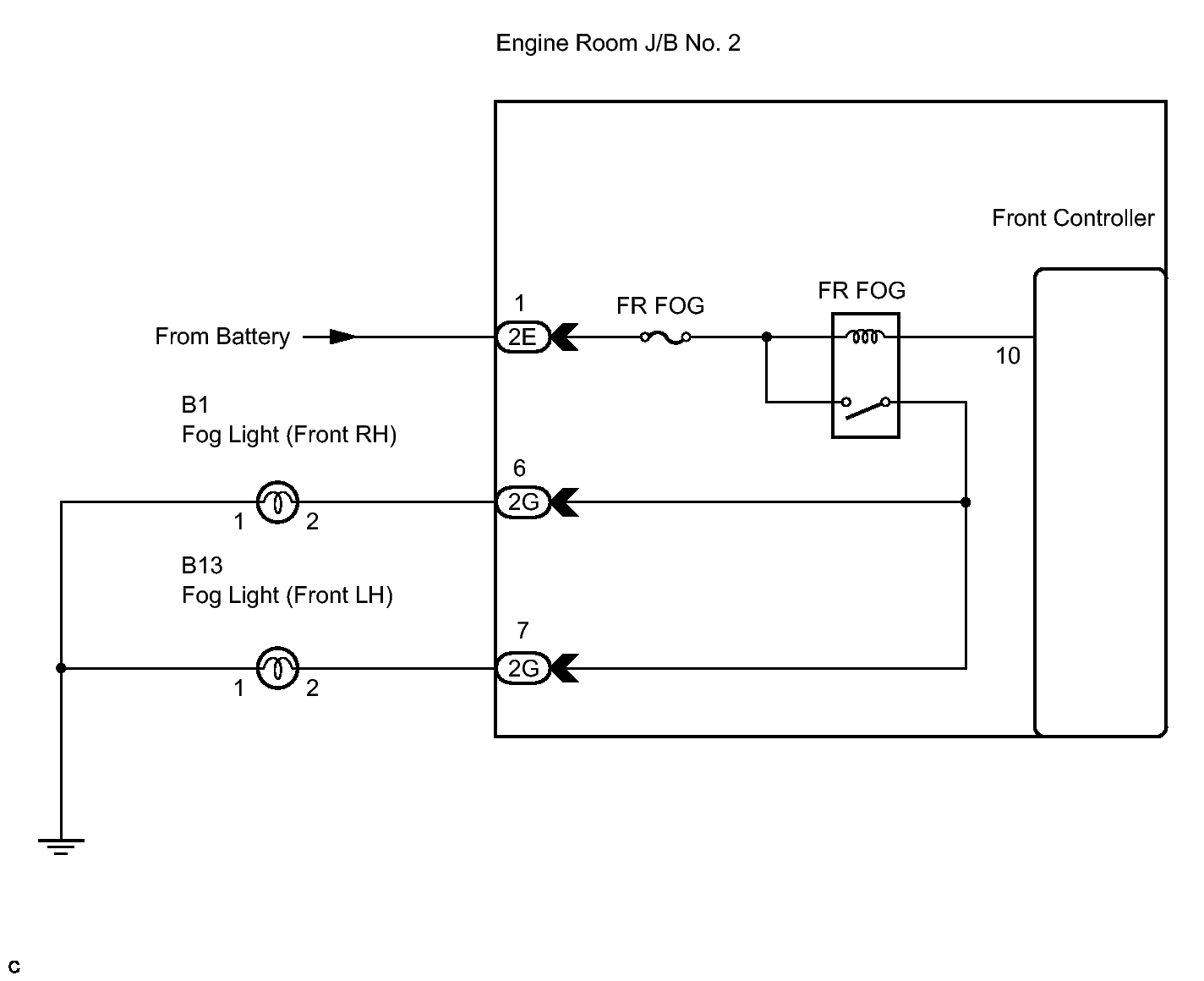

Home >> Lexus >> 2009 >> IS 250 RWD, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting (Diagnostic Codes & Circuit Tests) >> Lighting System >> Front Fog Light Circuit >> Wiring Diagram
