Rear Sunshade Shift-linked Function does not Operate when Shift Lever is Moved to R Position: Wiring Diagram

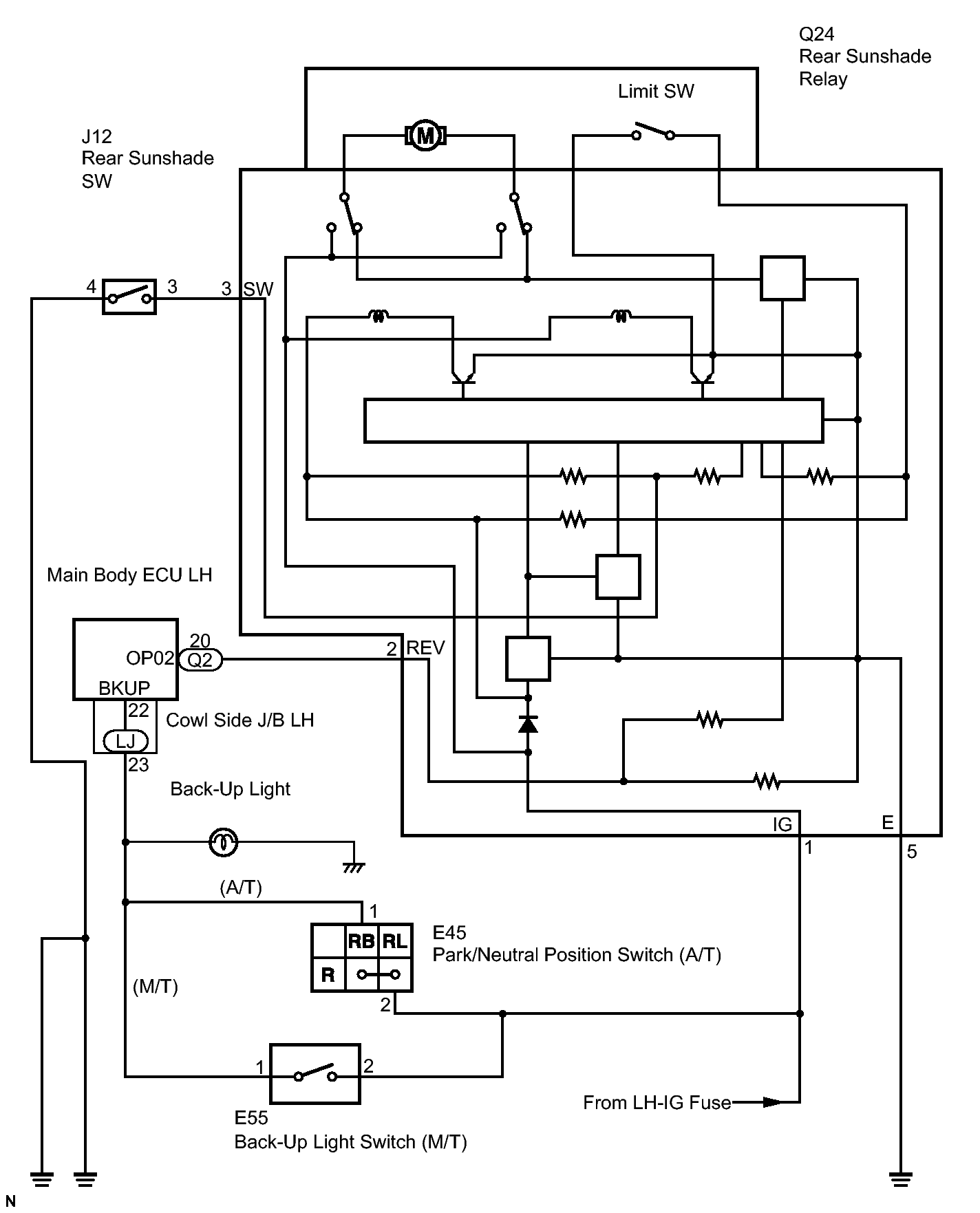

Fig 1: Rear Sunshade Relay, Back-Up Light Switch (M/T), & Park/Neutral Position Switch (A/T) - Wiring Diagram
