Glove Box Light: Components: Illustration

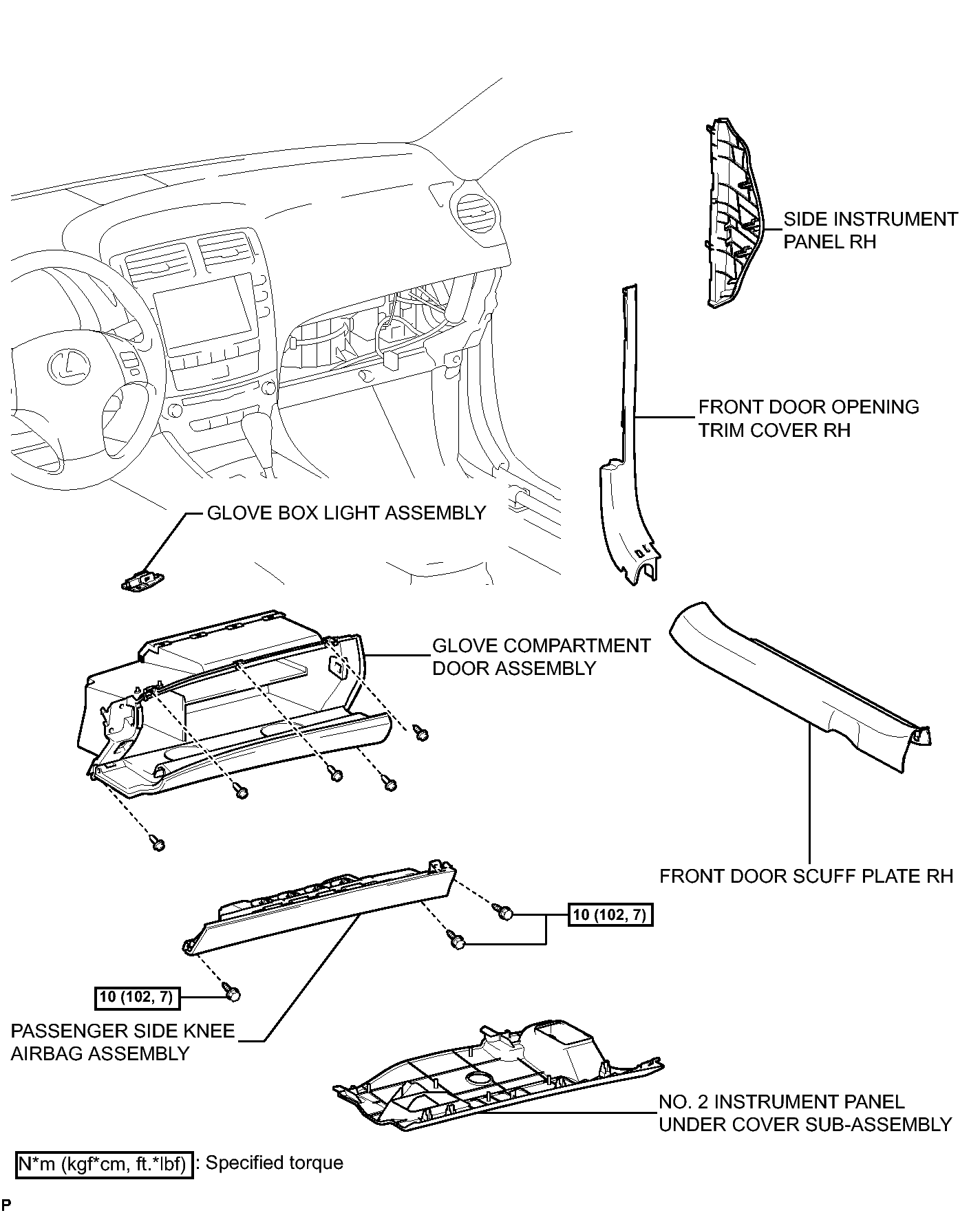

Fig 1: Identifying Glove Box Light Replacement Components With Torque Specifications

GTY151403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
